CAB PS5 - Peel-off Adapter PS5 Modes

94 Operation
4.2 Peel-off Adapter PS5
PS5 can be operated in three different modes depending on the jumper
setting and the external circuit.
4.2.1 Mode1a-StartingPrintandConrmingLabelRemovalwithTwo
Signals

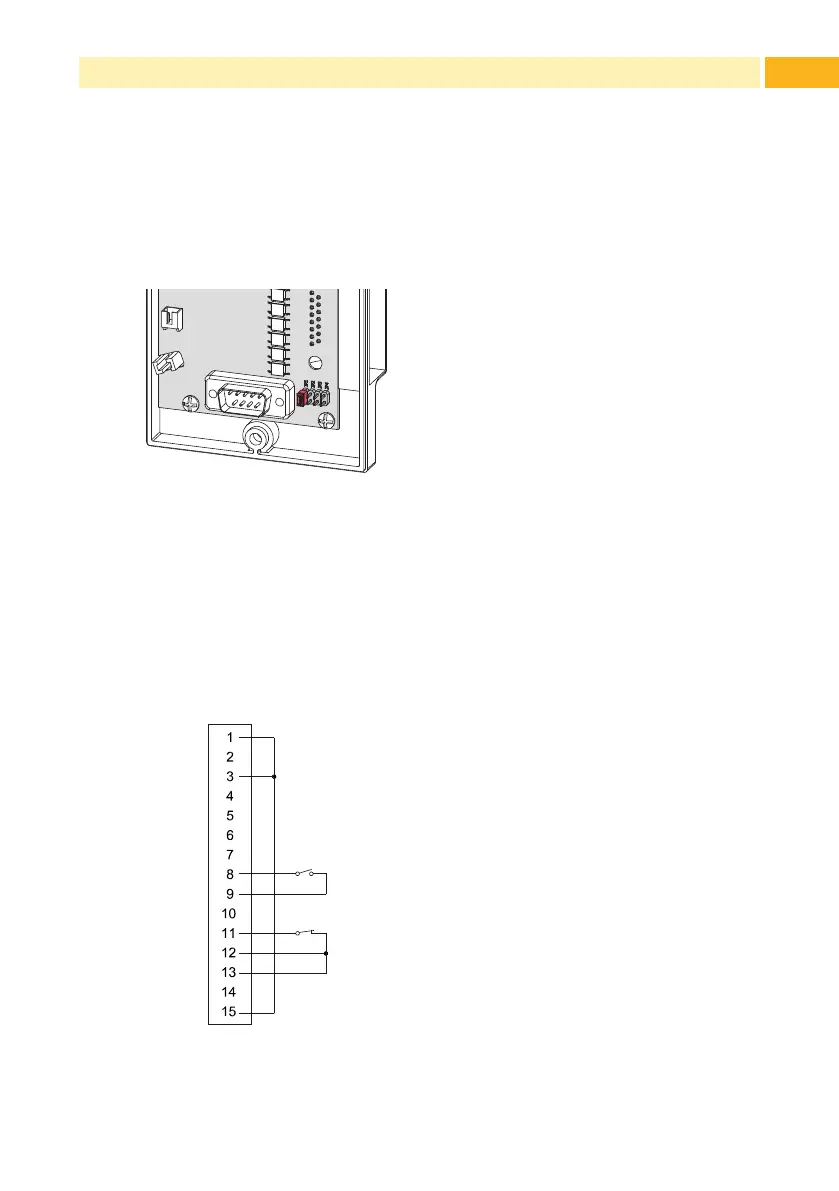

Figure 2 Jumper at position JP1
 Send a print job.
 Activate XSTART.
Therstlabelwillbeprintedantransportedtothepeelposition.
 Remove the label.
 ConrmthelabelremovalwithsignalXETE.
 Activate XSTART to start the next cycle.
XSTART
XFEH
XETE
XESP
XEDG
XDNB
XEDST
GND
RXSTART
RXFEH
RXETE
GND
STA
RUEL
P24
Figure 3 External minimal circuit at the peripheral interface for mode 1a
