CAB PS5 - Peripheral Interface; Pin Assignment

176 Peripheral Interface
6.1 Pin Assignment
Pin 8
Pin 1
Pin 15
Pin 9

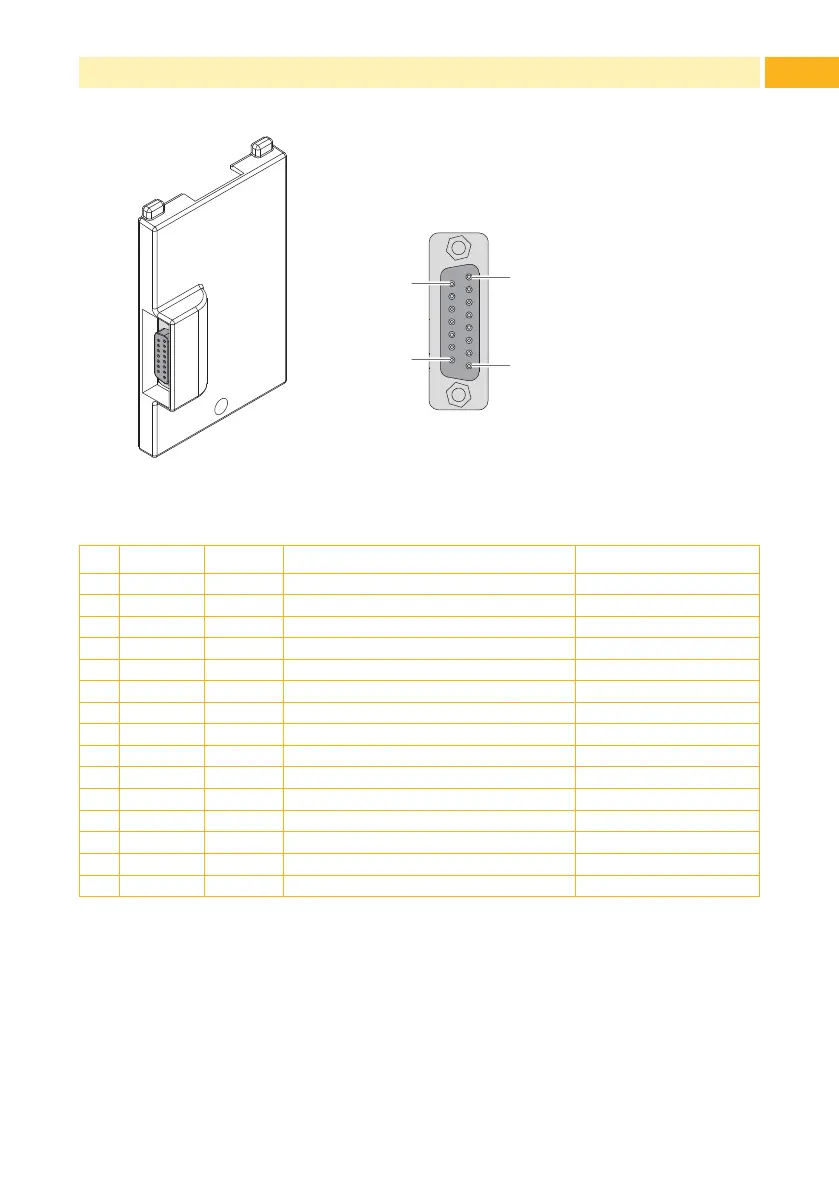

Figure 16 Peripheral interface PS5 / PS6
Pin Signal Direction Standard Function Special function
1 XSTART Input Start
2 XFEH Input External error
3 XETE Input Label has been taken
4 XESP Output Label in peel position Control bit 3
5 XEDG Output No print job available Control bit 1
6 XDNB Output Printer not ready Control bit 2
7 XEDST Output Print has been started Control bit 0
8 GND Ground (0V)
9 RXSTART (Input) Start (reverse line)
10 RXFEH (Input) External error (reverse line)
11 RXETE (Input) Label is taken (reverse line)
12 GND Ground (0V)
13 STA Input Start signal enabled
14 RUEL Output Reverse line (for all outputs)
15 P24 (Output) Operating voltage +24V, Si T 100mA
Table 5 Pin assignment peripheral interface
