19
Pin Signal Description Activation /
Active State
10 RXFEH External error (reverse line)
11 RXETE
Label is taken (reverse line)
12 GND
Ground (0V)
13 STA
Start signal enabled
XSTART will only be evaluated when STA is active.
Connecting Pin 13
with Pin 12 (GND)
14 RUEL
Reverse line (for all outputs)
15 P24
Operating voltage +24 V, Si T 100 mA
ATTENTION ! Output !!!
Do not connect any external voltage to Pin 15

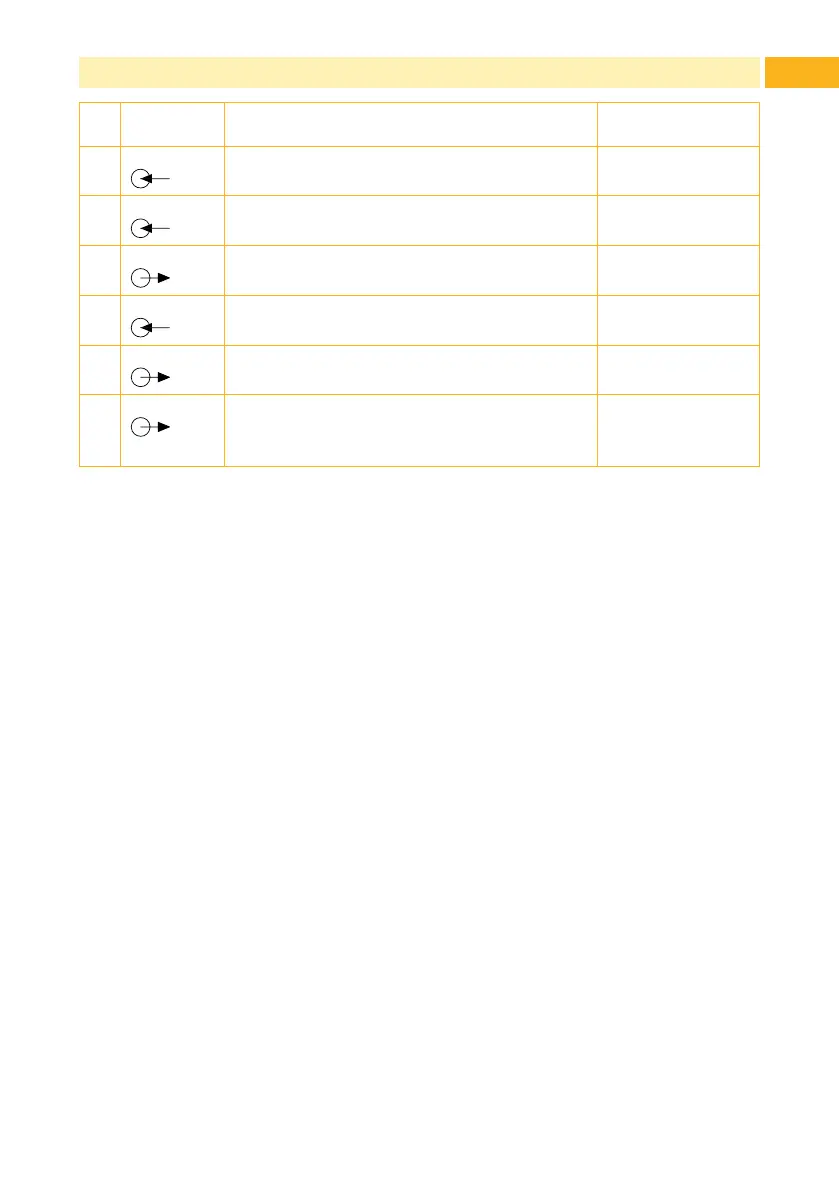

Table 6 Signals of peripheral interface PS5, PS6
6 Peripheral Interface
