22 22
5 Adjustments
5.2 Adjusting the Printing Mechanism
Major adjustment of the printing mechanism beyond format-based settings is only required if the printhead assembly
has been removed or parts in this area have been replaced. Excluded from this is the replacement of the printhead,
after which readjustment is generally not required.
The following print quality imperfections may indicate maladjustment of the printing mechanism:
• Print image too light
• Print image is spotty
• Print image lighter on one side
• Horizontal lines not parallel to the horizontal label edges
• Clear lateral drift of the transfer ribbon
Notice!
Print image errors can also arise from wrinkling of the transfer ribbon. This is why you should check the
transfer ribbon feed path and the head locking system for correct adjustment before making adjustments to
the printing mechanism Operator's Manual.
The adjustment of both print unit can be carried out in the same manner and comprises the following procedures in
the order specied:
1. Prepare the label printer for adjustment 5.2.1 on page 22.
2. Adjust the position of the printhead 5.2.2 on page 23.
3. Adjust the printhead pressure 5.2.3 on page 24.
4. Adjust the transfer ribbon feed path 5.2.4 on page 25.
5. Perform a nal test 5.2.5 on page 25.
5.2.1 Preparing the Printer for Adjustment
2
3
4
5
1
6

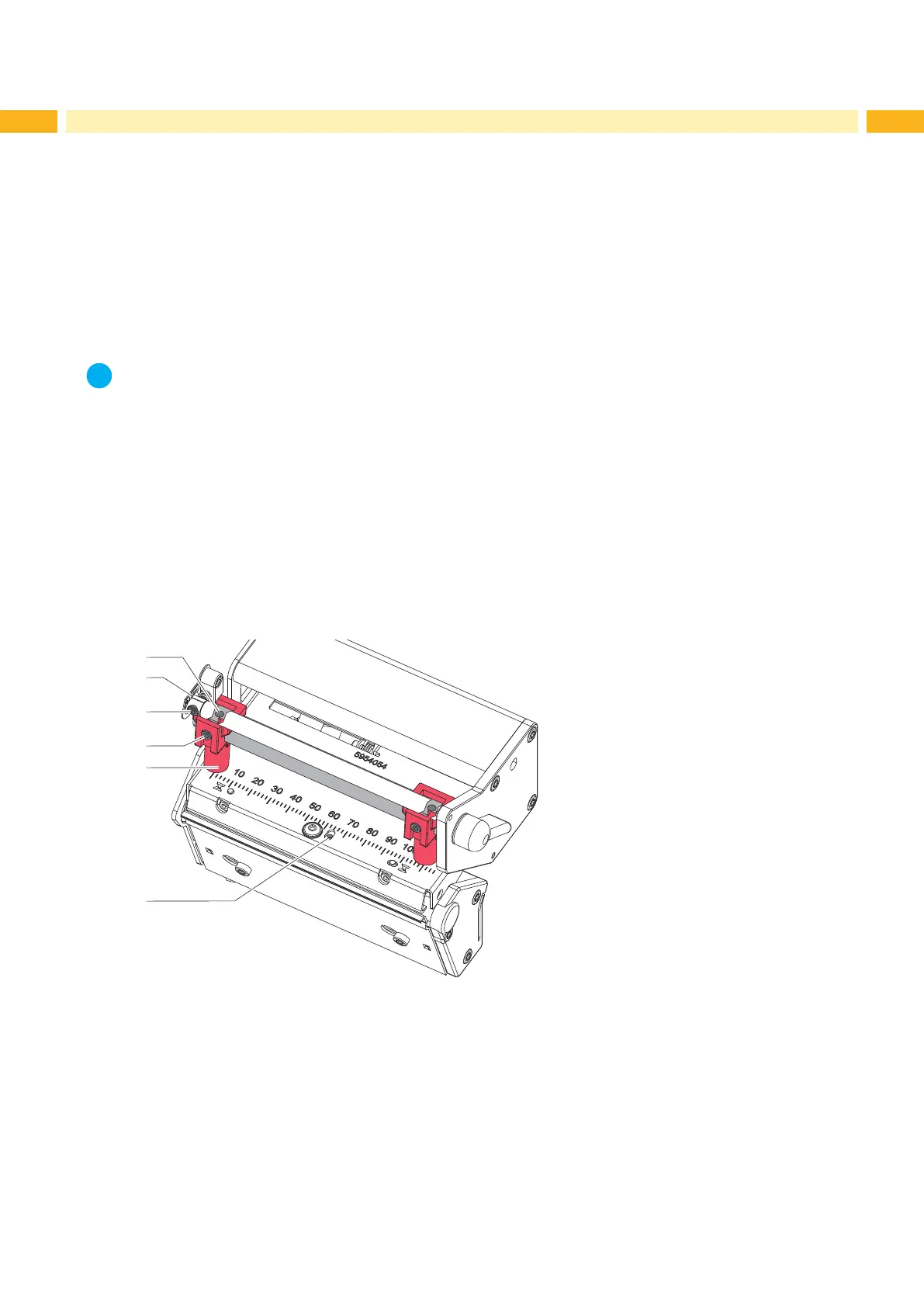

Fig. 20 Preparing the printer for adjustment
1. Load labels and transfer ribbon which extend across the entire printing width.
2. In the printer conguration, set the Heat level parameter to -5 and the Print speed parameter to 100 mm/s.
3. Move the transfer ribbon deection to the central position (2) with the screw (3).
4. Loosen screws (4) and position the plungers (5) in such a way that the adjustment screws are accessible through
the holes (1) of the square axis.
5. Loosen the screw (6) for the printhead bowing with an Allen key (1.5 mm) and turn it counterclockwise until turning
becomes perceptibly easier. This should occur after a maximum of a half a rotation.
6. Continue with the adjustment of the printhead position 5.2.2 on page 23.
