23
5.2.2 Adjusting the Printhead Position
In order to achieve the best possible print image the following printhead settings are necessary:
• Align the heating line with the highest point of the print roller. Density of the print image is the greatest at this
point.
• Set the parallelism of horizontal lines with the edge of the label.
Attention!
The printhead assembly can be damaged.
Attempting to adjust the printhead when the xing screws (3) are tight can lead to defects at the printhead
assembly.
Always loosen the xing screws (3) before adjusting the printhead.
2a 31a 2b 1b
2b
1b
2a 53 2b3
2b
3
4
5

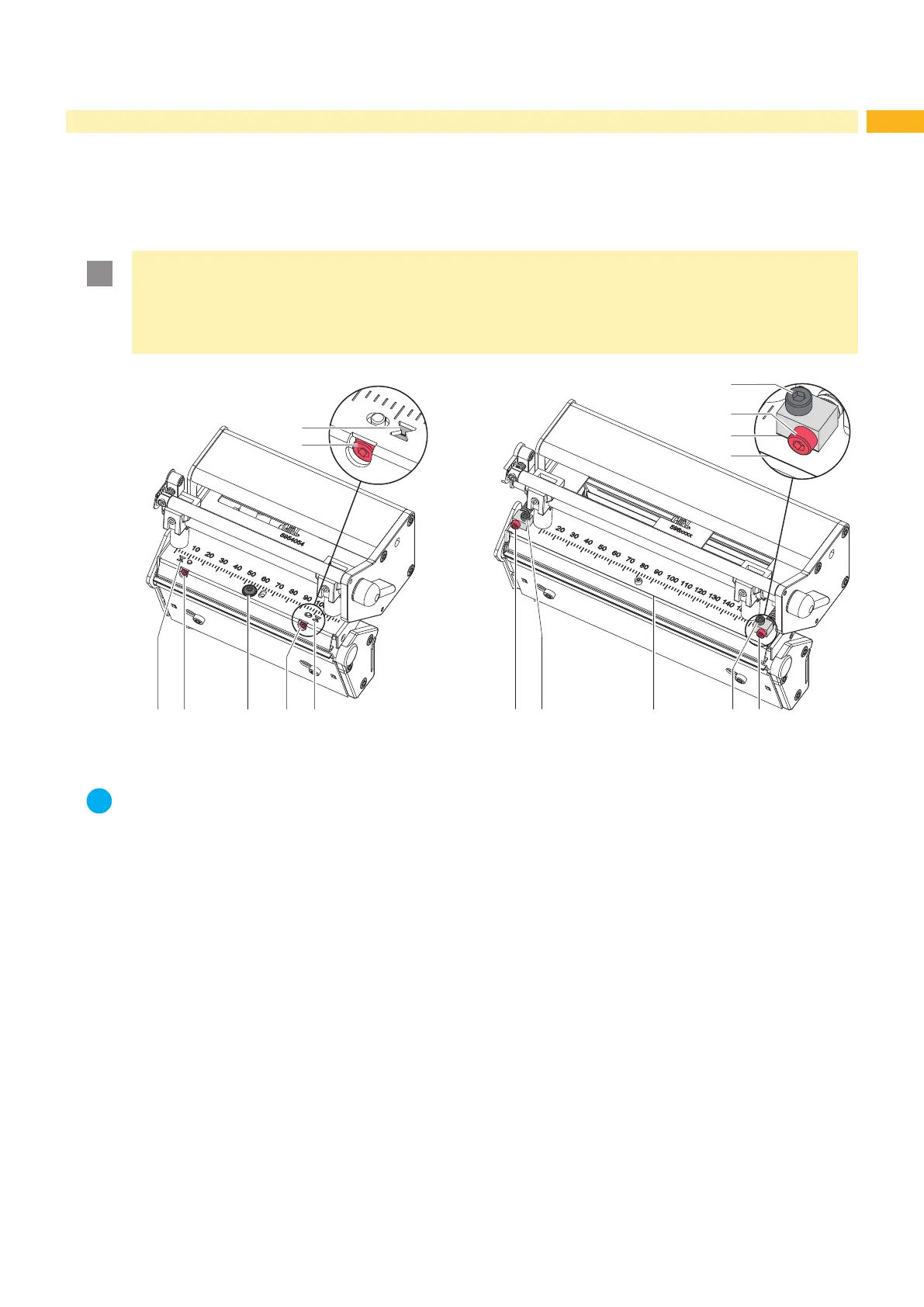

Fig. 21 Adjusting the printhead position (left side XC4, right side XC6)
Notice!
Open and close the printhead lock after each step of the adjustment.
1. Check the alignment of the printhead by printing test labels with horizontal lines - the lines must be parallel to the
front edge of the labels.
2. If the printhead is not aligned properly, loosen the screw (3) about one quarter turn.
3. Use the screws (2) to align at XC4 the lines on the printhead with the tips of the grooves (1), at XC6 the front
edges of the slides (4) to the front edge of the printhead mounting bracket (5).
- Screw (2a) effects the inner half of the printhead, and screw (2b) the outer half.
- Turning clockwise moves the printhead at XC4 forward, at XC6 backward.
4. Create print samples with the test function Test grid ( Conguration Manual) or a similar print pattern.
5. If the horizontal lines in the test grid are not parallel with the label edges, adjust the parallelism with the screws
(2).
6. Set the best possible image quality by maintaining parallelism via turning the screws (2a) and (2b) in an alter-
nating fashion.
Differences in the density between the two sides are still permissible.
7. Tighten the screws (3).
8. When the parallelism of the printhead is set, continue with the adjustment of the printhead pressure
5.2.3 on page 24.
5 Adjustments
