4 Replacing Assembly Units
4.1 Replacing the Printhead
4.1.1 Replacing the Printhead XC4
The printhead of the label printer can be replaced without the need for ne adjustment. The printhead must be
replaced if worn.
1
2
3
4
6
4
6
5
1 Printhead
2 Plug connection
3 Plug connection
4 Screw
5 Printing line
6 Pins

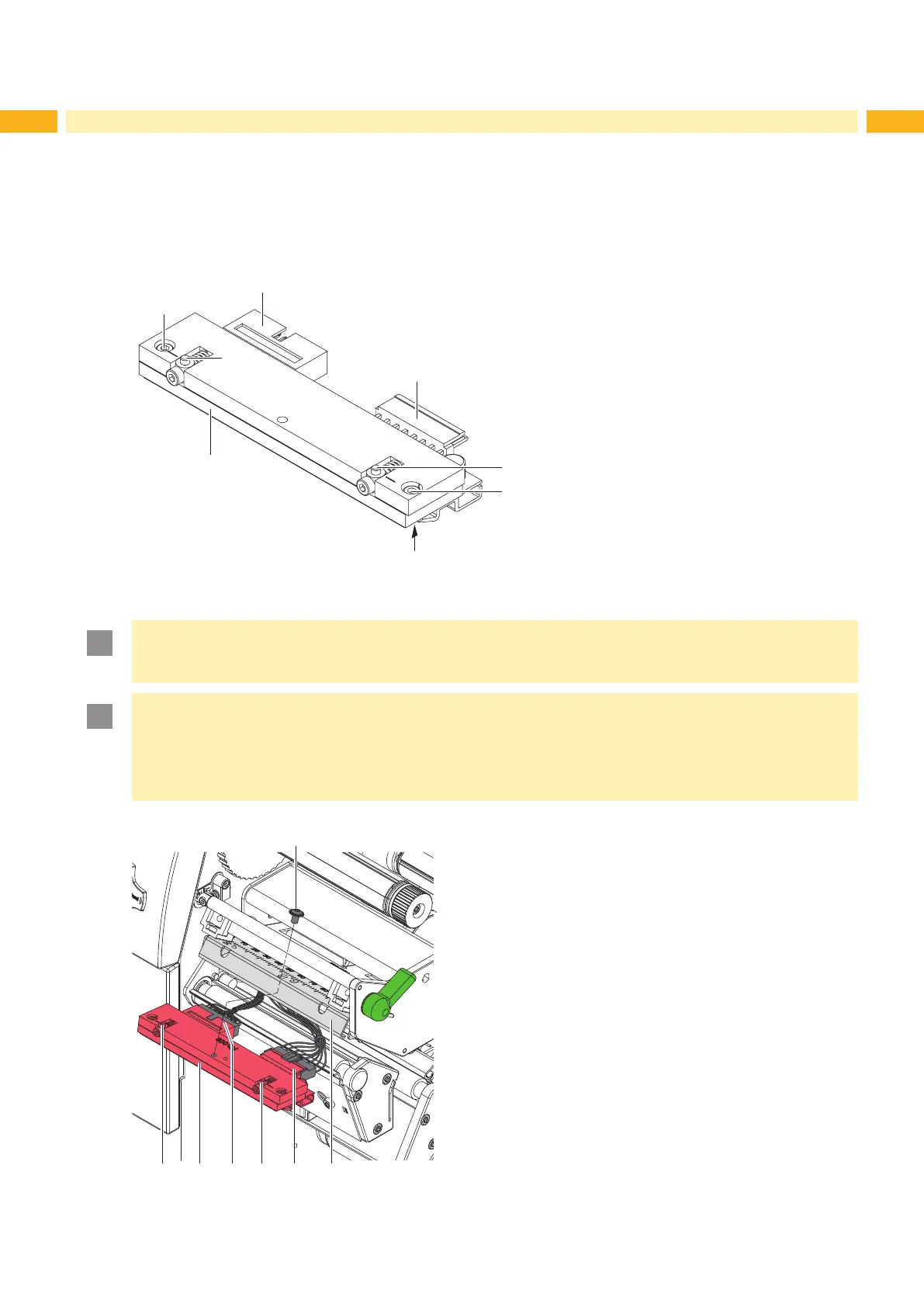

Fig. 3 Structure of the printhead XC4
!
Attention!
The printhead assembly is precisely aligned at the factory.
 Do not loosen the screws (4) under any circumstances.
!
Attention!
The printhead can be damaged by static electricity discharges and impacts!
 Ground your body, e.g. by wearing a grounded wristband.
 Do not touch contacts on the plug connections (2, 3).
 Do not touch printing line (5) with hard objects or your hands.
7
66 1 2 3 8
Fig. 4 Replacing the printhead XC4
