5.7 Adjusting the Ribbon Saver Mechanics
The lower print unit is equipped with a ribbon saver. The saver automatic reduced the consumption of color ribbon,
because in case of the saver mode the movement will interrupted by lifting the printhead. This is operated by a
eccentric, which is controlled by a light sensor. A failure in adjustment is possible if the transport of the ribbon is
stopped generally or it will make all movements like the label material.
Danger!
Risk of death via electric shock!
Before opening the rear cover, disconnect the device from the mains supply and wait at lease one
minute until the power supply unit has discharged.

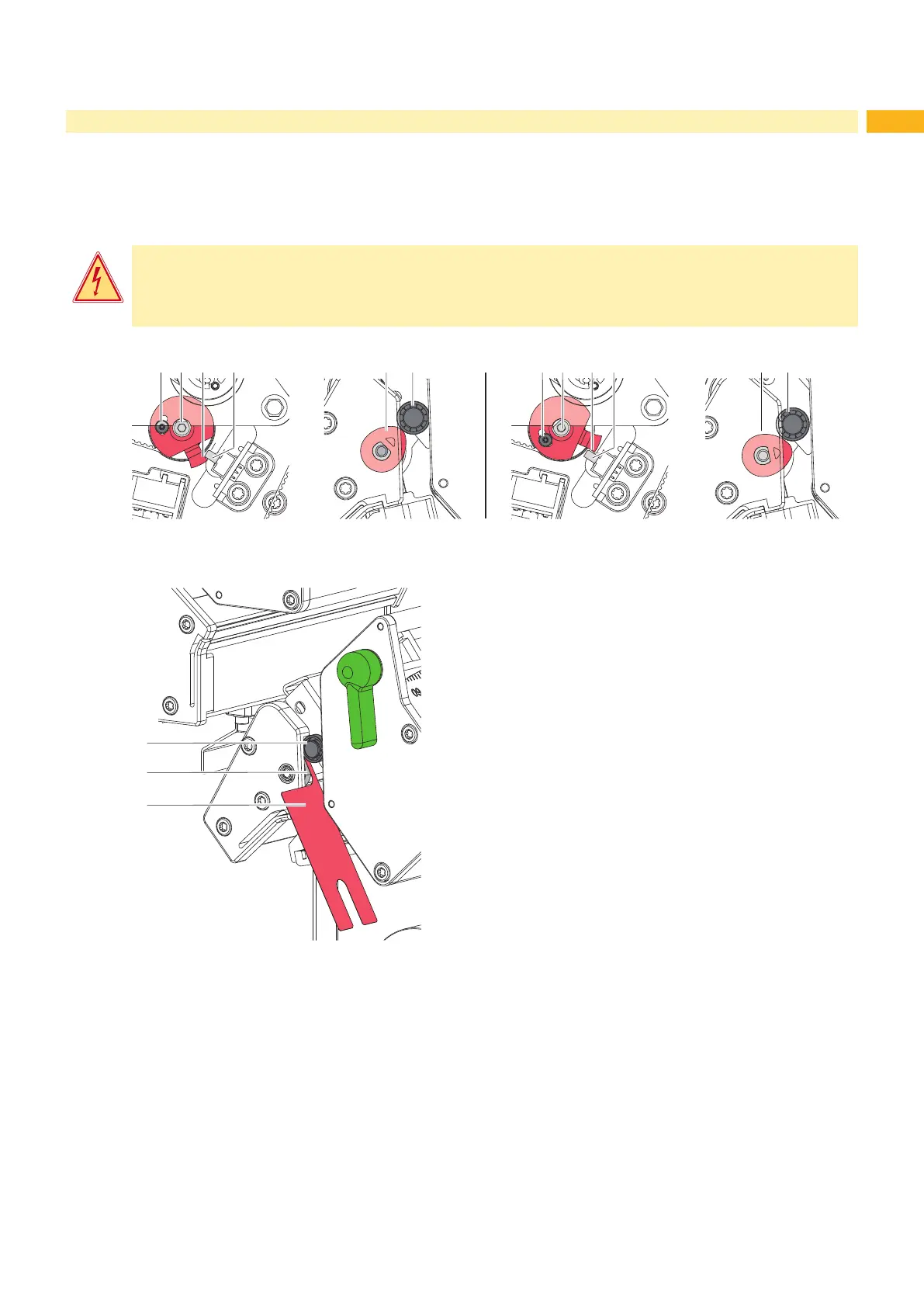

3a 421 3b 42165 65
Fig. 29 Eccentric in saver mode Fig. 30 Eccentric in print mode
6
5
7
Fig. 31 Checking distance eccentric - ball bearing
1. Unplug the printer from the electrical outlet.
2. Remove the rear cover 2.2 on page 6.
3. Lock the printhead.
4. Loosen the screws (1) at the clock wheel.
5. Turn axle (2) in such a way that the eccentrics (5) lift the
printhead via the ball bearings (6) at most
Fig. 29 .
6. Adjust a minimum gap between ange (3a) and the edge
of the sensor housing (4) by turning the clock wheel
Fig. 29.
7. Tighten screw (1).
8. Turn axle (2) in such a way that there is a minimum gap
between ange (3b) and the other edge of the sensor
housing Fig. 30.
9. Check the distance between ball bearing (6) and
eccentric (5) with the caliber 0.1 mm (7) Fig. 31.
10. Install the rear cover.
