5-12 6907 Input Channel
J-Type Revision J2005-2
815144 $X [LOLDU\#6HQGV#4#WR#43

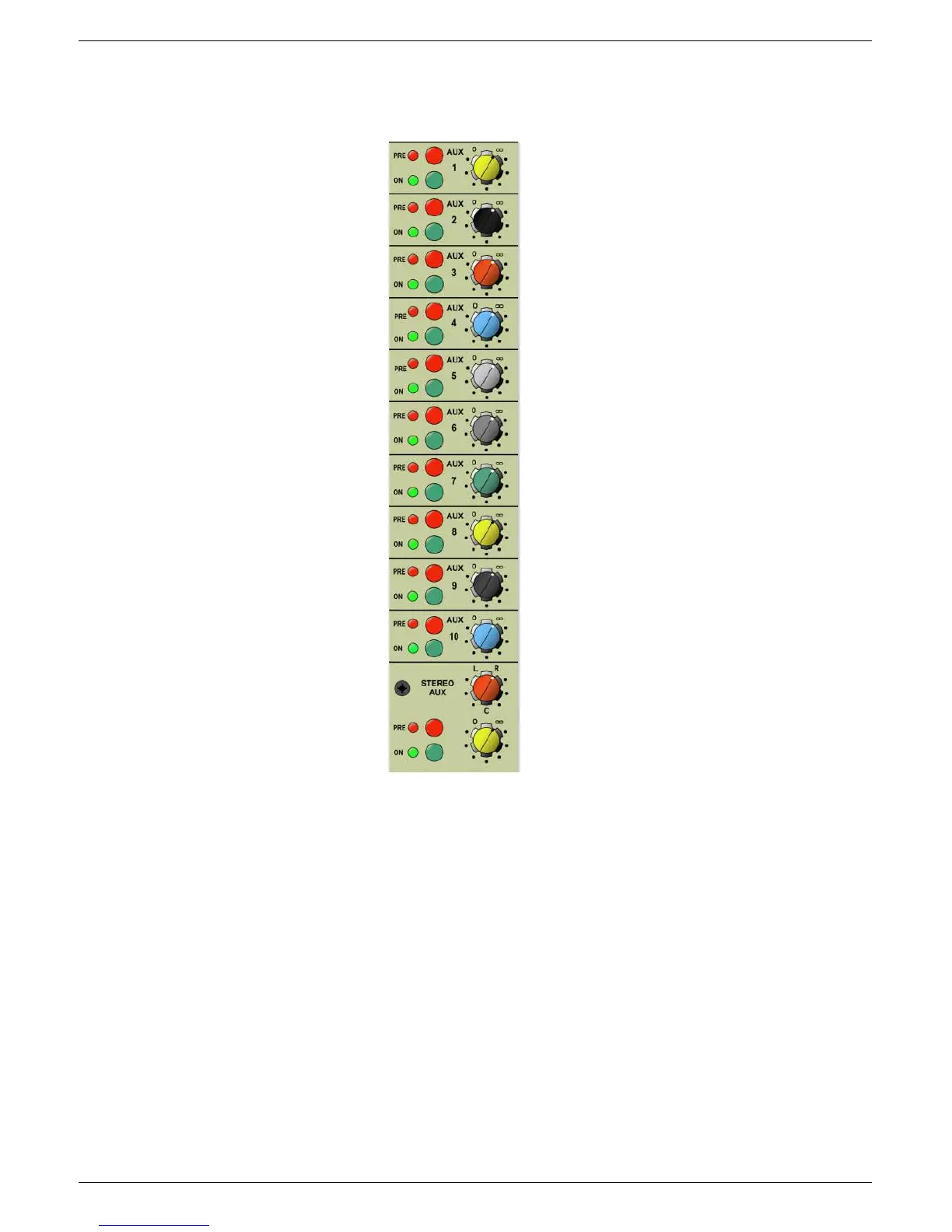

There are ten mono Auxiliary Sends with individual level controls and they can be
switched on or off and pre or post fader, independently.
There are two switches per section, PRE and ON. The default setting for the
switches in each section is post fader and Off.
To select an Aux Send but leave it in post fader mode, select ON only.
To select an Aux Send and have its signal derived from before the channel fader,
select PRE and ON.
815145 $X [LOLDU\#6HQGV#44#DQG#45
Aux Sends 11 and 12 are arranged as a stereo pair, thus a PAN control is included
as well as a level control and the PRE and ON switches.
9<3:#,QSXW#&KDQQHO
5.2.11 Auxiliary Sends 1 to 10
5.2.12 Auxiliary Sends 11 and 12
