6907 Input Channel 5-13
Revision J2005-2 J-Type
Should you only wish to use Aux 11, turn the PAN control fully left. Similarly, turn the
PAN control fully right to use Aux 12 only.
The PRE and ON switches work in the same way as described in
815146 &RQ WURO#IRU#+)#ERRVW2FXW
Defines the amount of equalization (±18dB) applied to the high frequency band.
815147 +LJK#)UHTXHQF\#&RQWURO
This control allows you to choose the “centre” frequency at which the boost/cut is
applied.
9<3:#,QSXW#&KDQQHO

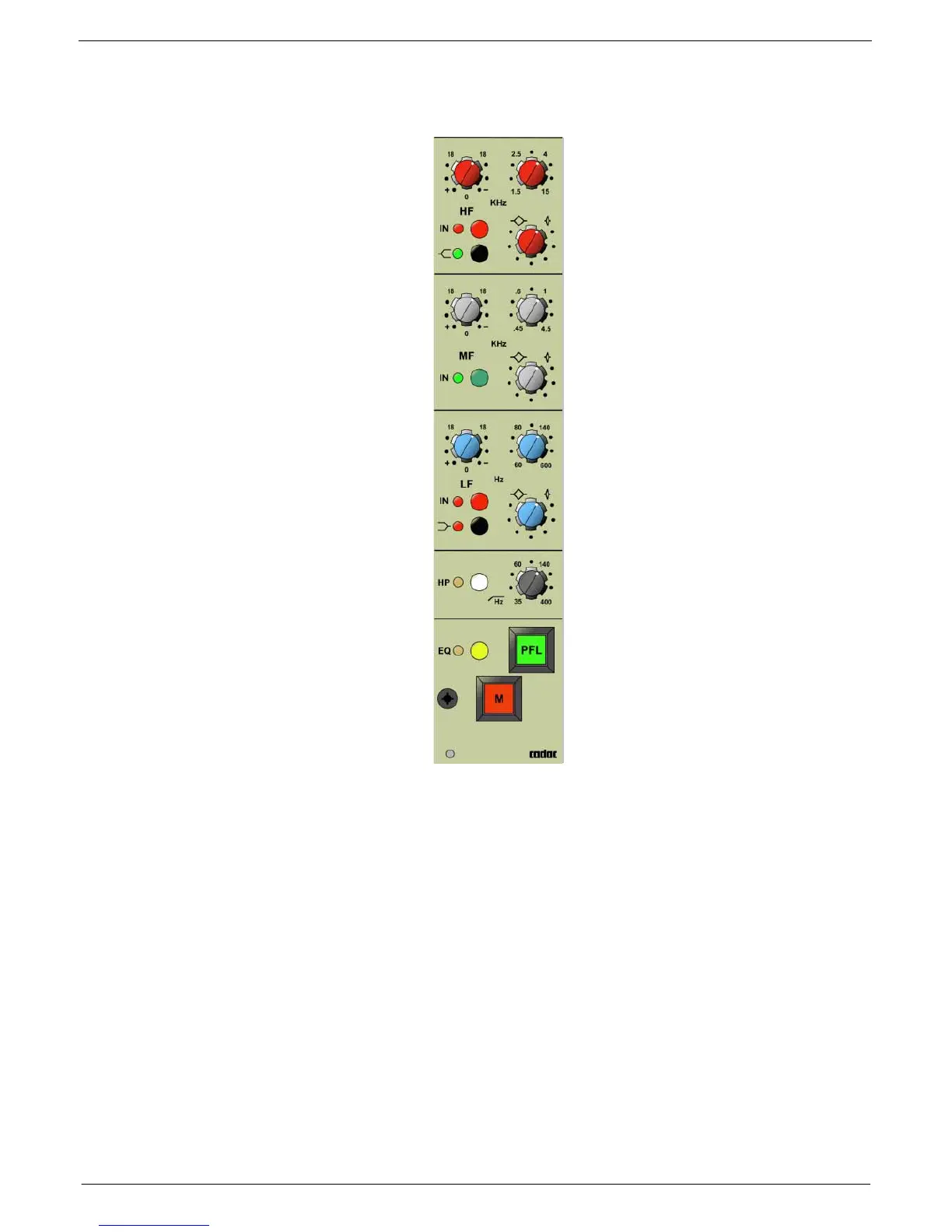

5.2.14 High Frequency control
5.2.17 HF Q control
5.2.19 Mid Frequency control
5.2.21 MF Q control
5.2.23 Low Frequency control
5.2.26 LF Q control
5.2.28 HP Filter Frequency control
5.2.30 PFL switch
5.2.31 Mute switch
5.2.13 Control for HF boost/cut ±18dB
5.2.15 HF EQ In/Out switch
5.2.16 HF EQ Bell/Shelf switch
5.2.18 Control for MF boost/cut ±18dB
5.2.20 MF EQ In/Out switch
5.2.22 Control for LF boost/cut ±18dB
5.2.24 LF EQ In/Out switch
5.2.25 LF EQ Bell/Shelf switch
5.2.27 HP Filter In/Out
5.2.29 Equalizer In/Out
