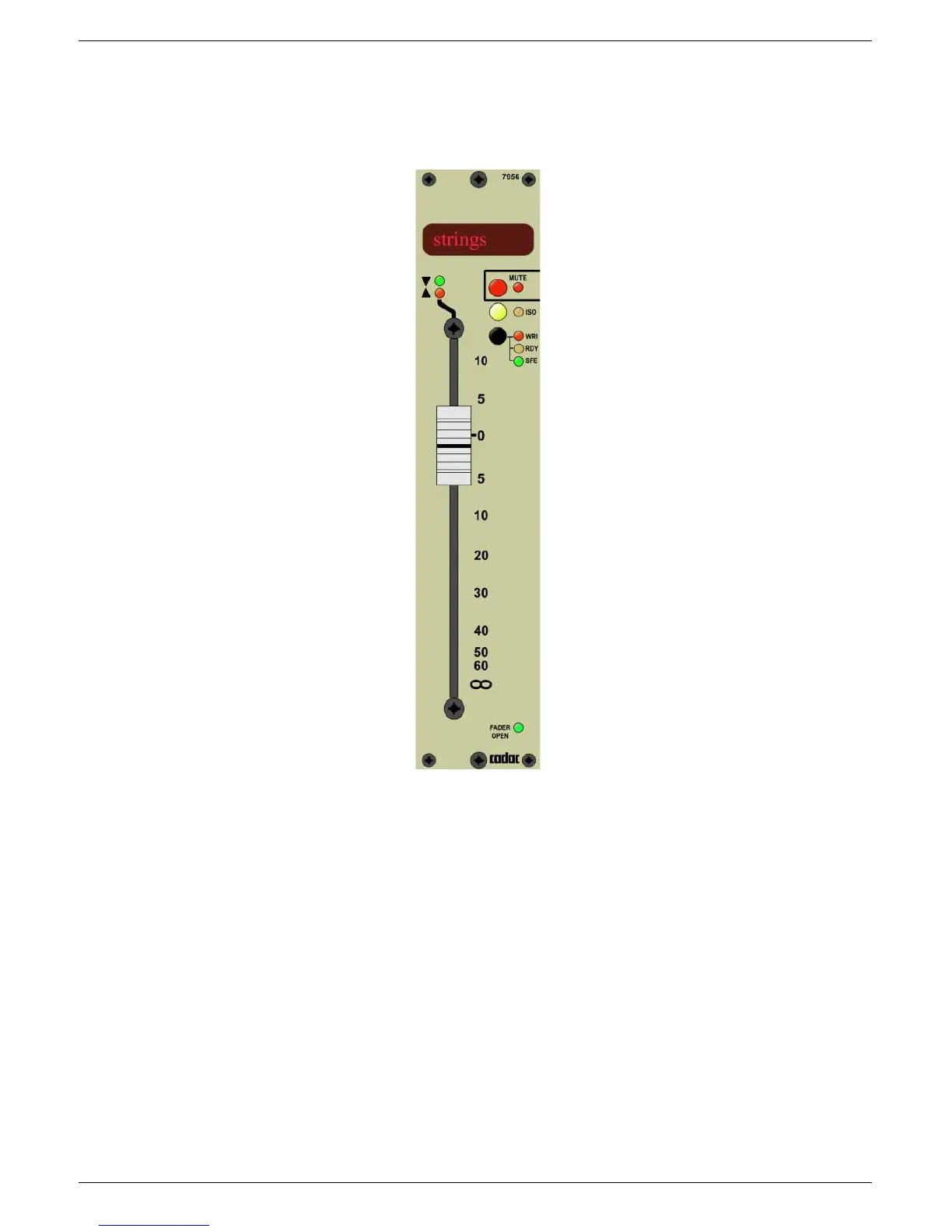

;19 :<89#'&#0DVWHU#0RWRU#I DGH U
;1914 'LVSOD\
This 8 character display shows the title for the DC Master (see SAM user manual).
;1915 1XOO#SRLQW#/('V
These two LEDs indicate the direction in which the fader should move when a cue
with static fader data is recalled. The fader is at the ‘null’ position when the LEDs are
off. If the upper LED is illuminated, the fader is above the ‘null’ point and if the lower
LED is illuminated, the fader is below the null point
;1916 087(
When MUTE is ‘on’, the audio signal(s) controlled by the group does not appear at
the console outputs
8.6.1 Display
8.6.3 MUTE
8.6.4 Isolate
8.6.5 Write
8.6.6 Ready
8.6.7 Safe
8.6.8 Fader
8.6.9 Fader Open
8.6.2 Null point LEDs
