Pag. 86 MIRIAM-NICE-DIANA-PRETTY-MARY
9. TECHNICAL DATA

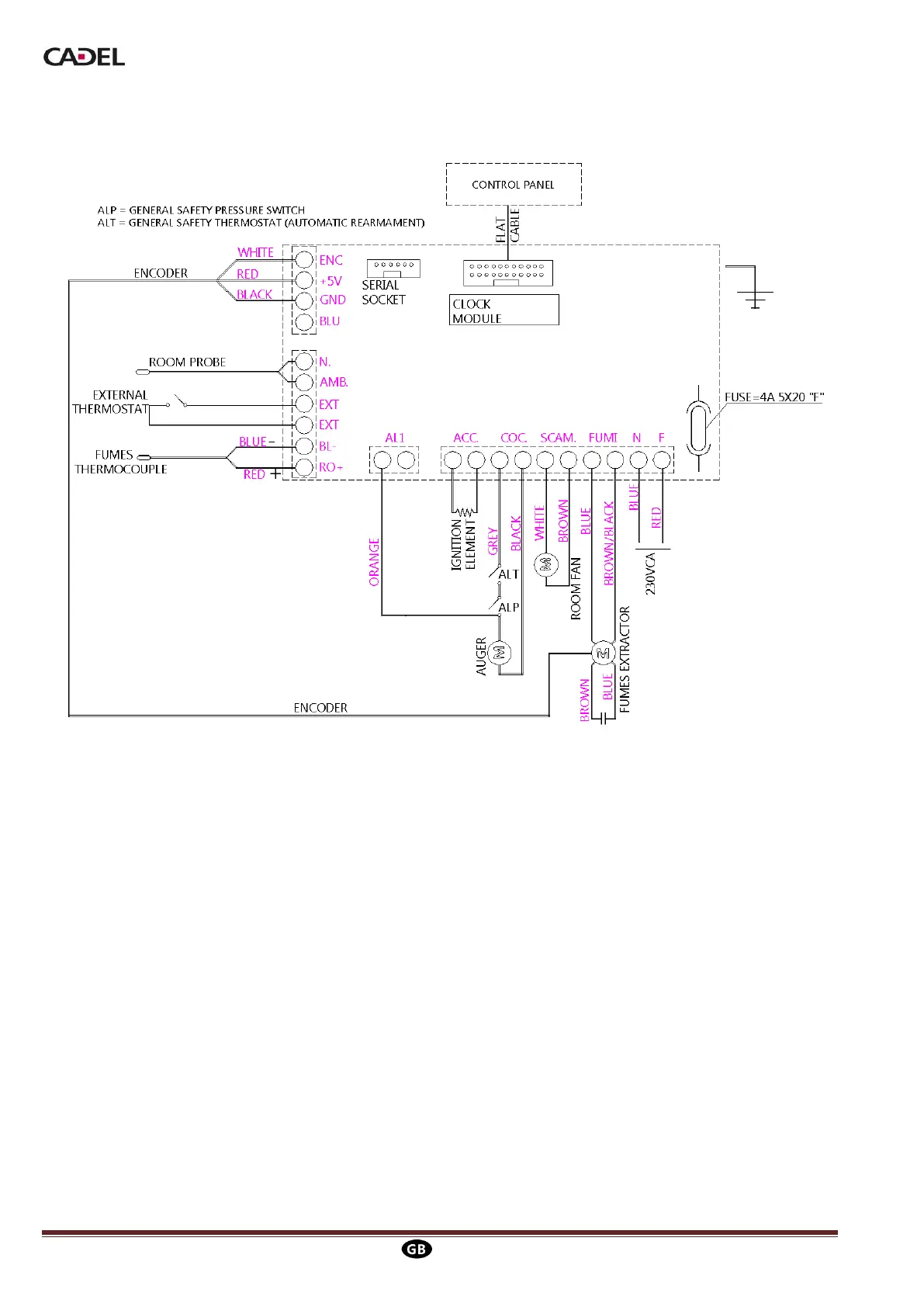

9.1. ELETRICAL DIAGRAM
Picture 15
9.2. REPAIRS
Here are some instructions for the engineer when accessing the mechanical parts of the stove (see
Picture 16, page 87):
Loosen the cover. Detach the r/h and l/h sides and remove from their seats.
This operation gives access to the following components: gear motor (3), ignition spark plug (5),
room fan (8), fumes extractor (7), room probe (10), fumes probe (9), thermostat (6), electronic circuit
board (1), pressure switch (4).
To clean and/or replace the auger, loosen the three bolts on the gear motor (3) and remove, loosen
the two screws under the auger gear motor, remove the internal hand protection, then loosen the
bolt in the auger. To replace repeat the operations in reverse order.
