CALIX 2364 ONT INSTALLATION GUIDE
3 - 2364 ONT I NSTALLATION S TEPS
1. Remove the connector from the inner electronics box if it is installed.

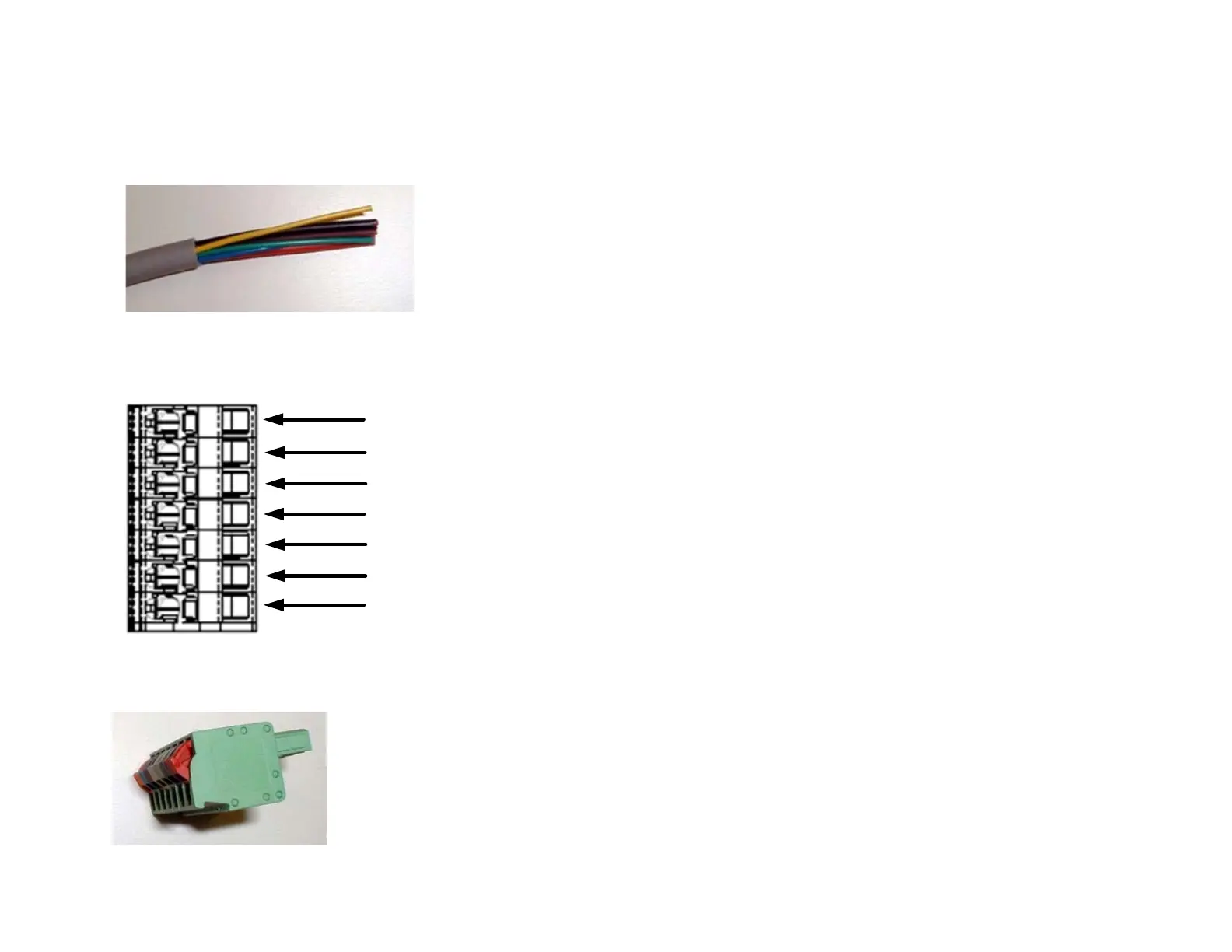

2. Prepare the cable by removing the outer jacket and cutting any strength members, as shown in Figure 3-8.
Figure 3-8: Cable with Outer Jacket Removed
3. Connect the conductors as appropriate for the power connector.
Table 3-1: Plug Color Coding
4. Raise the levers on all connections in the IDC plug as shown in Figure 3-9.
Figure 3-9: IDC Plug with Connectors Raised
ORANGE - LOW BATTERY (BAT LOW)
BLUE - BATTERY MISSING (BAT MIS)
BROWN – REPLACE BATTERY (BAT REP)
GRAY – ON BATTERY (BAT ON)
GREEN – SIGNAL RETURN (SIG RTN)
BLACK – 12V Rtn
RED – 12V +ve
