Calorex Pro-Pac 45 - Page 44

Pro-P ac PP140

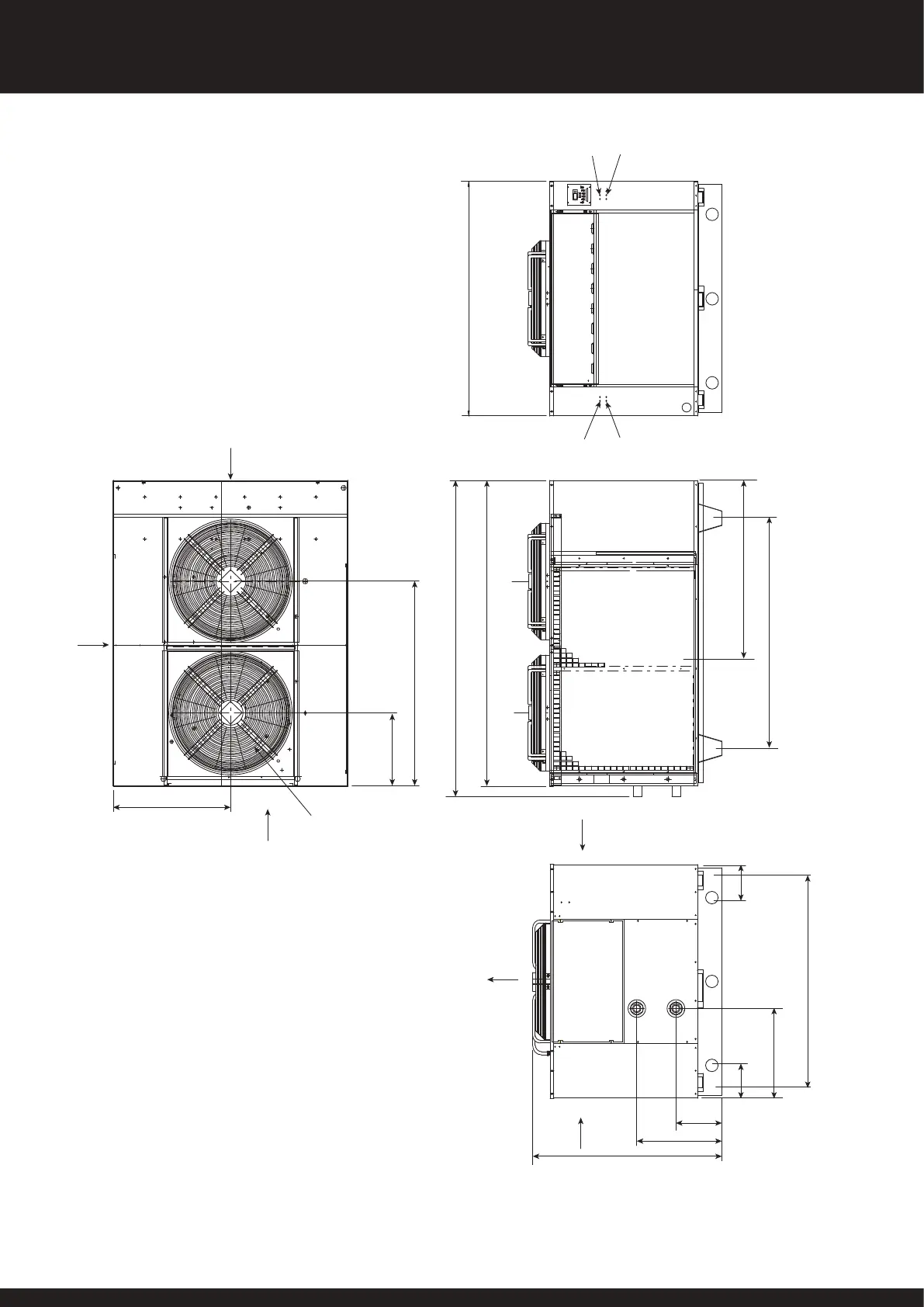

DIMENSIONS IN mm
ISSUE 1
LEAVE 500mm CLEARANCE FOR SERVICE PANELS
WATER CONNECTIONS 2" BSPM CONDENSATE 1½" BSPM
SERVICE
PANEL
SERVICE
PANEL
SERVICE PANEL
NOMINAL FAN
DIAMETER 815
821
514.50
1437.50
WATER
OUT
WATER
IN
2146
2210
AIR IN
HP
SWITCH
LP
SWITCH
SERVICE PANEL
ELECTRIC BOX ACCESS
1650
SERVICE PANEL
CONSOLE
HP SWITCH
LP SWITCH
21
0 1
*1616
1290
CONDENSATE OUT
POSITION IN BASE
FAN 2
FAN 1
AIR IN
AIR OUT
592
1340
*1562
254
CONDENSATE OUT POSITION IN BASE
*FIXING CENTRES TO SECURE MACHINE
647
324
254
CONDENSATE OUT POSITION IN BASE
44
SD566252 ISSUE 51
PR0-PAC SYSTEM OWNER INSTALLATION MANUAL
