1002595 ISSUE 5 M172 VARIHEAT

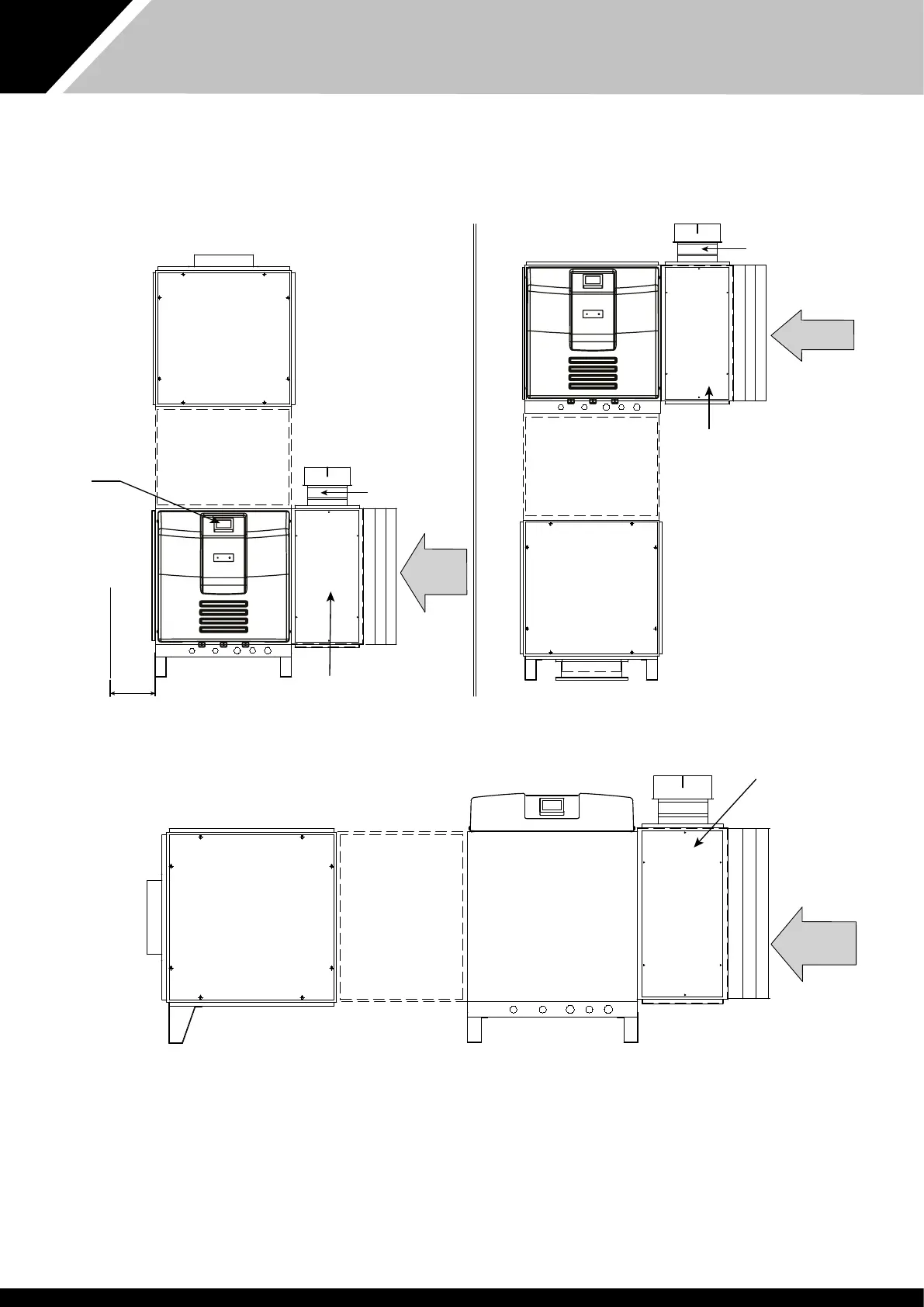

Optional fresh air
module with two spigots
(225mm diameter)
or Negative pressure module
with one spigot
(157mm diameter)
Return air
from
pool hall
Service panel
Damper
Spigot
Service panel
Air filter access panel
Service access area (minimum)
Required for all service panels
800
Vertical, upflow range
Supply air to pool hall
Service panel
Service panel
Damper
Spigot
Service panel
Air filter access panel
Vertical, downflow range
Supply air to pool hall
Horizontal range
Service panel
Damper
Service panel
Air filter access panel
Spigot
Service panel
Supply air
to pool hall
Removable display
panel gives access
to electric box
Optional resistance heater
module in is position only
Optional fresh air
module with two spigots
(225mm diameter)
or Negative pressure module
with one spigot
(157mm diameter)
Optional resistance heater
module in is position only
Touchscreen
user interface
Return air
from pool hall
Return air
from
pool hall
Optional resistance heater
module in is position only
Service panel
Optional fresh air
module with two spigots
(225mm diameter)
or Negative pressure module
with one spigot
(157mm diameter)
All ambient air ducting should be suitably insulated if plant room temperatures are significantly different from ambient, particularly where e plant room is at pool
conditions. Spring return dampers are recommend for exhaust and fresh air ductwork in installations wi sub zero ambient temperatures, in case of power failure.
Important
AA600, 900 and 1200 models are fitted wi constant flow fans and self-regulate to deliver e optimum airflow, compensating for pressure differentials in e
system. AA1500 models are fitted wi a variable speed, so e fan speed should be commissioned to ensure e correct volume (wi dry coils, clean air filter and
all panels fitted). See data sheet for pressures available.
