Calorex Variheat AA600 - Page 61

61
1002595 ISSUE 5 M172 VARIHEAT

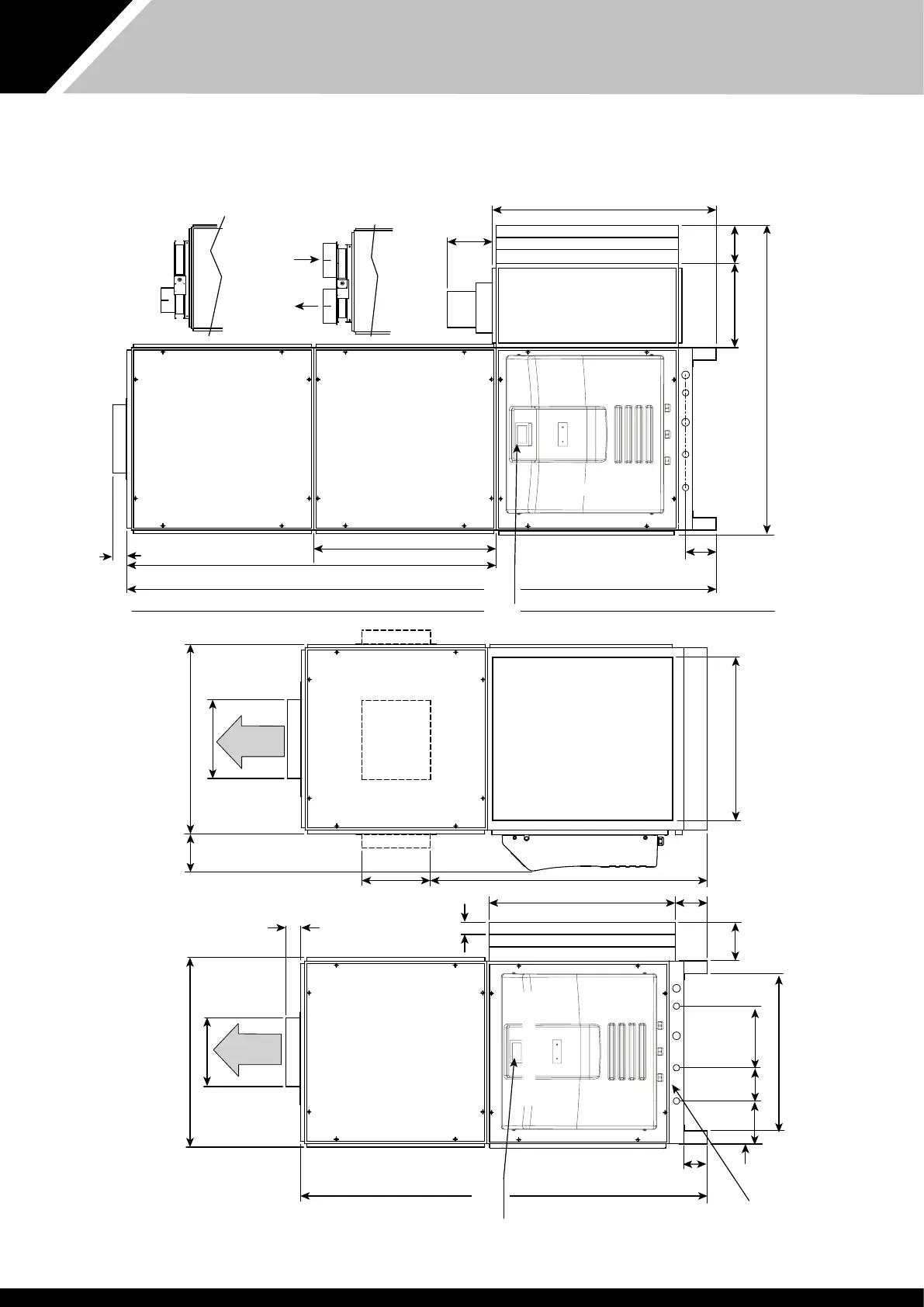

1200/1500 vertical, upflow versions
Service panel
Return air from
pool hall
160
662
56
772
Air filter access panel
50
1718
100
289
60
800
Service panel
Service panel
333
692
800
Alternative
supply air
positions
1170
289
355
fresh air
module
Service panel
Damper
Resistance heater module (if fitted) Iin is position only
770
2488
see above
spigot
Variheat wiout optional modules
190
160
60
1558
945
182
140 260
1295
Air filter access panel
Service panel
Service panel
Variheat wi fresh air module,
negative pressure module
and/or resistance heater module
Supply air
to pool hall
Fresh air module
2 spigots
diameter225mm
Negative pressure module
1 spigot
diameter157mm
145
130
Service panel
Touchscreen User Interface
Touchscreen User Interface
Exhaust air out
Fresh air in
Service panel
Electric box assembly
155
Electric box assembly
LPHW in
1" BSPM
LPHW out
1" BSPM
Drain ¾" BSPM
Service panel
LPHW in
LPHW out
Drain
Cable entry points
Supply air
to pool hall
