10 11 TS 1
L N U V W E1 EX W L1T L2T CT VS VF
24V 0
0
17
24
FR
1
2
3
4
SP
0
CAME
10 11 TS 1 2 3 3P 4 5 7 CX CY
L N U V W E1 EX W L1T L2T CT VS VF
24V 0
p. 15 - Manual FA01208-EN - 07/2021 - © CAME S.p.A. - Translated original instructions
Blue
Brown
Gray
Black
White
Red

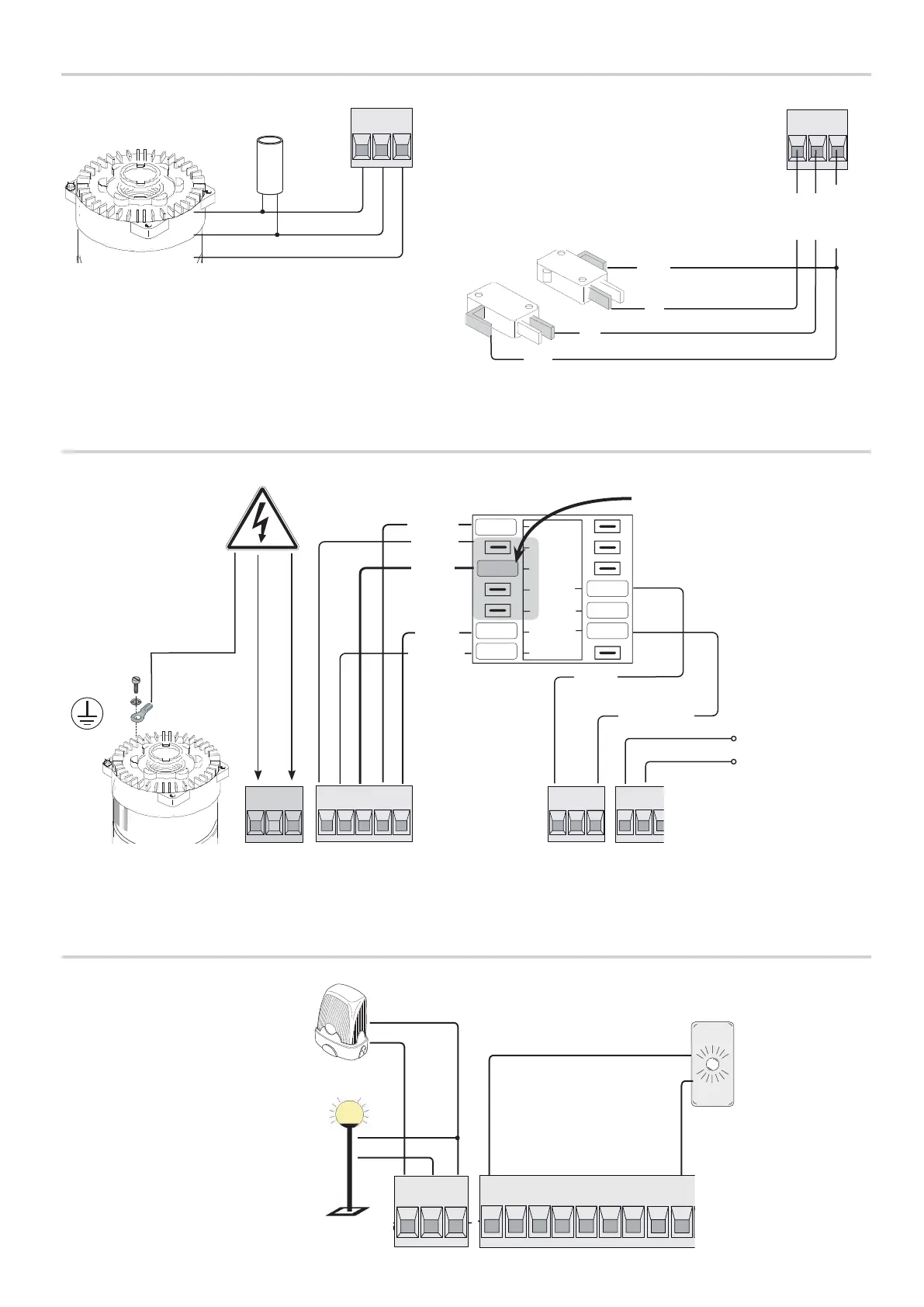

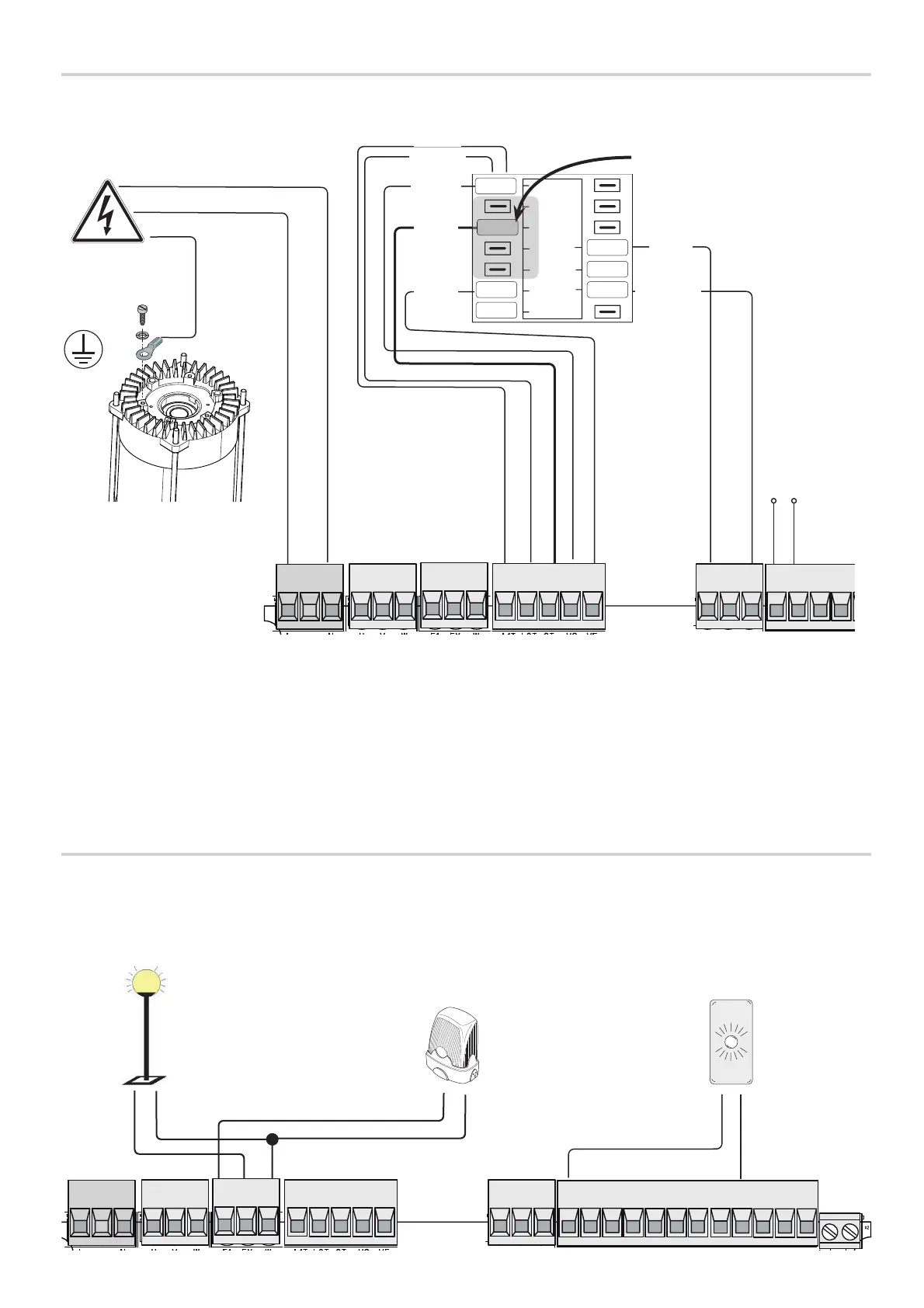

Flashing light connection output (contact
rated at: 230 V AC - 25 W max).
SIGNALING DEVICES
Gate state warning output (contact
rated for 24 V AC - 3 W max.).
See function
F10.
Additional light connection output (contact
rated at: 230 V - 60 W max).
See function F18.
Accessories power
supply output 24 V
AC, max 20 W.
To vary the motor torque, move
the shown faston to one of the four
positions; from 1 (min.) to 4 (max.).
Orange
120 / 230 V AC 50/60 Hz
POWER SUPPLY
