CAME BKS08ALS

p. 6 - Manual FA01208-EN - 07/2021 - © CAME S.p.A. - Translated original instructions
STANDARD INSTALLATION
1. Operator
2. Limit-switch fins
3. Rack
4. Key-switch selector
5. Antenna
6. Flashing light
7. Photocells
8. Small post
9. Mechanical gate stop
10. Sensitive safety-edge
11. Junction pit

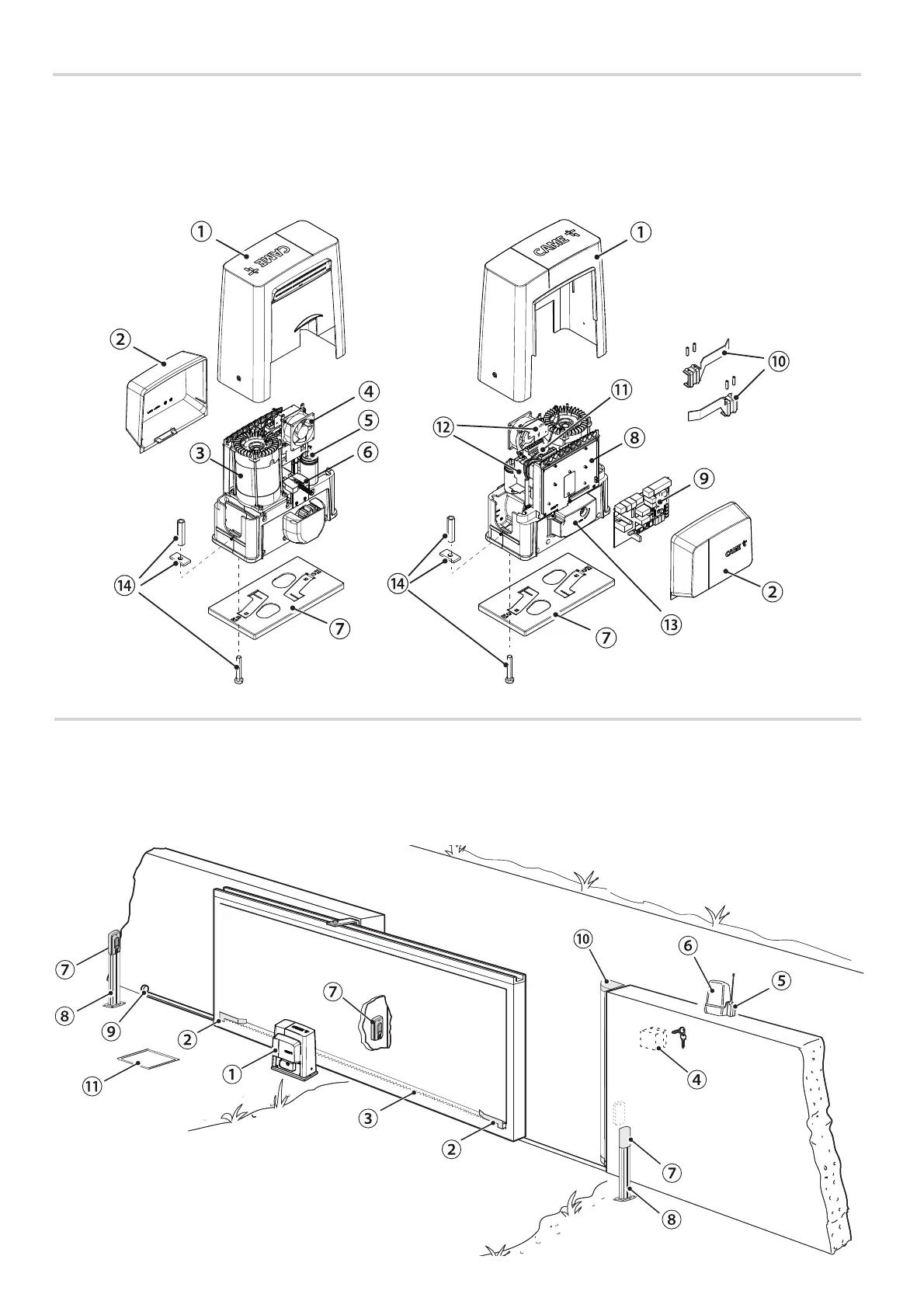

DESCRIPTION OF PARTS
1. Cover
2. Front cover
3. Gear motor
4. Fan (BKS08ALS series)
5. Condenser
6. Mechanical limit switch
7. Anchoring plate
8. Control board rack
9. ZBKN control board
10. Limit-switch fins
11. Transformer
12. Mounting braces for housing accessories (optional)
13. Release hatch
14. Fastening hardware
