1
2
22
1
~ 20 mm
~ 20 mm
p. 12 - Manual FA01208-EN - 07/2021 - © CAME S.p.A. - Translated original instructions

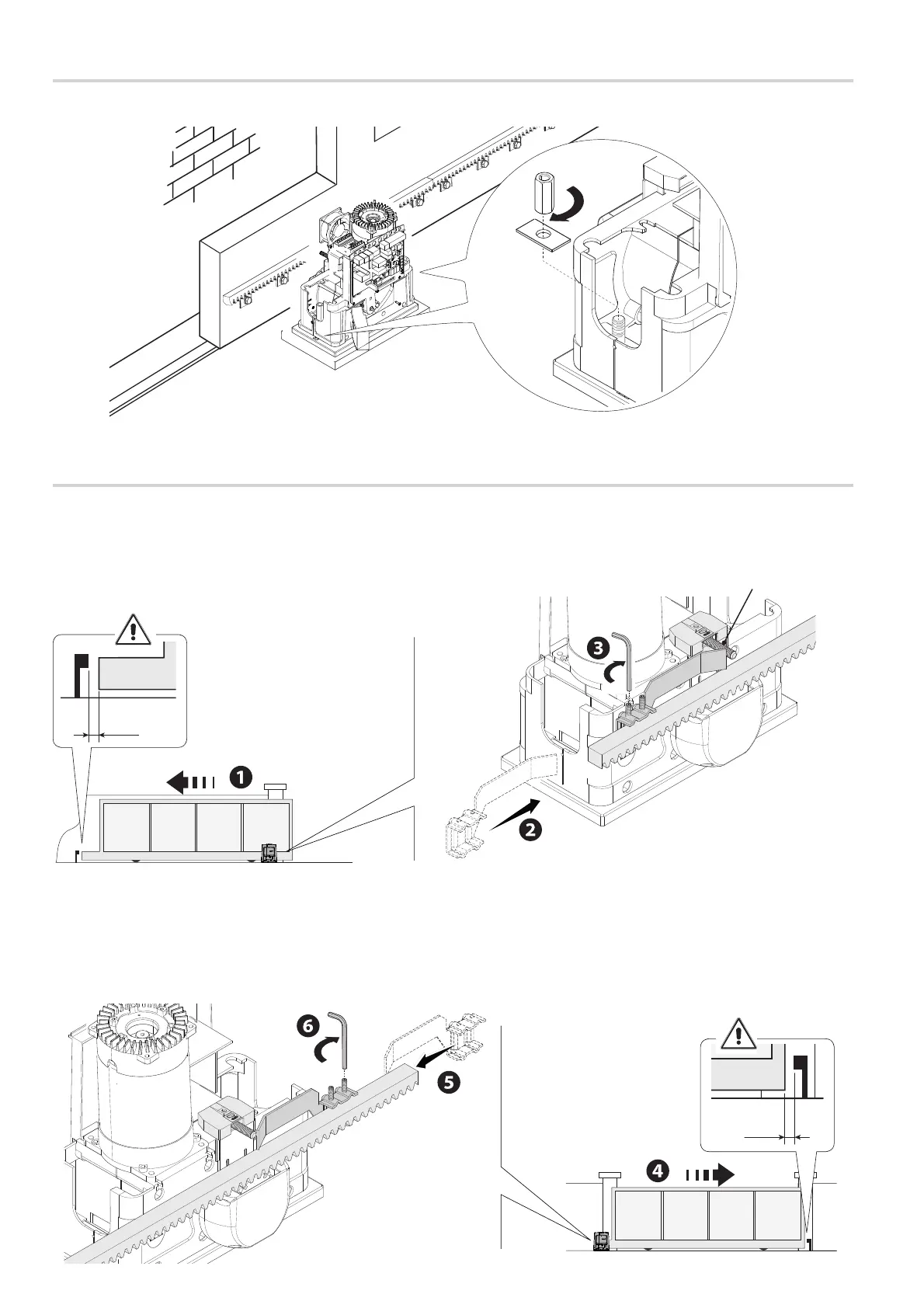

For closing:
- close the gate;
- fi t the closing limit-switch tab into the rack until the micro-switch is activated (spring) and fasten it using the grub screws.
ESTABLISHING THE LIMIT-SWITCH POINTS
For opening:
- open the gate;
- fi t the opening limit-switch tab onto the rack until the micro switch activates (spring) and fasten it using the grub screws.
FASTENING THE OPERATOR
Once adjusting is complete, fasten the gearmotor to the plate using the plates and nuts.
Spring
