183
143
326
22 max.
359,5
105
109,5
170
262
p. 4 - Manual FA01208-EN - 07/2021 - © CAME S.p.A. - Translated original instructions

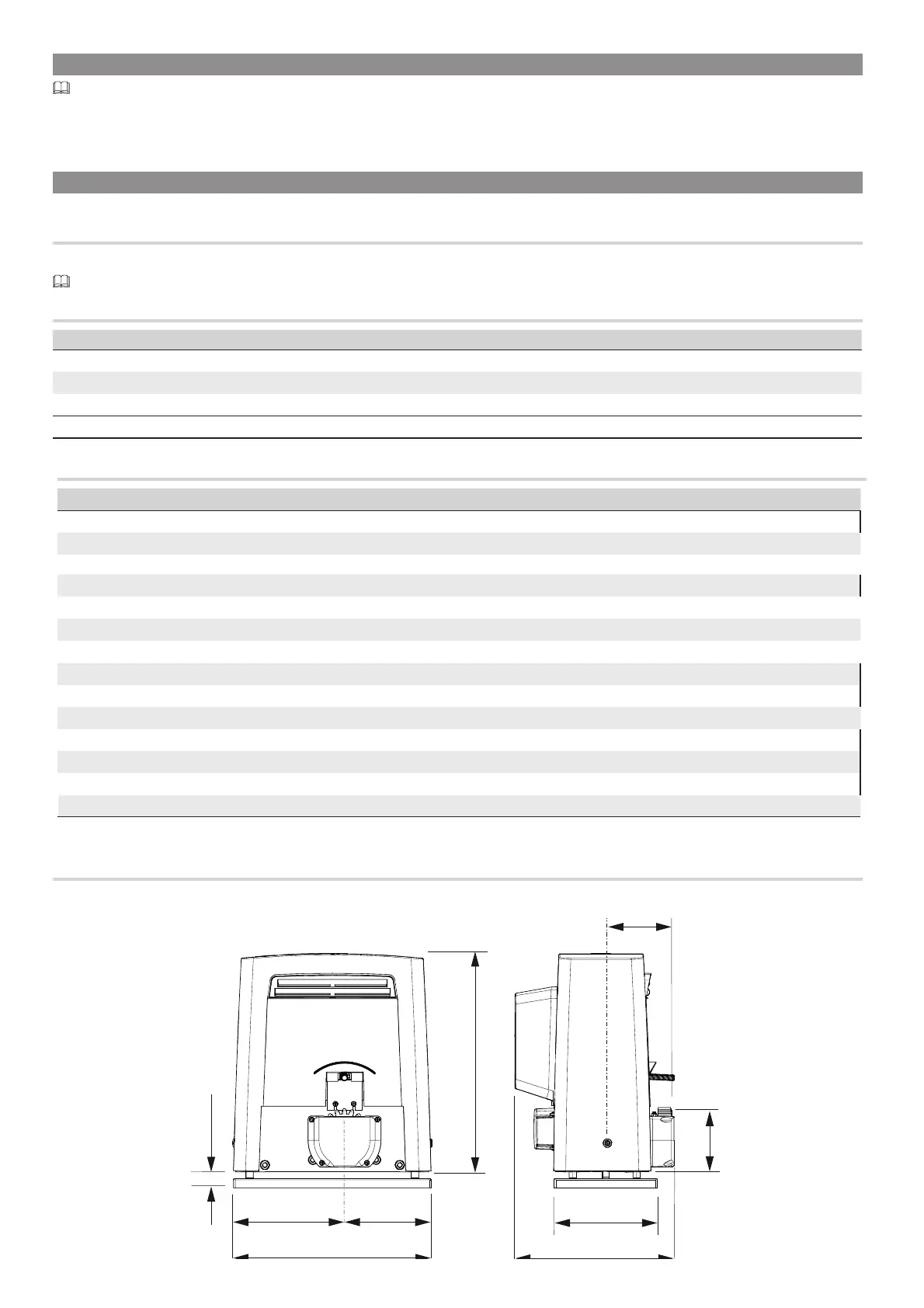

TECHNICAL DATA
Model BKS08ALS BKS12ALS BKS18ALS BKS22ALS
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 230 AC
Input voltage to motor (V - 50/60 Hz) 230 AC
Stand-by consumption (W) 4.5
Stand-by consumption with the RGP1 (W) module 0.5
Power (W) 520 380 480 580
Thrust (N) 800 850 1150 1500
Opening speed (m/min) 10.5
Operating temperature (°C) -20 to +55
Condenser (μF) 22 25 31.5 35
Apparatus class I
Motor's heat protection (°C) 150
Acoustic pressure dB (A) ≤70
Weight (Kg) 21 18 19.5 21

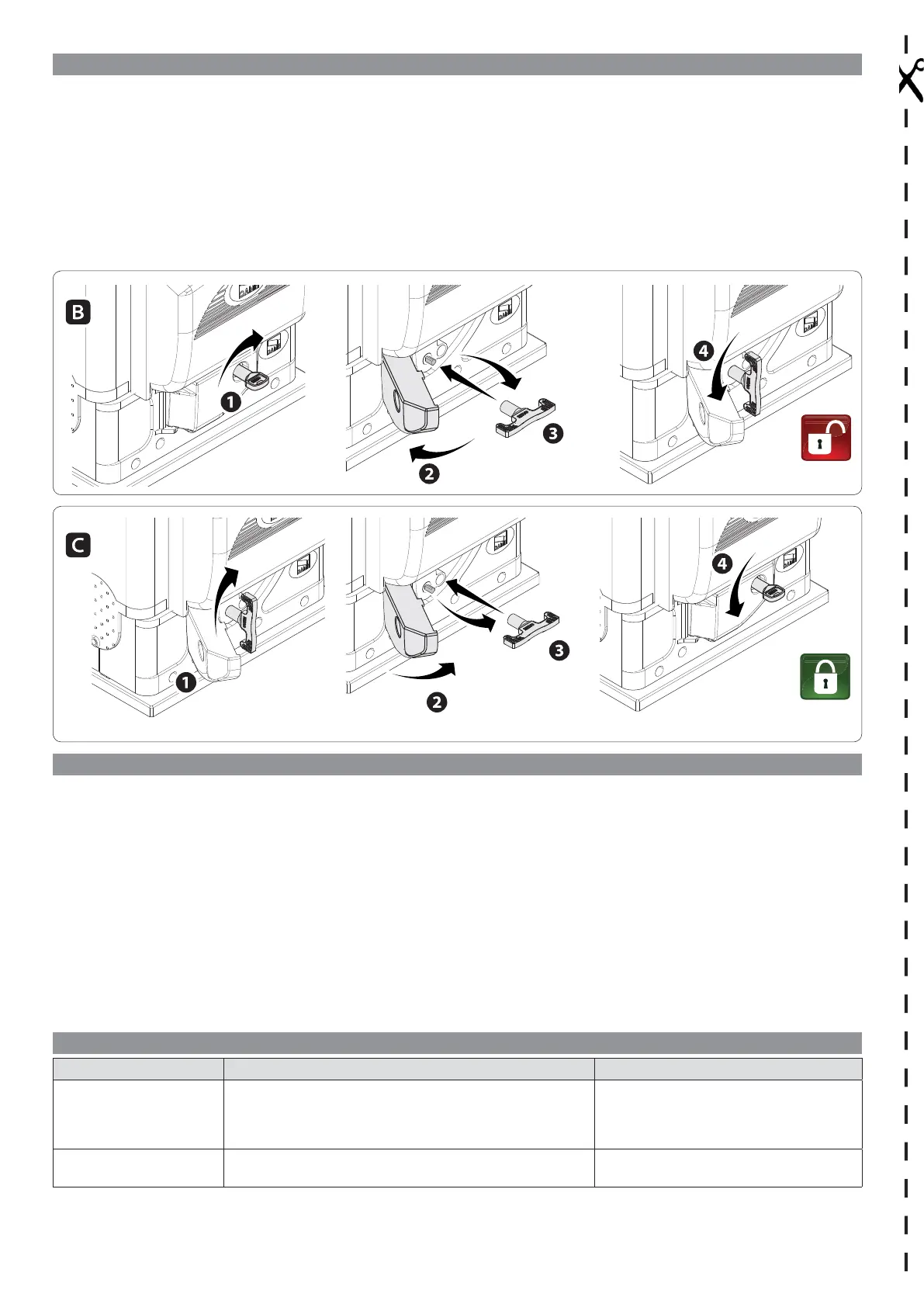

DESCRIPTION
Operator fitted with control board and mechanical limit-switches for sliding gates weighing up to 2,200 kilograms.
INTENDED USE
The operator is designed to power sliding gates used in apartment blocks and industrial plants.
Do not install of use this device in any way, except as specified in this manual.
INTENDED USE
Model BKS08ALS BKS12ALS BKS18ALS BKS22ALS
Standard reference* length of the sliding part (m) 10
Maximum weight of the sliding part (kg) 800 1,200 1,800 2.200
Pinion module 4446
* For other-than-standard measurements, see the following graphs.
DIMENSIONS
KEY
This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
The measurements, unless otherwise stated, are in millimeters.
