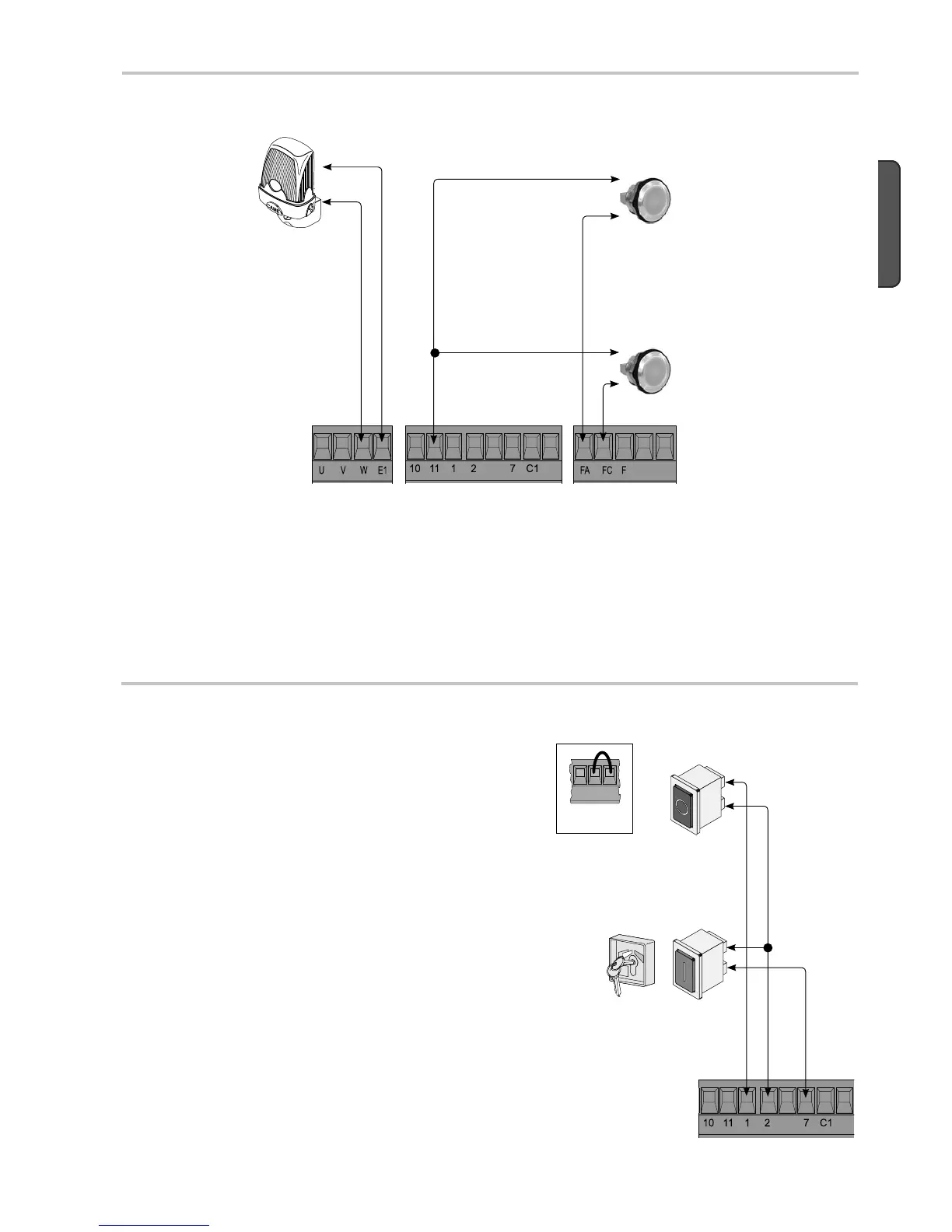

Movement fl ashing
light Contact rated for:
230 V - 25 W Max.)
Flashes while gate
opens and closes.
Warning devices
Gate open indicator-light
Contact rated for:
24 V - 3 W Max.).
Signals the position of the
open gate.
It switches o when the
gate is closed.
Command devices
Stop button (N.C. contact.) .
- Button to stop gate with exclusion of automatic closing cycle. to resume
movement pres command button or trasmitter key.
N.B.: if contact is unused, short circuit on terminals 1-2.
BX-64/BX-68 = Key switch selector and/or command button
OPENS-CLOSES (NO contact).
- Gate opening and closing commands; during movement, any new
commands (even from transmitters) invert the direction
BX-64B/BX-68B = Key switch selector and/or command button
OPEN-STOP-CLOSE-STOP (contatto NO).
- Gate opening and closing commands; during movement, any new
commands (even from tramistters) stop the gate and the next command
inverts the direction of travel.
Gate close indicator light
Contact rated for:
24 V - 3 W Max.).
Signals the closed gate position.
Switches o when the gate is
open.
if unused
