04/2014 © CAME cancelli automatici s.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ITALIANITALIANENGLISH

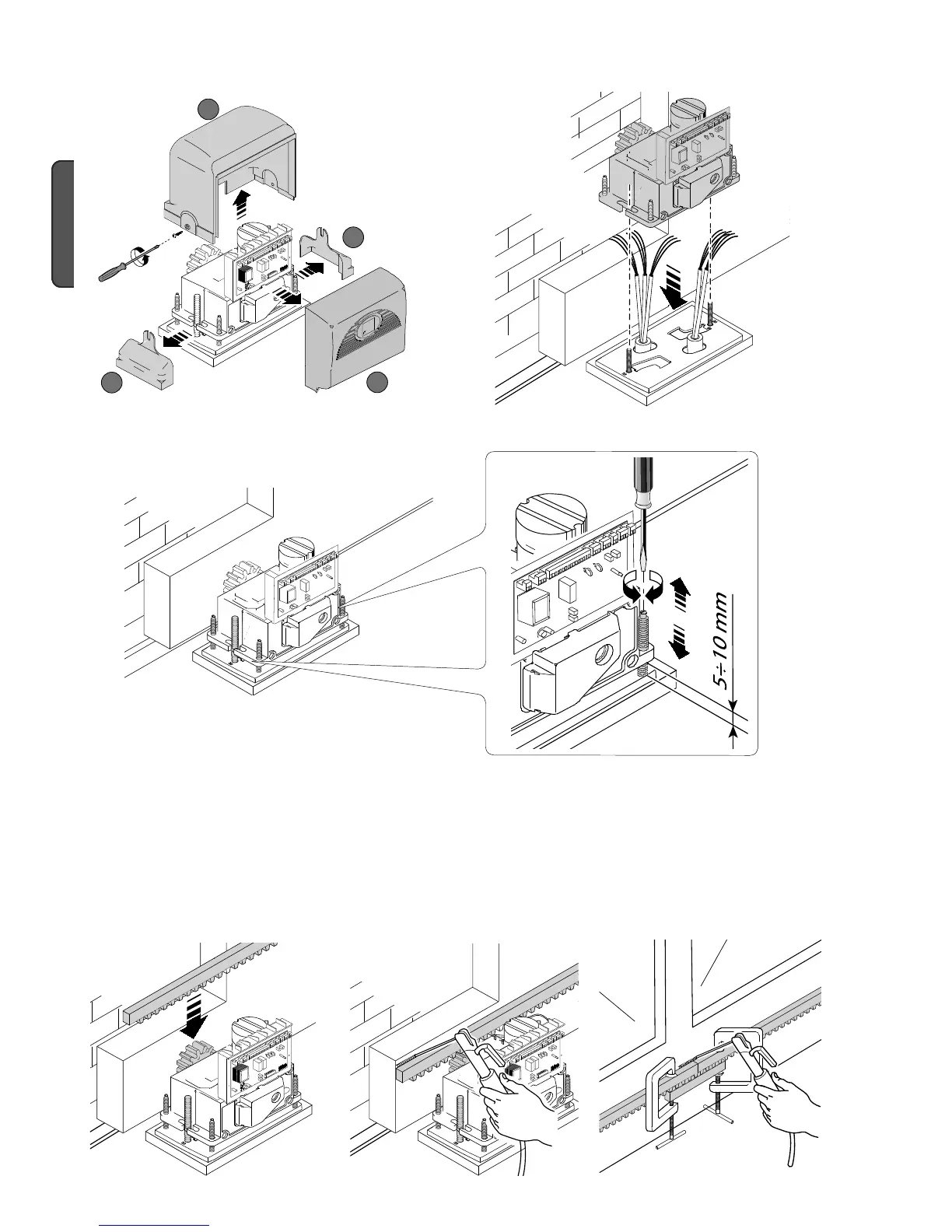

- Remove the cover of the gearmotor by turning the laterl screws. Position the gearmotor onto the plate. Warning!The electrical cables
must pass through the inside of the gearmotor box.
- Lift the gearmotor from the anchoring base by between 5 and 10 mm by turning the threaded-steel feet to allow room any later
adjustments between pinion and rack.
- The following illustrations for fastening the rack, are just applicative examples. It is up to the installer to choose the most suitable
solution.
Release the gearmotor (see paragraph on manual release). Rest the rack onto the gearmotor pinion.
Either weld or fasten the rack along the entire length.
To assemble the rack modules, use a spare lenght of rack and rest it under the joining point and then lock it into place using two
clamps.
Note: If the rack is already installed, proceed directly with adjusting the joining pinion-rack distance.
