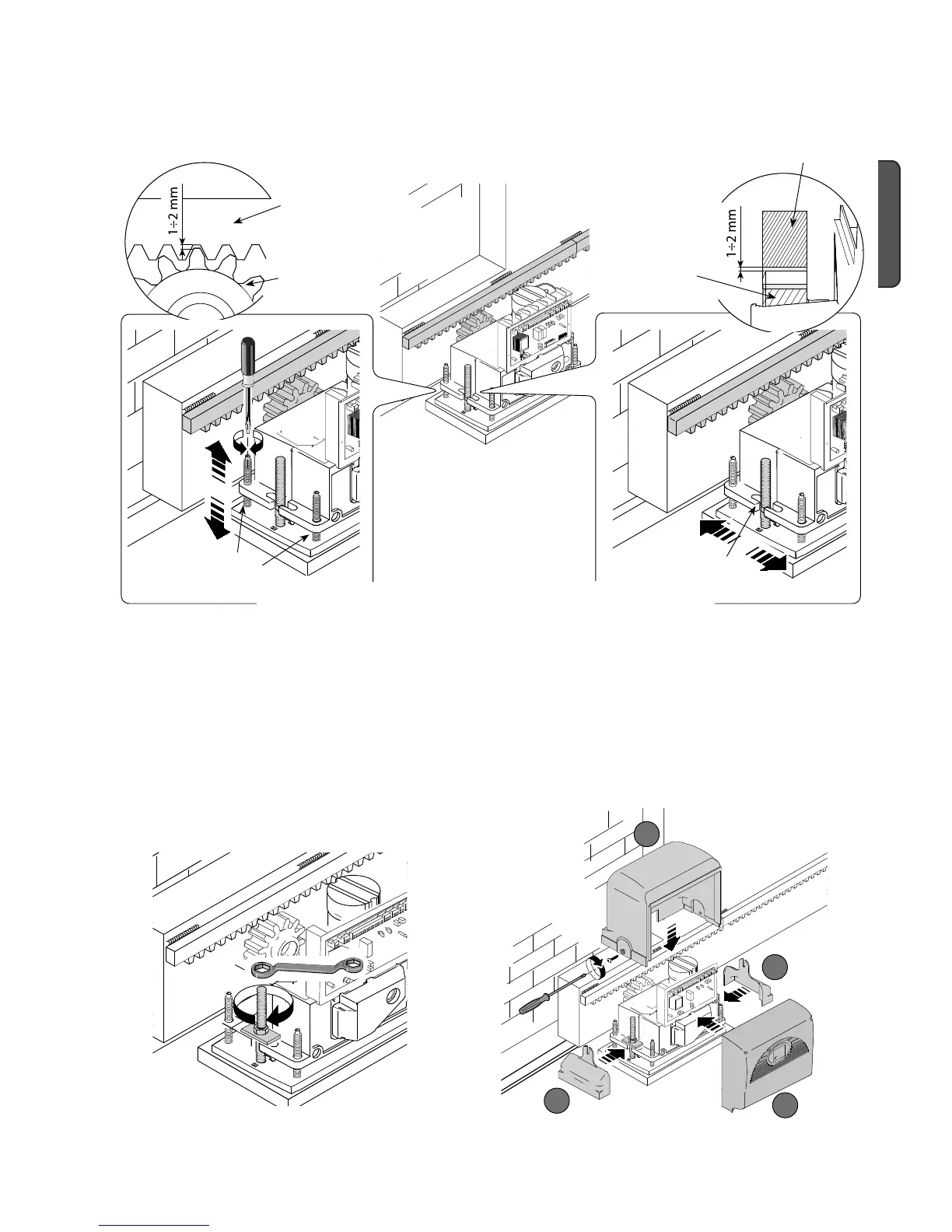

- Manually open and close the gate and adjust the distance of the pinion-rack coupling by acting on the threaded-steel feet (vertical
adjustments) and the slots (horizontal adjustments). This helps prevent the weight of the gate from bearing down on the operator.
Once adjustments are complete, fasten the assembly with nuts an bolts. Add and fasten the cover after adjustmentsand electronic
settings on card are both complete.
Feet
Slot
Rack
Pinion
Vertical adjusting Horizontal adjusting
Rack
Pinion
