Adjusting the pinion-rack coupling
Open and close the gate manually.

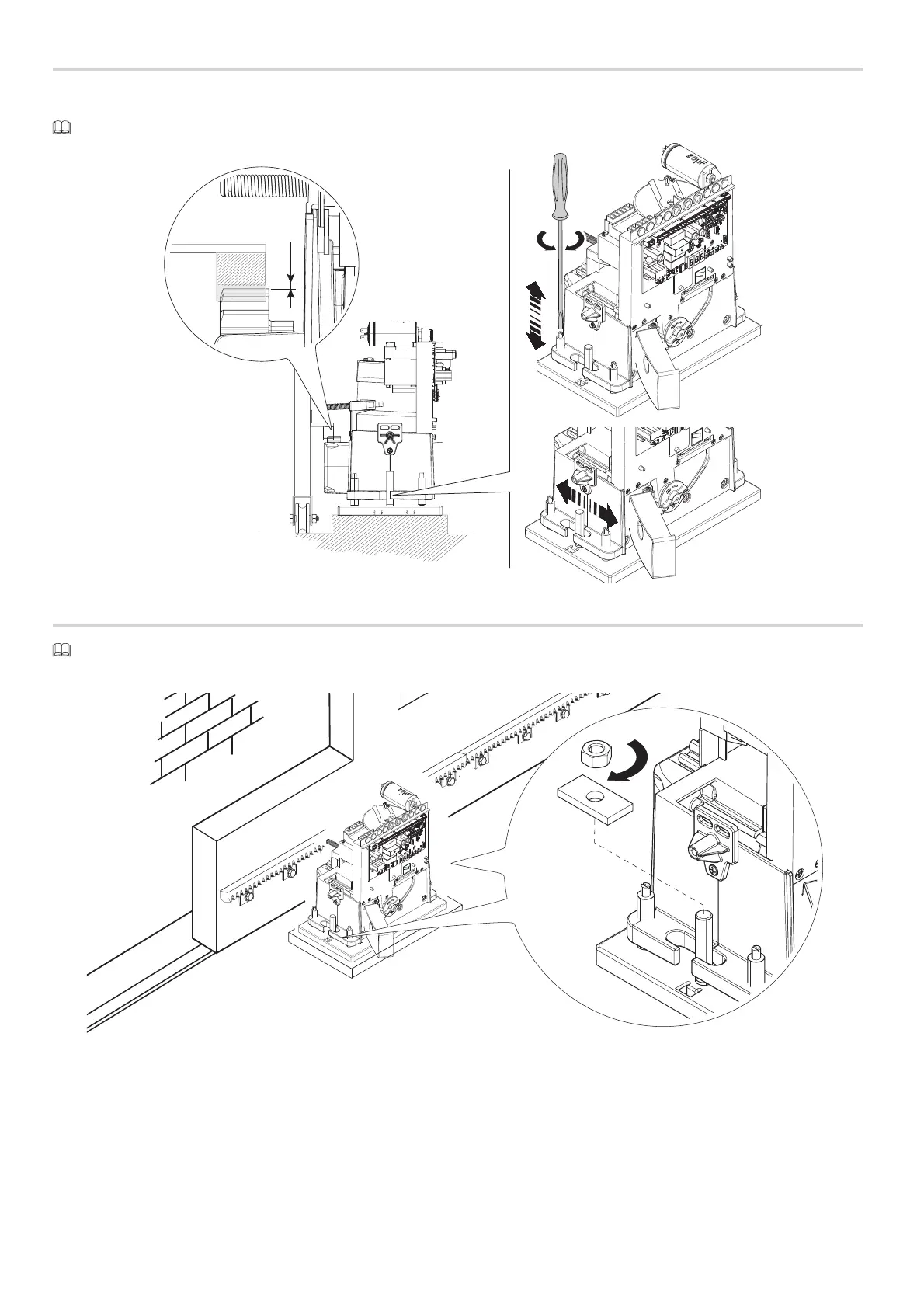

Adjust the pinion-rack coupling distance using the threaded feet (vertical adjustment) and the holes (horizontal adjustment).
The weight of the gate must not bear down upon the operator.
Fastening the operator in place
Only fasten the operator after adjusting the pinion-rack coupling.
Fasten the operator to the anchoring plate using stoppers and nuts.
