Command and control devices
1
STOP button (NC contact)
Stop the gate and exclude automatic closing. Use a control device to resume movement.
If the contact is not used, it must be deactivated during programming.
2
Control device (NO contact)
PARTIAL OPENING function
3
Control device (NO contact)
OPEN-CLOSE (step-by-step) or OPEN-STOP-CLOSE-STOP (sequential) function
4
Antenna with RG58 cable
2 3
1
4

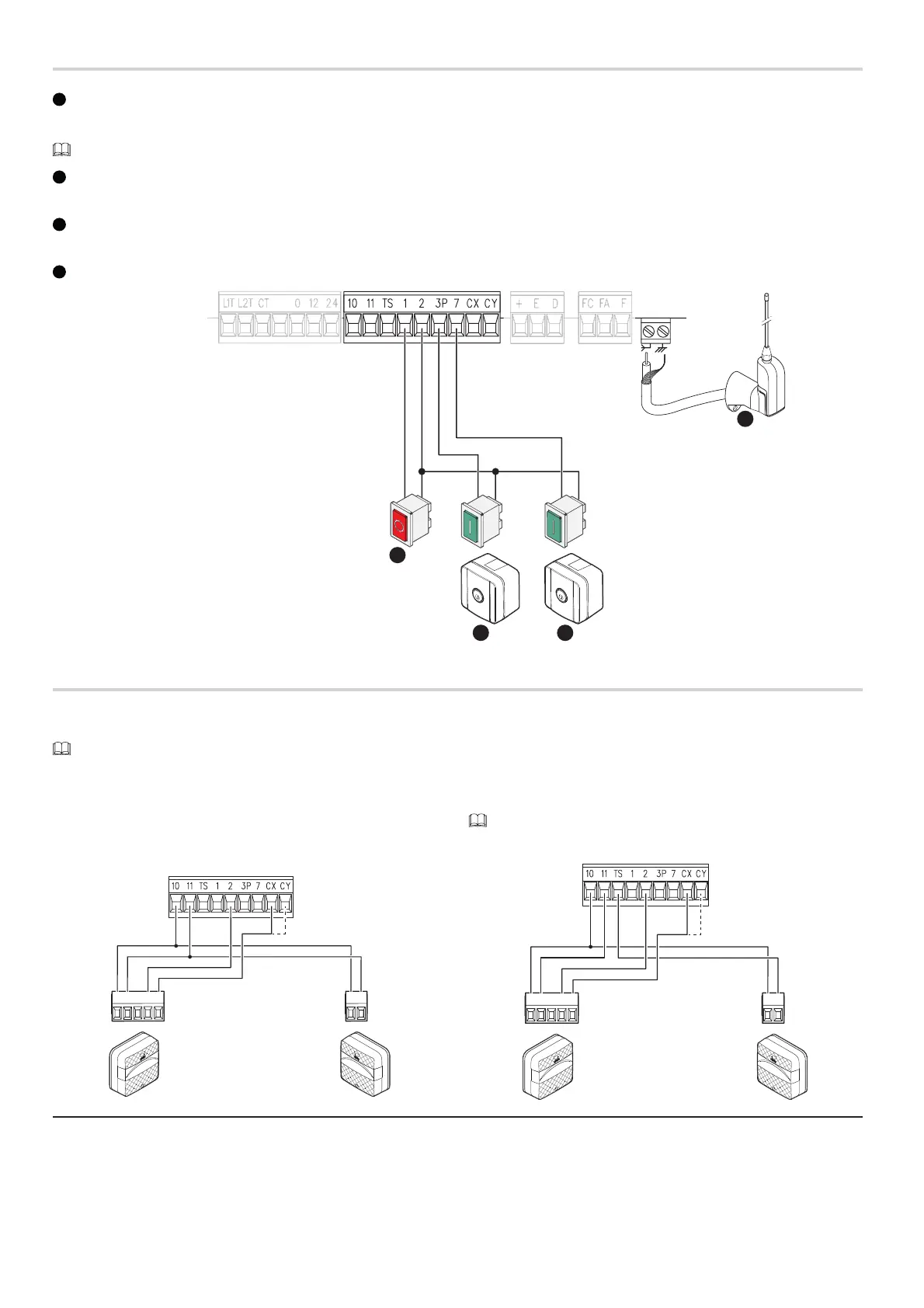

Safety devices
During programming, configure the type of action that must be performed by the device connected to the input.
Connect the safety devices to the CX and/or CY inputs.
If contacts CX and/or CY are not used, they must be deactivated during programming.
DELTA photocells
Standard connection
DELTA photocells
Connection with safety test
See function F5, safety devices test.
+
10
-
11 NO C NC
+
10
-
11
RX TX
+
10
-
11 NO C NC
+
10
-
11
RX TX
