CAME BX604AGS - Photocell Wiring; DFWN Sensitive Edge Wiring

19 - Manual FA01413-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

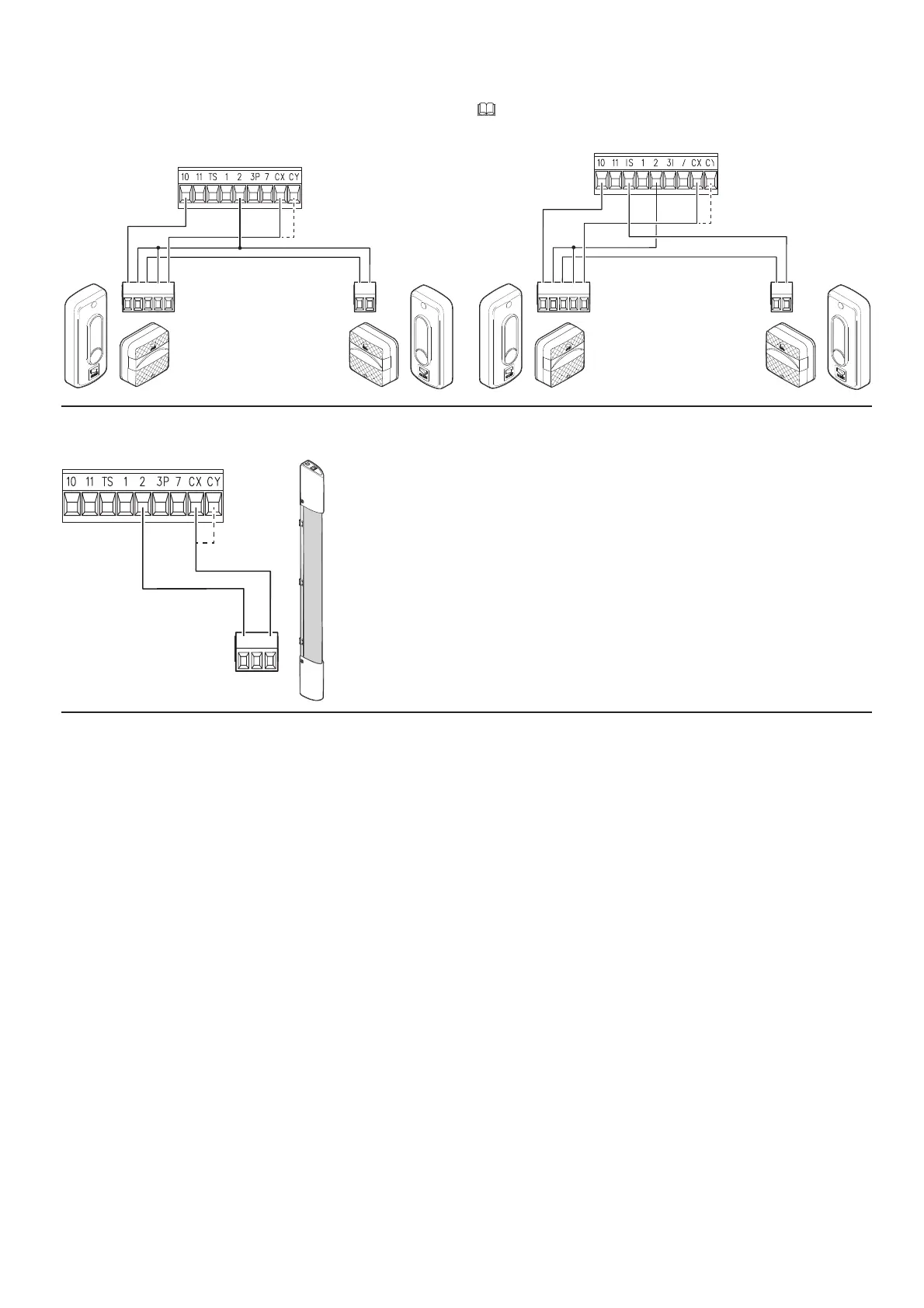

DIR / DELTA-S photocells
Standard connection
DIR / DELTA-S photocells
Connection with safety test
See function F5, safety devices test.
+
10
-
2TXCNC TX 2
RX TX
+
10
-
2TXCNC TX 2
RX TX
DFWN sensitive edge
CNONC
DFWN
