18 - Manual FA01310-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

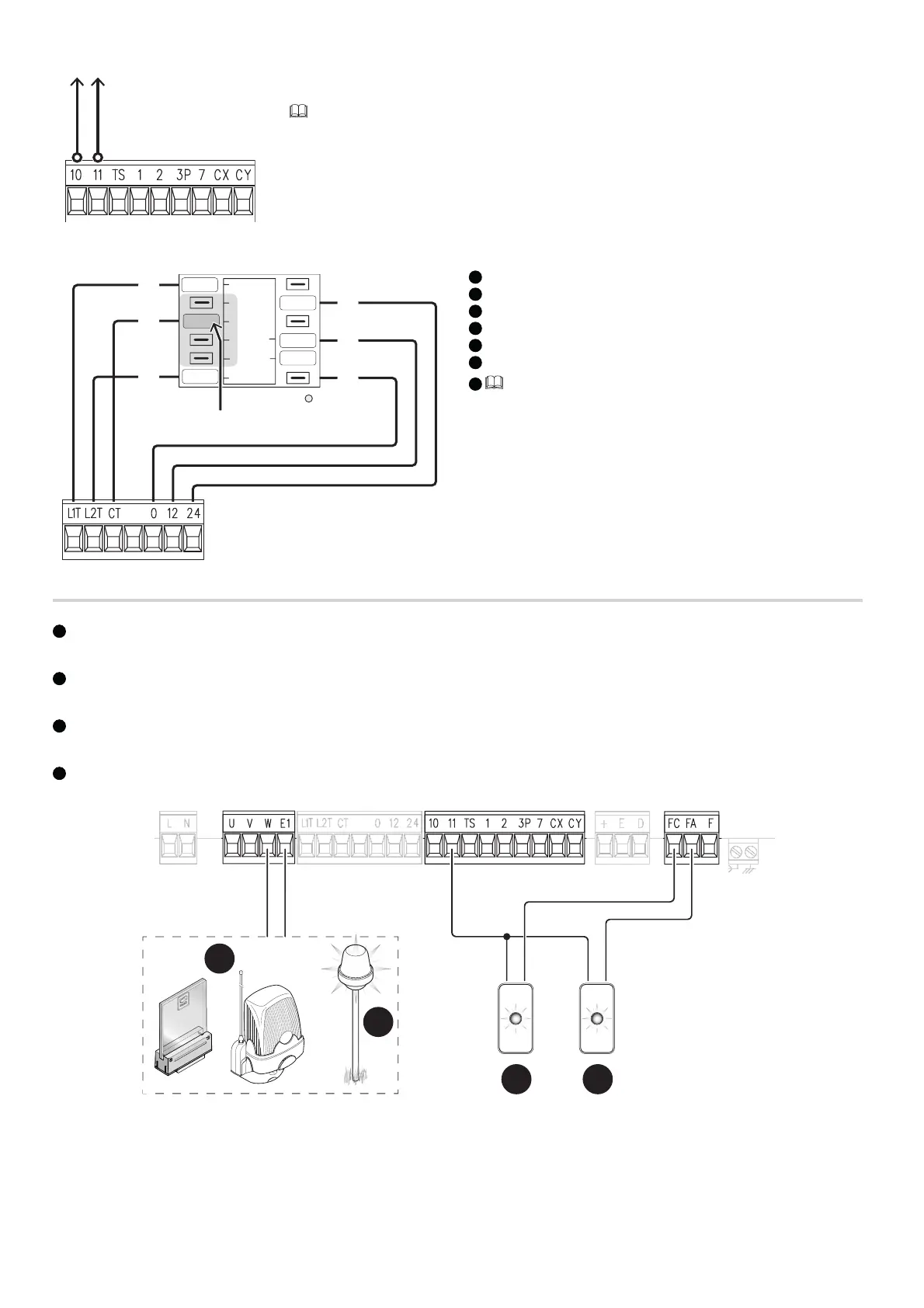

Power supply output for accessories
The output normally delivers 24 V AC.
The sum of the power draw for the connected accessories must not exceed 20 W.
Torque limiter
L2T
12
24
1
2
3
4
L1T
0
1
2
3
6
5
4
7
1
White cable
2
Black cable
3
Red cable
4
Blue cable
5
Purple cable
6
Orange cable
7
To vary the motor torque, move the corresponding Faston terminal to
one of the four positions; from 1 (minimum) to 4 (maximum).
Signalling devices
1
Flashing beacon
It flashes when the operator opens and closes.
2
Additional light
It increases the light in the manoeuvring area.
3
Operator status warning light
It indicates that the operator is in the open position.
4
Operator status warning light
It indicates that the operator is in the closed position.
1
43
2
