CAME BX704AGS User Manual

8 - Manual FA01310-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

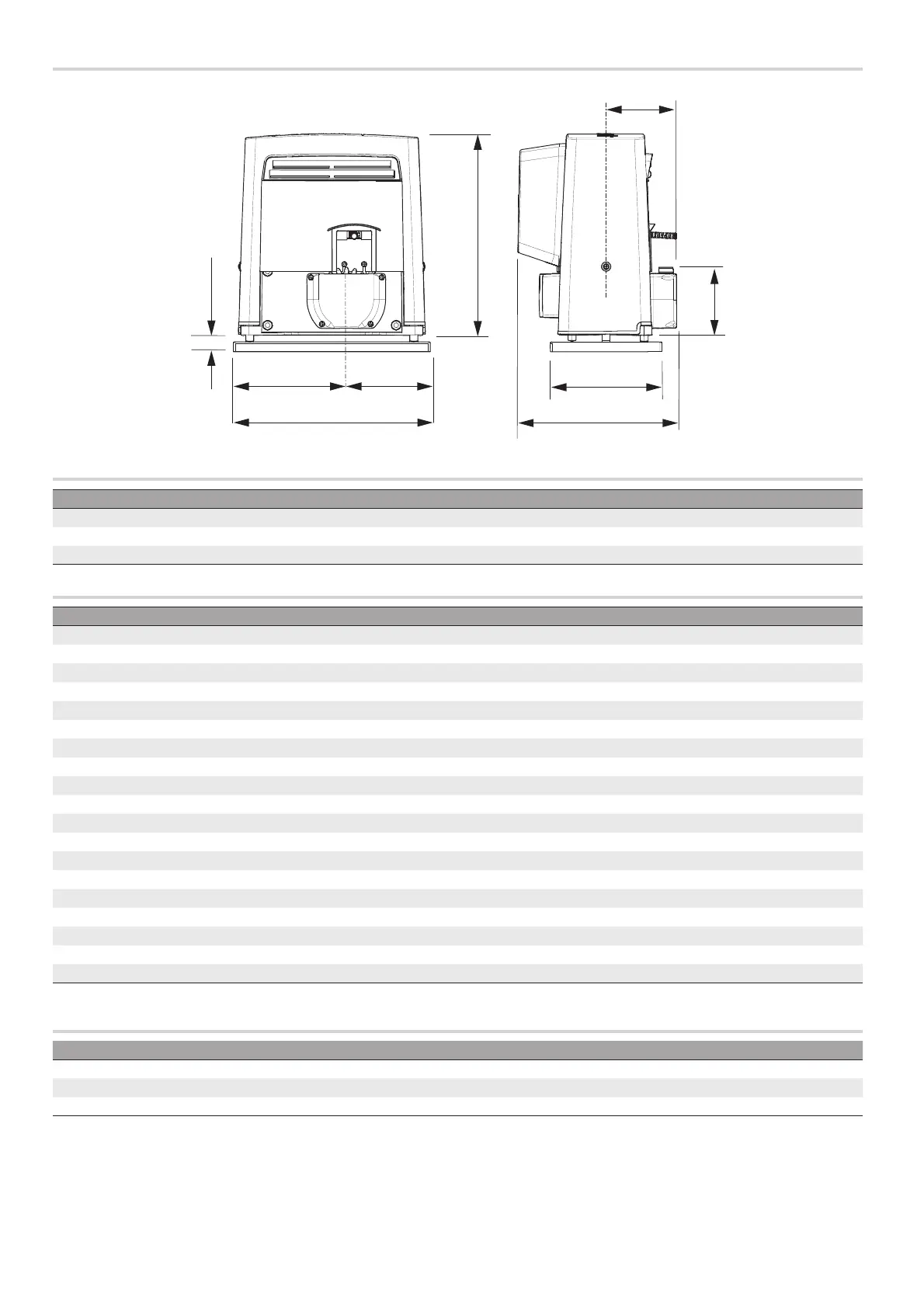

Size
170
130
300
.xam 22
307,5
105
105
170
241,5
Usage limitations
MODELS BX704AGS BX708AGS BX704ALS BX708ALS BX708RGS
Pinion module 44444
Maximum gate-leaf length (m) 14 14 14 14 14
Maximum gate-leaf weight (kg) 400 800 400 800 800
Technical data
MODELS BX704AGS BX708AGS BX704ALS BX708ALS BX708RGS
Power supply (V - 50/60 Hz) 230 AC 230 AC 230 AC 230 AC 120 AC
Motor power supply (V) 230 AC 230 AC 230 AC 230 AC 120 AC
Standby consumption (W) 55555
Standby consumption with the RGP1 (W) module 0,8 0,8 0,8 0,8 0,8
Power (W) 560 520 560 520 530
Capacitor (μF) 12 20 12 20 80
Current draw (mA) 2,7 2,5 2,7 2,5 4,5
Colour RAL 7024 RAL 7024 RAL 7040 RAL 7040 RAL 7024
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Thrust (N) 600 800 600 800 800
Maximum operating speed (m/min) 10,5 10,5 10,5 10,5 10,5
Cycles/hour 17 17 17 17 17
Consecutive cycles 66666
Duty cycle 30 30 30 30 30
Motor thermal protection (°C) 150 150 150 150 150
Sound pressure level (dB A) ≤70 ≤70 ≤70 ≤70 ≤70
Protection rating (IP) 44 44 44 44 44
Insulation class IIIII
Weight (kg) 15 15 15 15 15
Fuse table
MODELS BX704AGS BX708AGS BX704ALS BX708ALS BX708RGS
Line fuse 5 A-F 5 A-F 5 A-F 5 A-F 8 A-F
Control-board fuse 630 mA-F 630 mA-F 630 mA-F 630 mA-F 630 mA-F
Accessories fuse 1 A-F 1 A-F 1 A-F 1 A-F 1 A-F
