21 - Manual FA01310-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
PROGRAMMING

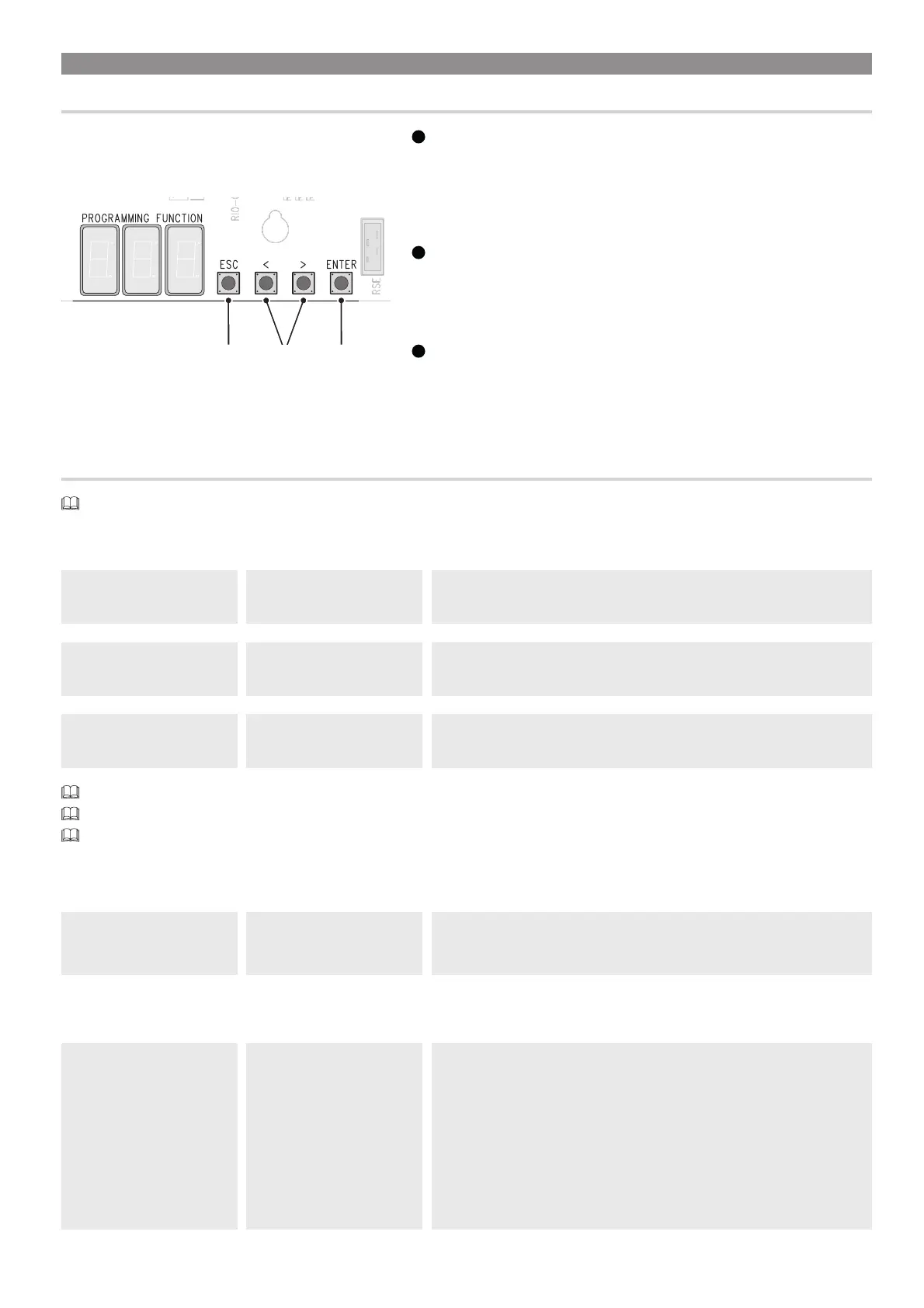

Programming button functions
1 2 3
1
ESC button
The ESC button is used to perform the operations described below.
Exit the menu
Delete the changes
Go back to the previous screen
Stop the operator
2
< > buttons
The <> buttons are used to perform the operations described below.
Navigate the menu
Increase or decrease values
Open or close the operator
3
ENTER button
The ENTER button is used to perform the operations described below.
Access menus
Confirm a choice
Getting started
Once the electrical connections have been made, proceed with commissioning. Only skilled and qualified staff may perform this operation.
Make sure that there are no obstacles in the way.
Power up the device and begin programming.
Start programming with the functions indicated below.
F54 Opening direction Set the gate opening direction.
F1 Total stop Stop the gate and exclude automatic closing. Use a control device to resume
movement.
A3 Travel calibration Start the travel self-learning.
After powering up the system, the first manoeuvre is always to open the gate; Wait for the manoeuvre to be completed.
Press the STOP button immediately in the event of any faults, malfunctions, strange noises or vibrations, or unexpected behaviour in the system.
If the three display segments are flashing, calibrate the travel.
Total stop
Stop the gate and exclude automatic closing. Use a control device to resume movement.
F1 Total stop OFF (Default)
ON
CX input
Associate a function with the CX input.
F2 CX input OFF (Default)
C1 = Reopen while closing (photocells)
C2 = Reclose while opening (photocells)
C3 = Partial stop Only with [Automatic close] activated.
C4 = Obstacle standby (photocells)
C7 = Reopening during closure (sensitive edges)
C8 = Reclose while opening (sensitive edges)
R7 = Reopen while closing (sensitive edges with 8K2 resistor)
R8 = Reclose while opening (sensitive edges with 8K2 resistor)
