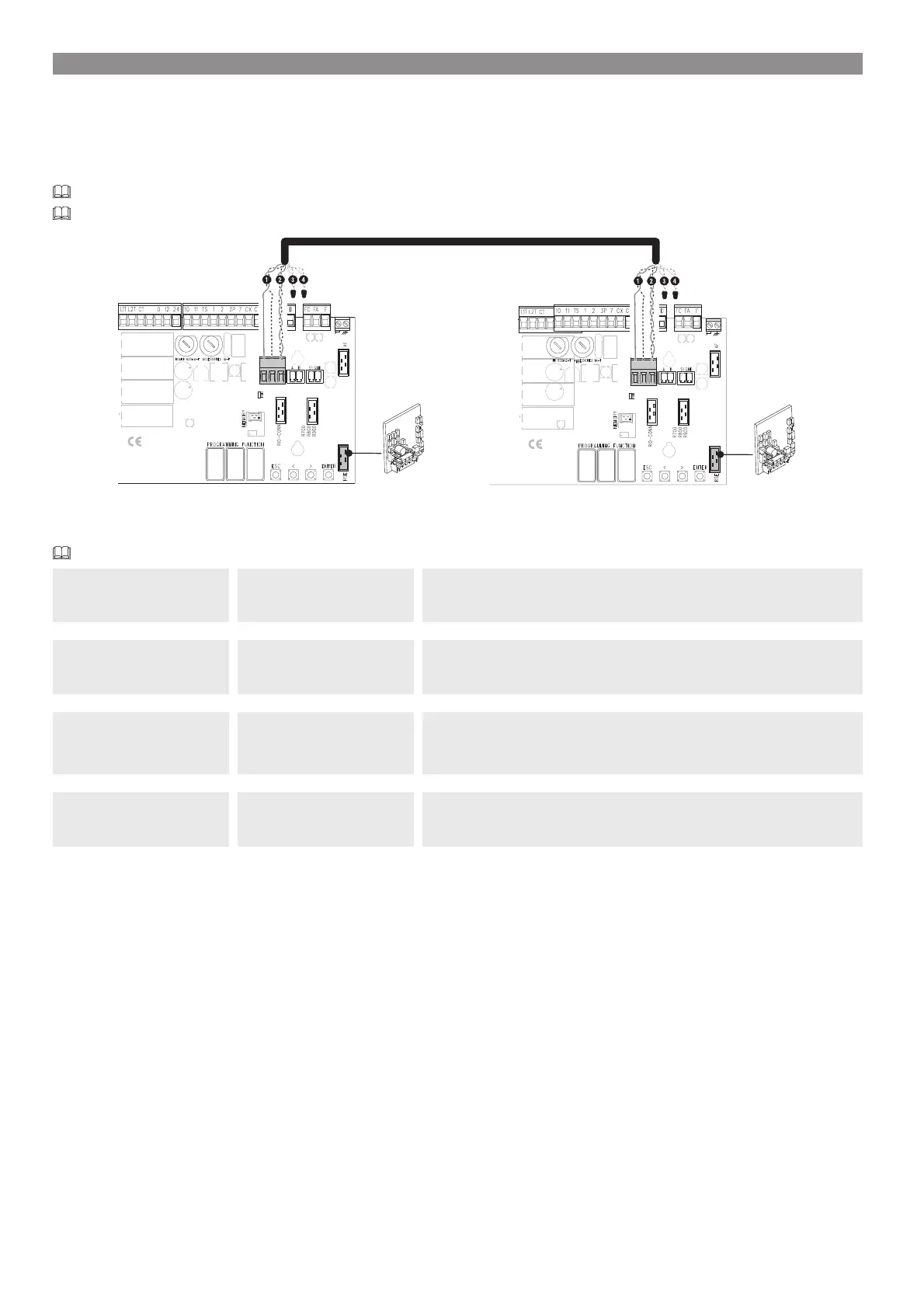

PAIRED OPERATION
Two connected operators are controlled with one command.
Electrical connections
Connect the two electronic boards with a UTP CAT 5 cable.
Insert an RSE card into both control boards.
Connect up the electrics for the devices and accessories.
The devices and accessories must be connected to the control board which will be set as the MASTER.
For information on connecting the electrics for the devices and accessories, please see the “ELECTRICAL CONNECTIONS” section.
RSE
A B GND
UTP CAT5 (max 1000m)
RSE
A B GND
Programming
All programming operations described below must be performed only on the control board set as the MASTER.
F49 RSE Configure the function to be performed by the card inserted in the RSE connector.
F54 Opening direction Set the gate opening direction.
F52 Transferring MASTER-SLAVE
parameters
Enable sharing for the parameters programmed on the master gate with the slave gate.
A3 Travel calibration Start the travel self-learning.
