MASTER SLAVE
MASTER SLAVE
p. 27 - Manual FA01719 -EN - 03/2022 - © CAME S.p.A. - Translated original instructions
PAIRED OPERATION
Electrical wiring
Important! Start by performing the following procedures on both operators:
- plugthe RSE card into the connector on the control panel of both operators;
Connect the two control panels to a CAT 5-type (max. 1,000 m) cable onto terminals A-A / B-B / GND-GND, see
the PAIRED OPERATION paragraph;
- connect all of the control and safety devices on the MASTER operator's control panel.
Saving users
Execute the procedure, to add a user with an associated command, on the MASTER panel.
Programming
Start by performing the following settings only on the MASTER control panel:
- select 1 (paired mode) from the F49 function and press ENTER to confirm;
- select the opening direction from the F54 function and press ENTER to confirm;
- select ON from the F52 function and press ENTER to confirm the transferring of the parameters to paired mode.
Proceed with the next settings and adjustments only on the MASTER control panel.
The programming keys on the SLAVE control panel are disabled.

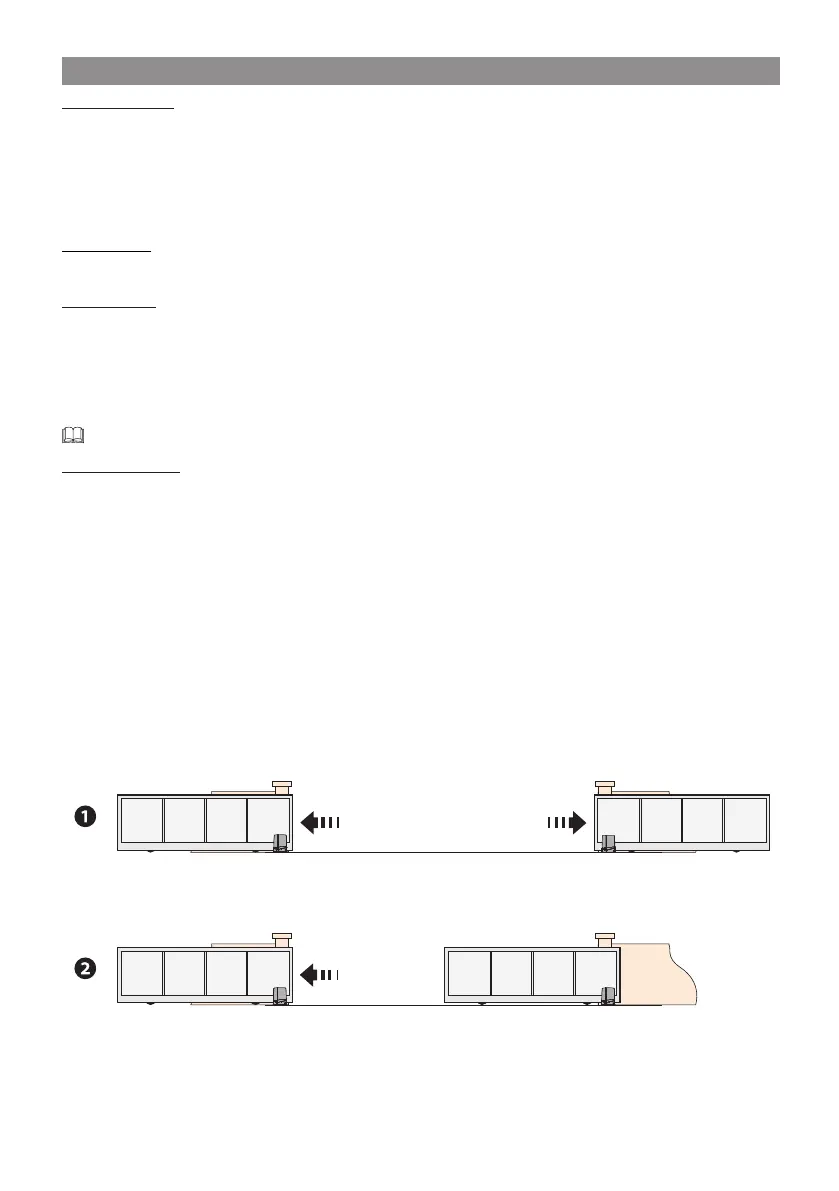

Operating modes
Either STEP-STEP or ONLY OPEN command. Both leaves open.
PARTIAL/PEDESTRIAN OPENING command. Only the MASTER operator's leaf opens.
For the types of command that can be selected and paired to users, see the ENTERING USERS WITH ASSOCIATED
COMMANDS.
