ERROR AND WARNING MESSAGES
The error messages appear on the display.
E 1 The travel calibration was interrupted when the STOP button was activated
E 2 Gate-leaf travel calibration incomplete
E 3 Encoder broken
E 4 Services test error
E 7 Insucient operating time
E 8 The NC contacts are open (for example, the limit-switches)
E 9 Closing obstruction
E 10 Opening obstruction
E 11 Maximum number of detected obstructions
E 14 Serial communication error
E 15 Incompatible transmitter error
E 17 Wireless system error
E 18 The wireless system configuration is missing
C0 Wired contact 1-2 (NC) is open
C1, C2, C3, C4 The wired photocell contacts (NC) are open
C7, C8 The wired sensitive-edge contacts (NC) are open
P0 The wireless radio stop contact (NC) is open
P1, P2, P3, P4 The wireless radio photocell contacts (NC) are open
P7, P8 The wireless radio sensitive-edge contacts (NC) are open
--- Control board has no travel auto-learning

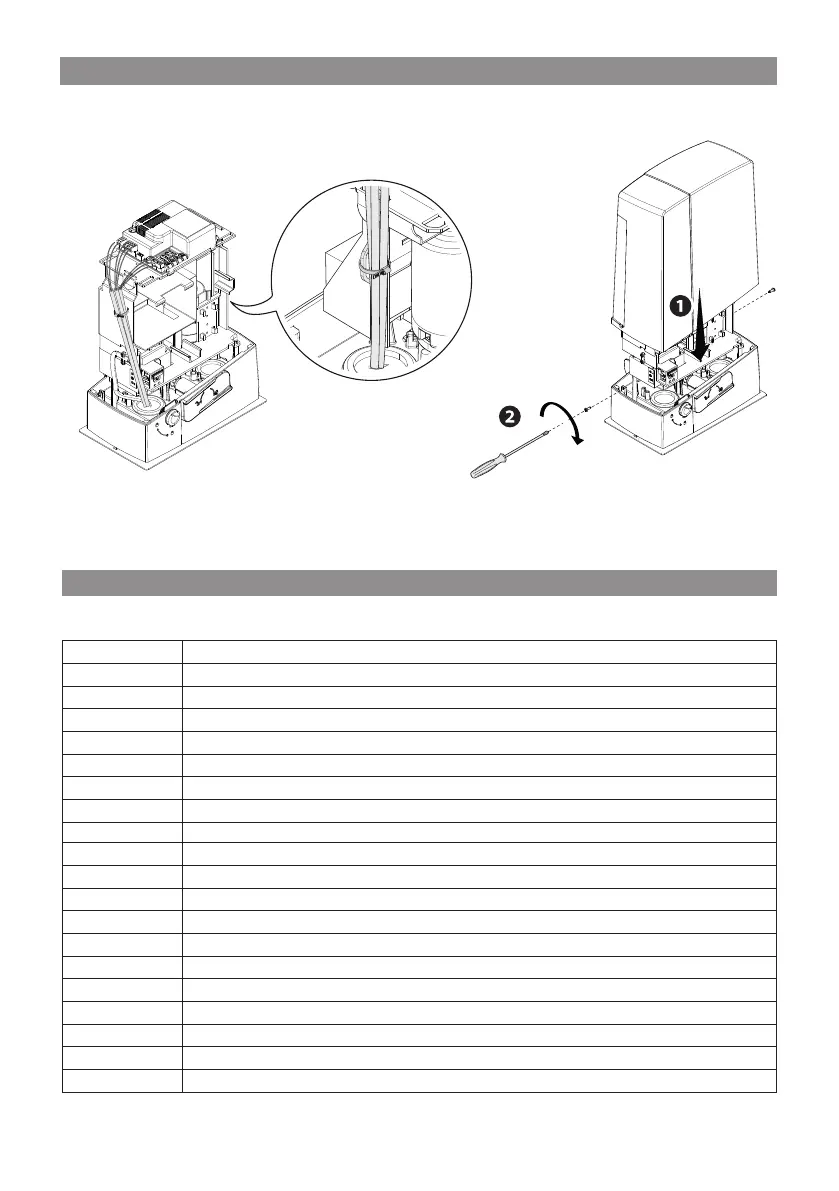

FINAL OPERATIONS
Once the electrical connections are done and the set up is finished, fasten the cables to the gearmotor jumper
using a cable tie.
Fit the cover and fasten it to the sides using the screws.
