Spring

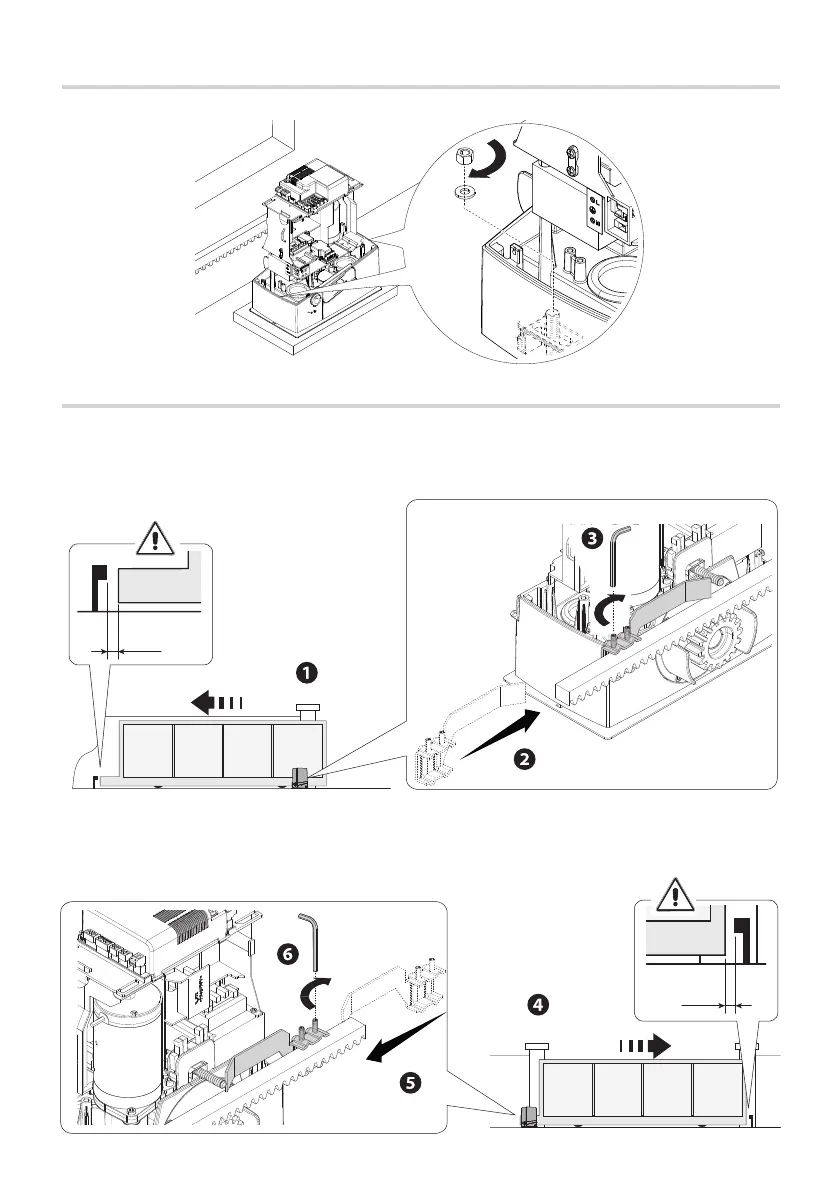

For closing:
- close the gate ;
- fit the closing limit-switch fin into the rack until the micro-switch is activated (spring) and fasten it using the
grub screws .
ESTABLISHING THE LIMIT-SWITCH POINTS
For opening:
- open the gate ;
- fit the opening limit-switch fin onto the rack until the micro switch activates (spring) and fasten it using the
grub screws .
FASTENING THE GEAR MOTOR
Complete the adjusting, fasten the gearmotor to the plate using the washers and nuts.
