7
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
ENGLISH

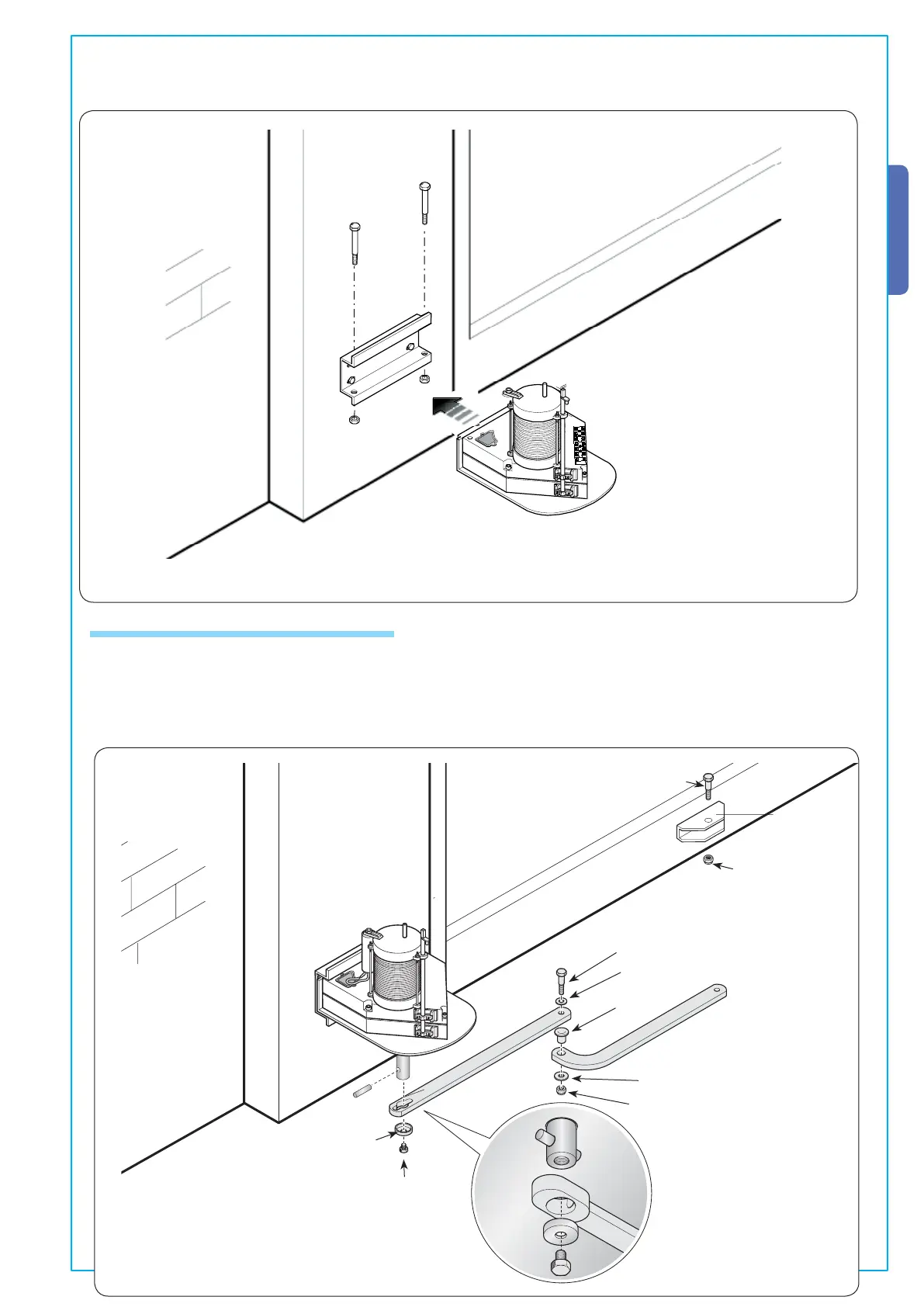

Insert the gearmotor into the base plate’s 4 holes and secure it using the two supplied M8x90 screws and relative M8 nuts.
M8x90
M8
(4)
- Insert and secure the straight arm into the gearmotor shaft including the pin with screw and relative spacer. Lubricate the
bushing and insert the straight arm, joining it to the curved arm using the screw, washers and nut. Release the gearmotor
and secure the curved arm to bracket ‘A’ using the screw and relative nut, making sure the arm runs freely. For the right hand
application see fi g. 2.
M12x40
M12
M10x14
Spacer
"Bracket A"
5.7 Applying the articulated arm
M12x55
ø 12
Bushing
ø 12
M12
