The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.
6
ENGLISH

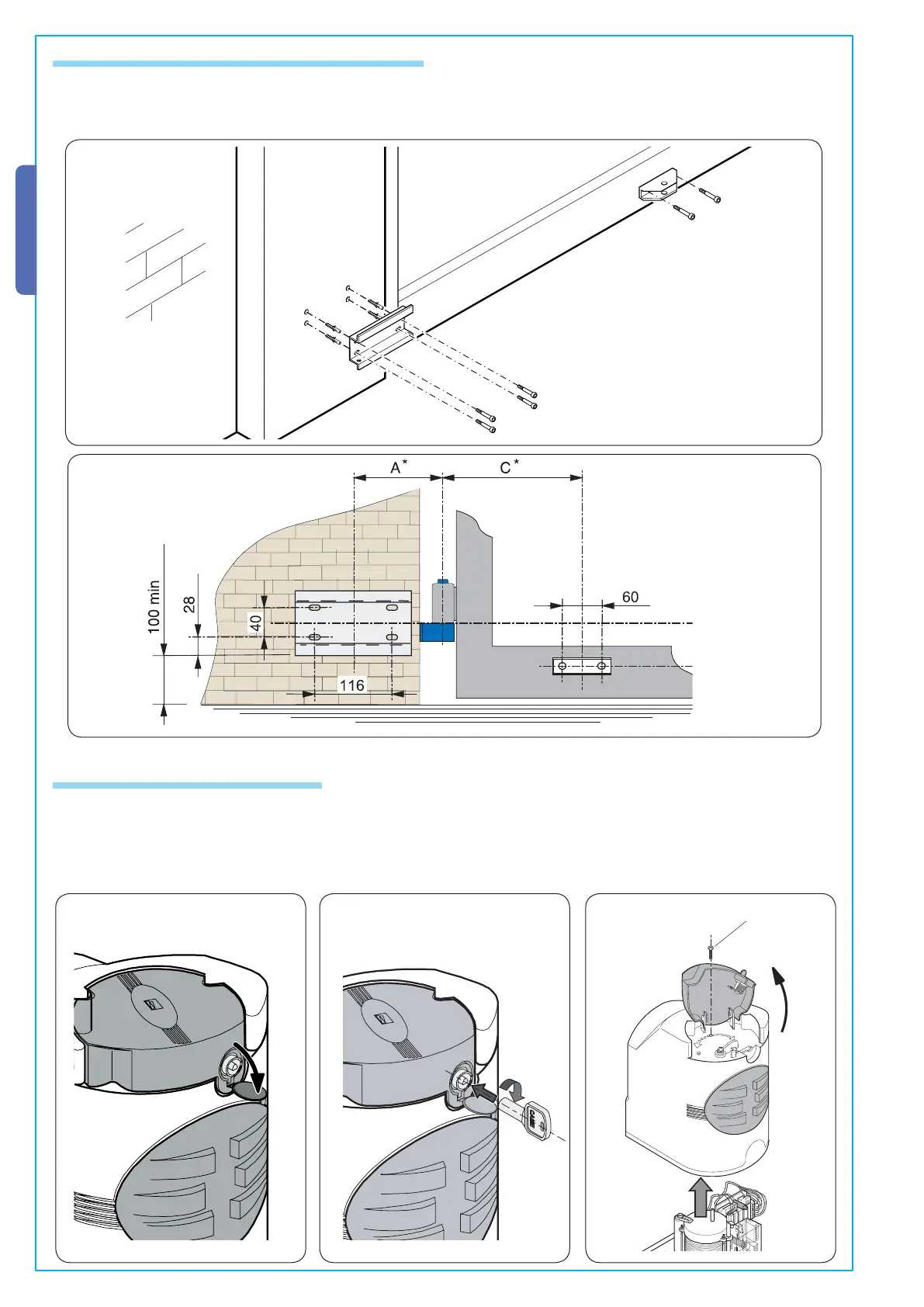

5.5 Applying the base plate and A bracket
- Secure the base plate to the pillar using M8 screws and ø14 mould inserts making sure the minimum distance of 100 mm is
from the ground is met.
- Secure the A bracket (using M6 screws or by welding) to the gate leaf making sure the C 68mm distance measurements and
are met.
ø 14
M8
M6
Base plate
Bracket “A”
Open the lock cover (1).
Insert the key, push it down and turn it clockwise (2).
Lift the cover, loosen the Ø 3,9x13 screw and remove the cover from the gearmotor assembly (3).
(1)
Ø3,9x13
(1) (2) (3)
5.6 Installing the gearmotor
* Vedi “Quote base”, pag. 3
