1.5 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

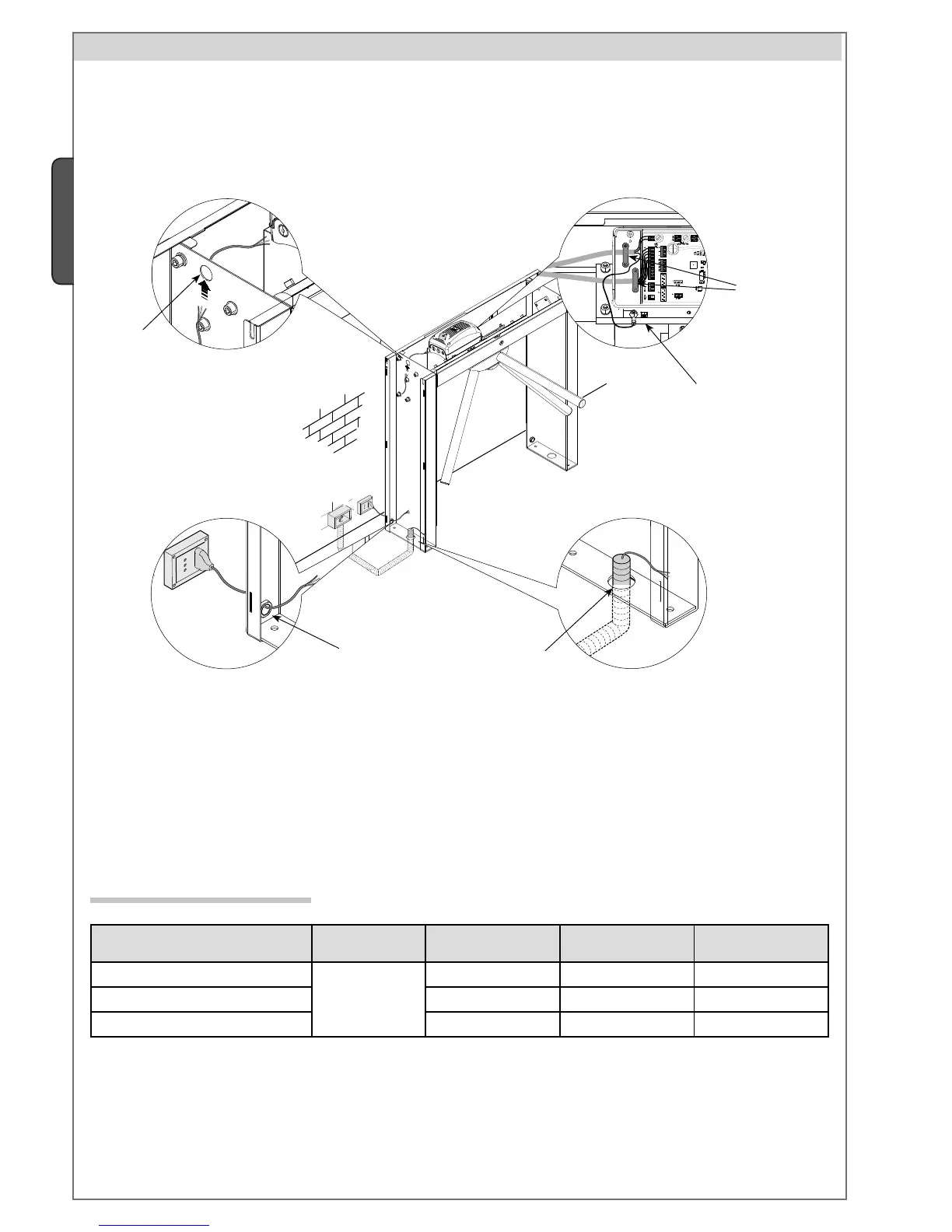

7 Electric cabling
Use the proper cable clamps to secure
the cables inside the box in the control
panel.
Threading the power supply (and that
of any accessories) cable through the
bottom plate of the turnstile leg.
Pass the cable through the hole in the
top of the turnstile leg.
Threading the power supply cable (al-
ternatively to the hole on the base plate)
through a cable gland at the bottom of
the turnstile leg.
Earth
Cable clamps
Hole
Hole
7.1 Cable types and sections
N.B. If the cable length differs to that shown in the table, determine cable section based on the actual power draw by the connected
devices and according to what is prescribed by law CEI EN 60304-1.
For sequential connections on the same line, length-measurements by the table must be converted on the basis of draw and actual
distances. To connect any products not mentioned in this manual, see documentation provided with said products.
Cable clamps
Connections Cable types
Cable length
1 < 10 m
Cable length
10 < 20 m
Cable length
20 < 30 m
Power to electrical panel 230 V
FROR CEI 20-22
CEI EN
50267-2-1
3G x 1,5 mm
2
3G x 1,5 mm
2
3G x 1,5 mm
2
Power to accessories 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 1 mm
2
Command and safety devices 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
