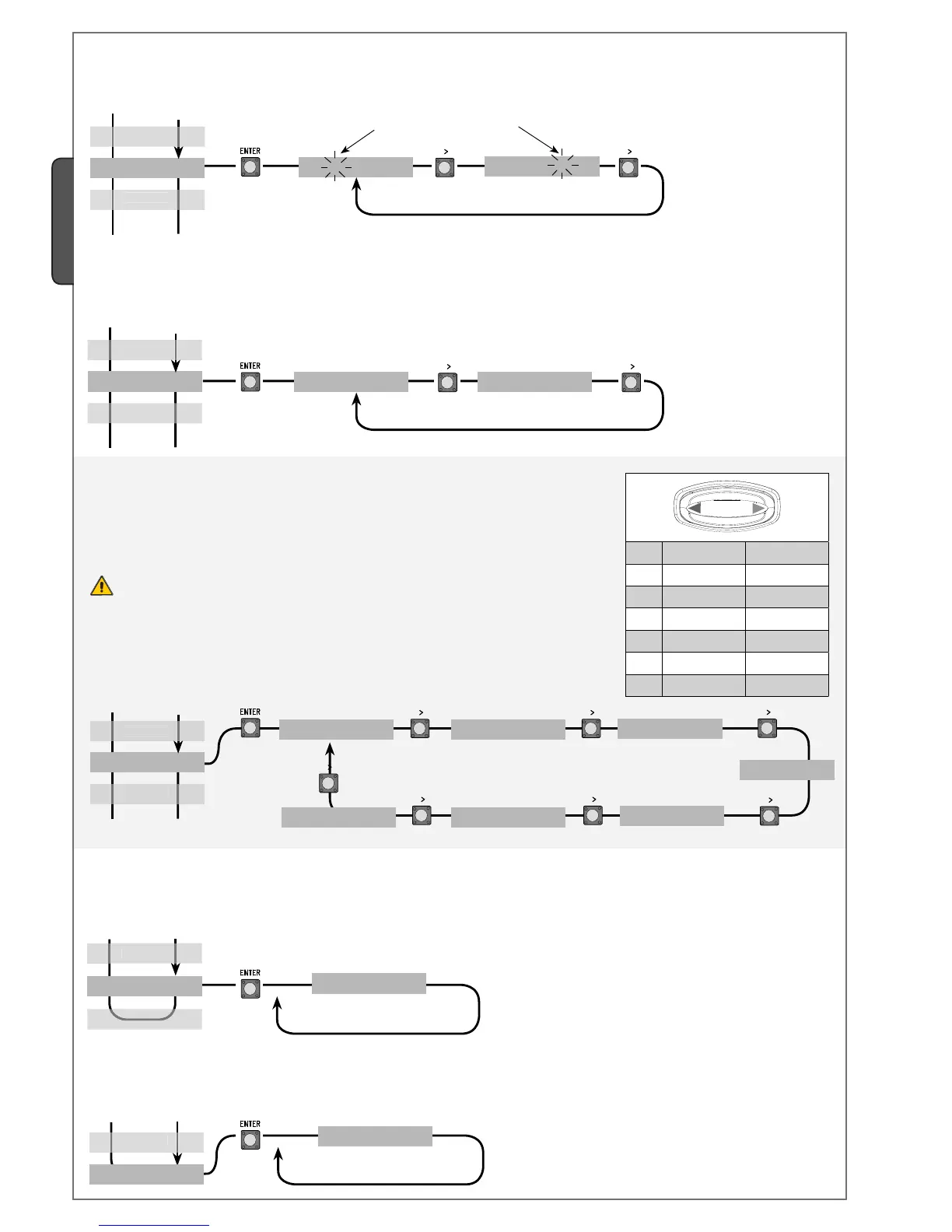

Function 13: Setting the direction for the passage counter.
Assign to the turnstile the direction for which the counter records the entrances set by function “F-8”. The flashing arrow indicated
the direction.
Function 14: Antipassback mode.
Activate or deactivate the Antipassback functions.
Prevents entering an area when the person is already inside. It can be used to prevent using the same pass for two or more conse-
cutive accesses to the same area: for example in a gym, to prevent clients entering with the personal pass of a client who is already
inside.
Funzione 16: Data recording in the memory roll.
It saves registered users and data settings in the memory roll.
Funzione 17: Data reading in the memory roll.
It loads registered users and data settings in the memory roll.
Intermittent arrow
Function 15: Differentiated passage mamangement.
Free = free passage for all users (Green Arrow).
Blocked = passage not allowed to all users (Red Arrow)
Controlled = passage allowed only to cleared users (Green Intermittent Arrow).
OFF = passaggio consentito solo a utenti abilitati su entrambe le direzioni (Freccie ros-
se).
Attention: when one of these 6 functions is activated, the antipassback function (Function 14)
and the maximum number of transits (Function 8) are deactivated.
12 :30
OFF Controlled Controlled
-1- Free Blocked
-2- Blocked Free
-3- Controlled Blocked
-4- Blocked Controlled
-5- Controlled Free
-6- Free Controlled
