CAME SDN10 User Manual

L
N
M
10 11 E 24 0
M N
+ E -
FC FA F
10 11 E 5
p.
13
13 - Manual code
FA 00 014- EN
FA00014-EN v.
3
3
04/2016 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

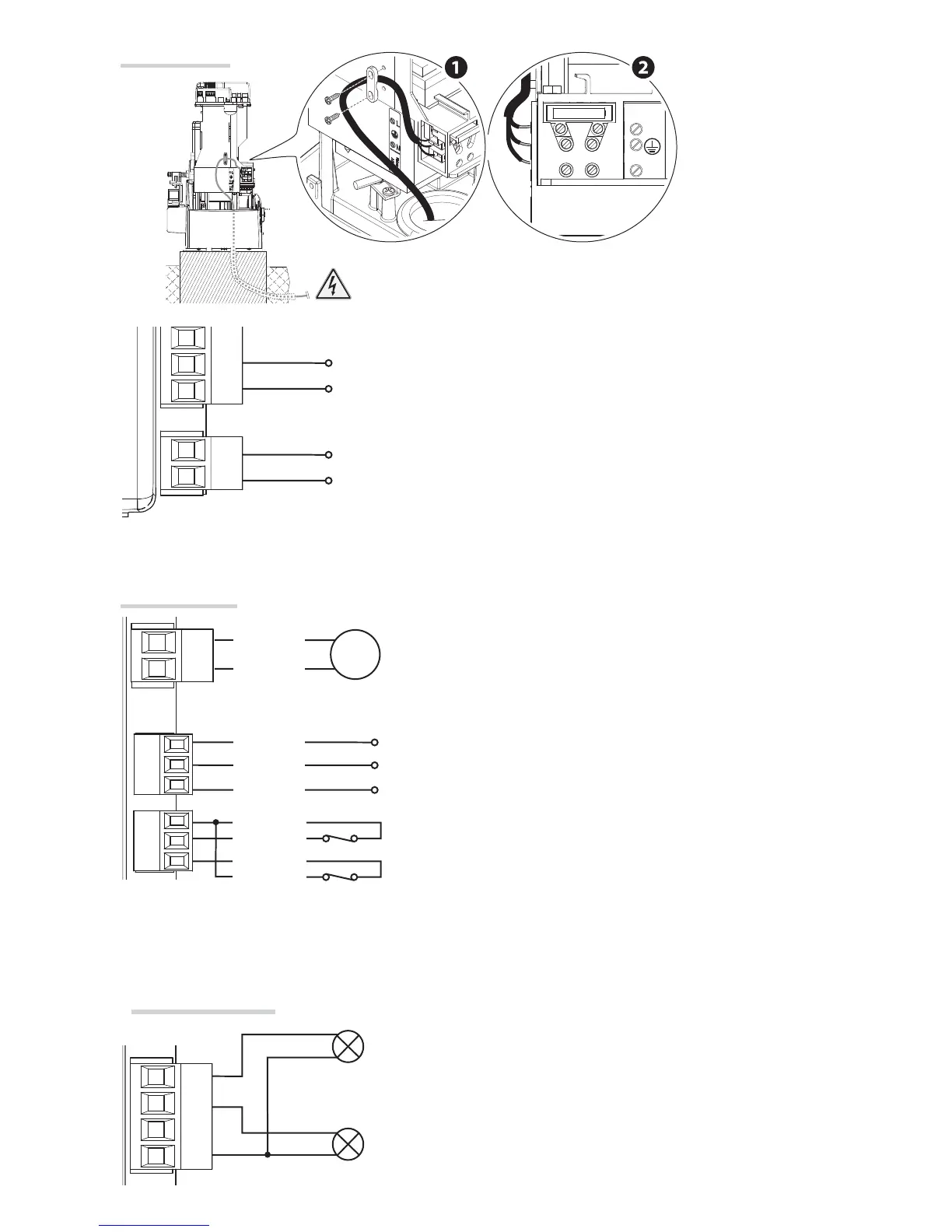

Power supply
Signaling devices
24 V DC gearmotor
Green
Brown
White
Factory wiring
Opening limit-switch (NC contact)
Closing limit-switch (NC contact)
230 V AC - 50/60 Hz
24 V AC/DC control board power-supply input
24 V AC/DC - max 40 W accessories power-supply output
Either fl ashing light or cycle light connection output
(Contact rated for: 24 V AC/DC - 25 W max)
See function F 18.
Gate open signaling output
(Contact rated for: 24 V AC/DC - 3 W max)
See function F 10.
Encoder
Orange
White
Red
Orange
Green
Red
