DFW with control board of the

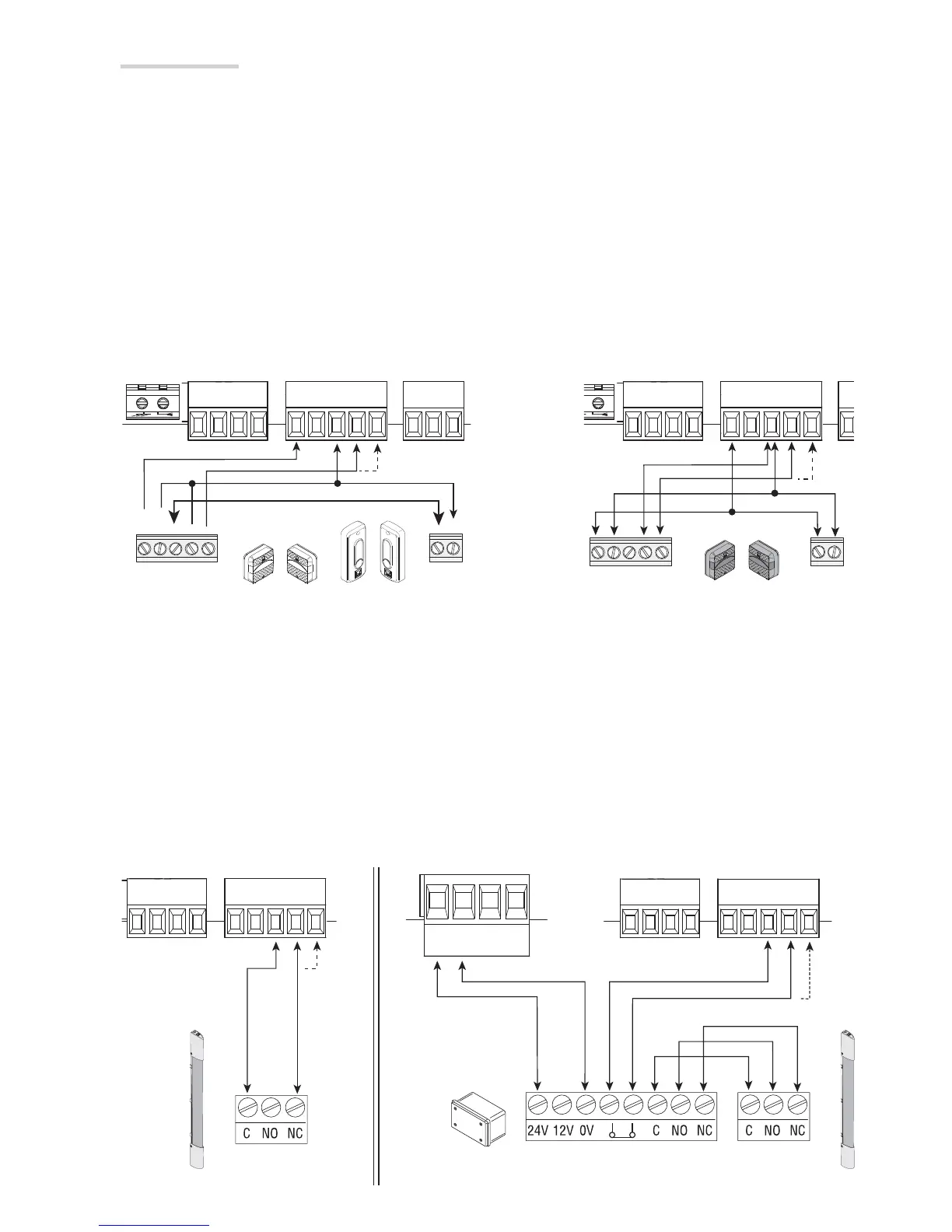

DFI connections
Sensitive Safety Edges
Confi gure contact CX or CY (NC), input for safety devices such as sensitive safety-edges, that are EN 12978
regulation compliant.
See CX input functions (Function F2) or CY (Function F3) in:
- C7 reopening during closing. when the gate is closing, opening the contact causes the inversion of movement
until opening is complete;
- C8 reclosing during opening. When the gate is opening, opening the contact triggers the inversion of movement
until the gate is fully closed.
 If contacts CX and CY are not used they should be deactivated during programming.
Safety devices
Photocells
Confi gure contact CX or CY (NC), input for safety devices such as photocells, which comply with EN 12978
regulations.
See CX input functions (Function F2) or CY (Function F3) in:
- C1 reopening during closing. when the gate is closing, opening the contact causes the inversion of movement
until opening is complete;
- C2 close back up during opening. When the gate is opening, opening the contact triggers the inversion of
movement until the gate is completely closed.
- C3 partial stop. Stopping of the gate, if it is moving, with consequent automatic closing (if the automatic closing
function has been entered);
- C4 obstacle wait. Stopping of the gate, if it is moving, which resumes movement once the obstruction is removed.
 If contacts CX and CY are not used they should be deactivated during programming.
