CAME SDN10 User Manual

A B GND
UTP CAT 5
A B GND
1 2 3 4
1
2
3
4
RSE
RSE
TX 2
TX 2 10 2 TX C
+
-
NC
FC FA F
10 TS 2 CX CY
1 2 3P 7
-
+
-
DELTA-S DIR
F
C
10 TS 2 CX CY
1 2 3P 7
TX 2
+- + - NO C NC
DELTA
RIO-CONN
RIO-CONN
RIO-CELLRIO-EDGE RIO-LUX
RX TX RX TX
p.
16
16 - Manual code
FA 00 014- EN
FA00014-EN v.
3
3 04/2016 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

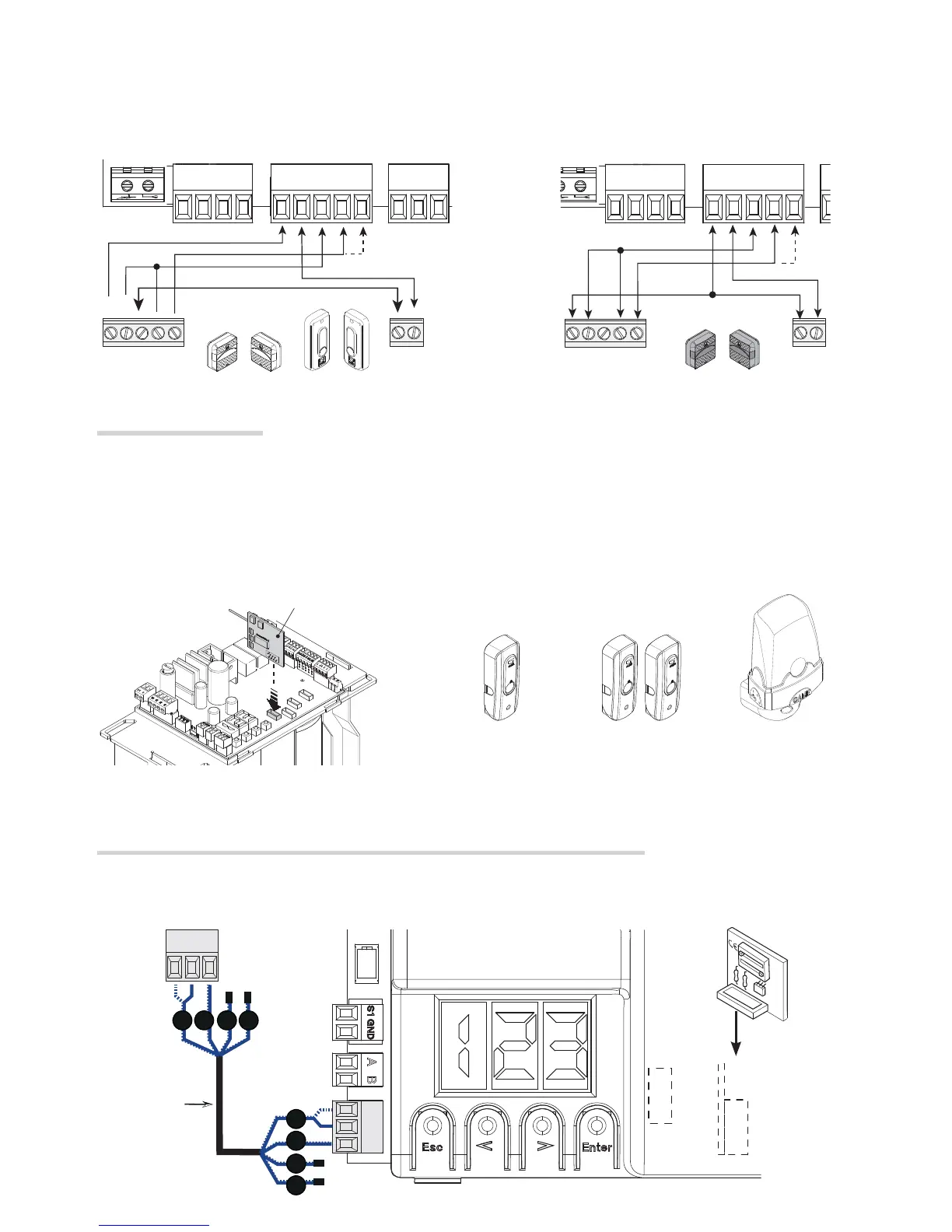

Connecting the safety devices (i.e. the safety test)
At each opening and closing command, the control board checks the e cacy of the safety devices (such as,
photocells).
Any malfunction inhibits any command and is signaled on display E4.
Enable function F5 in programming.
See the PAIRED CONNECTION WITH
SINGLE CONTROL chapter.
Connection for paired operation and for CRP (Came Remote Protocol)
Fit the RSE card.
Rio Wireless devices
Fit the RIO-CONN card into the corresponding connector on the control board.
Set the function to be associated to the wireless device (F65, F66, F67 e F68).
Confi gure the RIO-EDGE, RIO-CELL and RIO-LUX wireless devices by following the indications shown in the folder
enclosed with each accessory.
 If the devices are not confi gured with the RIO-CONN card, the E18 error message appears on the display.
⚠
If there are any radio-frequency disturbances to the system, the wireless system will inhibit the normal operation
of the operator, and this error will show up on the display as E17.
