CAME TS07 User Manual

AL
B
❾
❼ ❽
⓫❿
Page 3 - Manual code: FA00771-EN vers. 1 05/2017 © CAME S.p.A. - The data and information in this manual are to be considered subject to change at any time and without the need for any advance warning.
Page
2 - Manual code: FA00771-EN vers. 1 05/2017 © CAME S.p.A. - The data and information in this manual are to be considered subject to change at any time and without the need for any advance warning.
Notes:
• The device automatically recognises the local or PoE power supply.
• The MicroSD Card slot ⓫ is only for use by technical support.

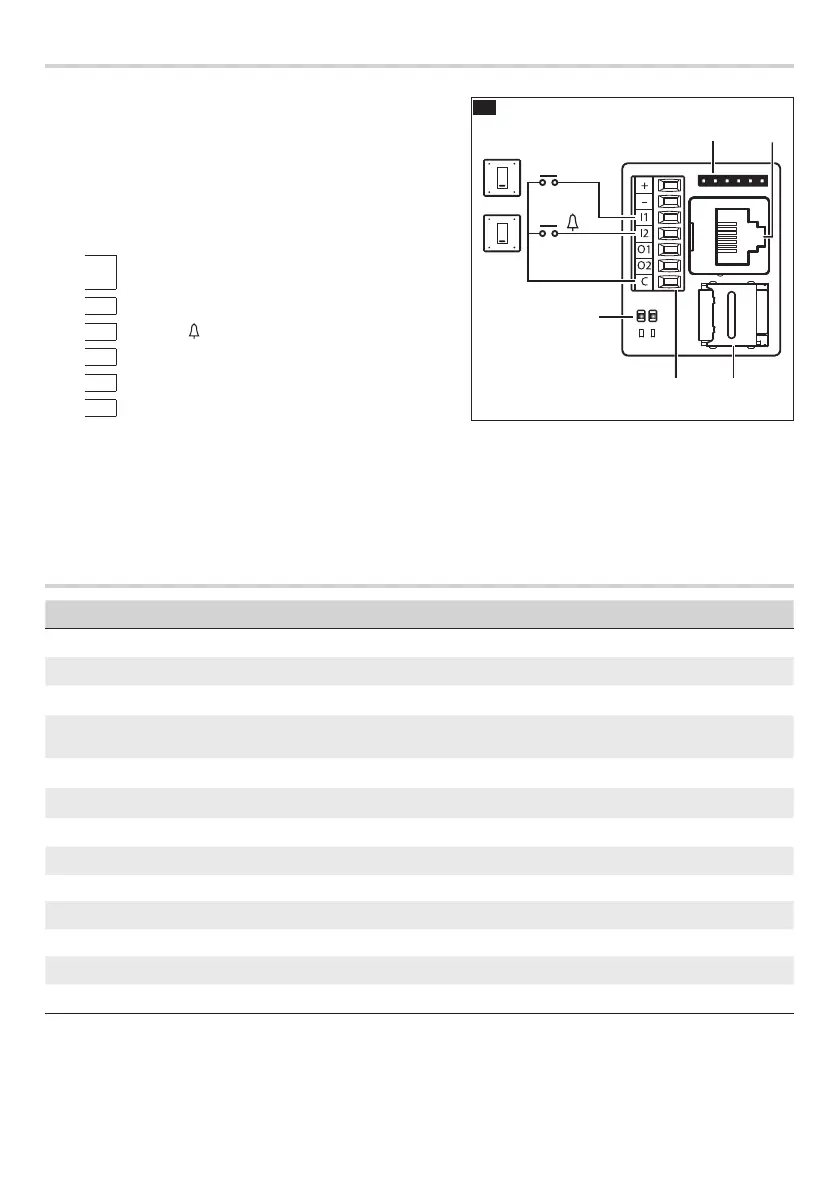

Rear side
Technical features
Type TS07 TS10 TS07 Wi-Fi TS10 Wi-Fi
Power supply (V DC) 12 to 24 12 to 24 12 to 24 12 to 24
Consumption at 18 V (mA) 350 520 500 700
Consumption at 18 V with USB (mA) 510 680 670 870
Wireless frequency ranges (MHz) - -
2412-2482
5150-5350
2412-2482
5150-5350
Maximum transmission EIRP (dBm) - - 20 20
Wireless standard - - IEEE 802.11abgn IEEE 802.11abgn
PoE power supply IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af
Dimensions (mm) 217x144x36 288x187x36 217x144x36 288x187x36
Weight (g) 770 1200 770 1200
Case material ABS ABS ABS ABS
Operating temperature (°C) 0 to 35 0 to 35 0 to 35 0 to 35
Operating humidity without condensation (%) 93 93 93 93
Recommended power supply VAS/101 VAS/100.30 VAS/101 VAS/100.30
Characteristics of network interface
Ethernet IEEE 802.3 10/100 Base T(X), auto speed, auto half/full duplex mode, auto MDI/MDI-X.
❼ Connector not used
❽ Socket for connecting device to LAN or LAN PoE network.
❾ Warning LEDs
Green LED on = trac on Ethernet network
Yellow LED o = network speed 10Mb
Yellow LED on = network speed 100Mb
❿ Terminal board
+
Local power supply input
–
I1
Input 1 (AL)
I2
Input 2 ( )
O1
Output 1 (for future use)
O1
Output 2 (for future use)
C
Common

CAME TS07 Specifications

General

Brand	CAME
Model	TS07
Category	Control Panel
Language	English
