CAME v6000 - Installation Preparation; Preliminary Checks

210115
365
3020 ÷ 4020
p.
5
5 - Manual
FA00047-EN
FA00047-EN v.
1
1- 05/2015- © Came S.p.A. - The manual's contents may be edited at any time without notice.
001V06003 Chain guide T = 4.02 m.
- Spring-balanced overhead doors up to 3.25 m in height.
- Sectional* doors up to 3.20 m in height.
001V06005 Belt guide T = 3.02 m.
Counter-balanced overhead doors up to 2.4 m in height
- Counter-balanced overhead doors up to 2.25 m in height
- Sectional* doors up to 2.20 m in height.
001
001V06006 Belt guide T = 3.52 m.
- Counter-balanced overhead doors up to 2.75 m in height
- Sectional* doors up to 2.70 m in height.
001V06007
Belt guide T = 4.02 m.
- Spring-balanced overhead doors up to 3.25 m in height
- Sectional* doors up to 3.20 m in height.
Optional accessories
001
001V201 Transmission arm for counter-balanced overhead doors.
001V121 Pull-cord release device to apply onto handle.
☞
For sectional doors, see the APPLICATION EXAMPLES paragraph.

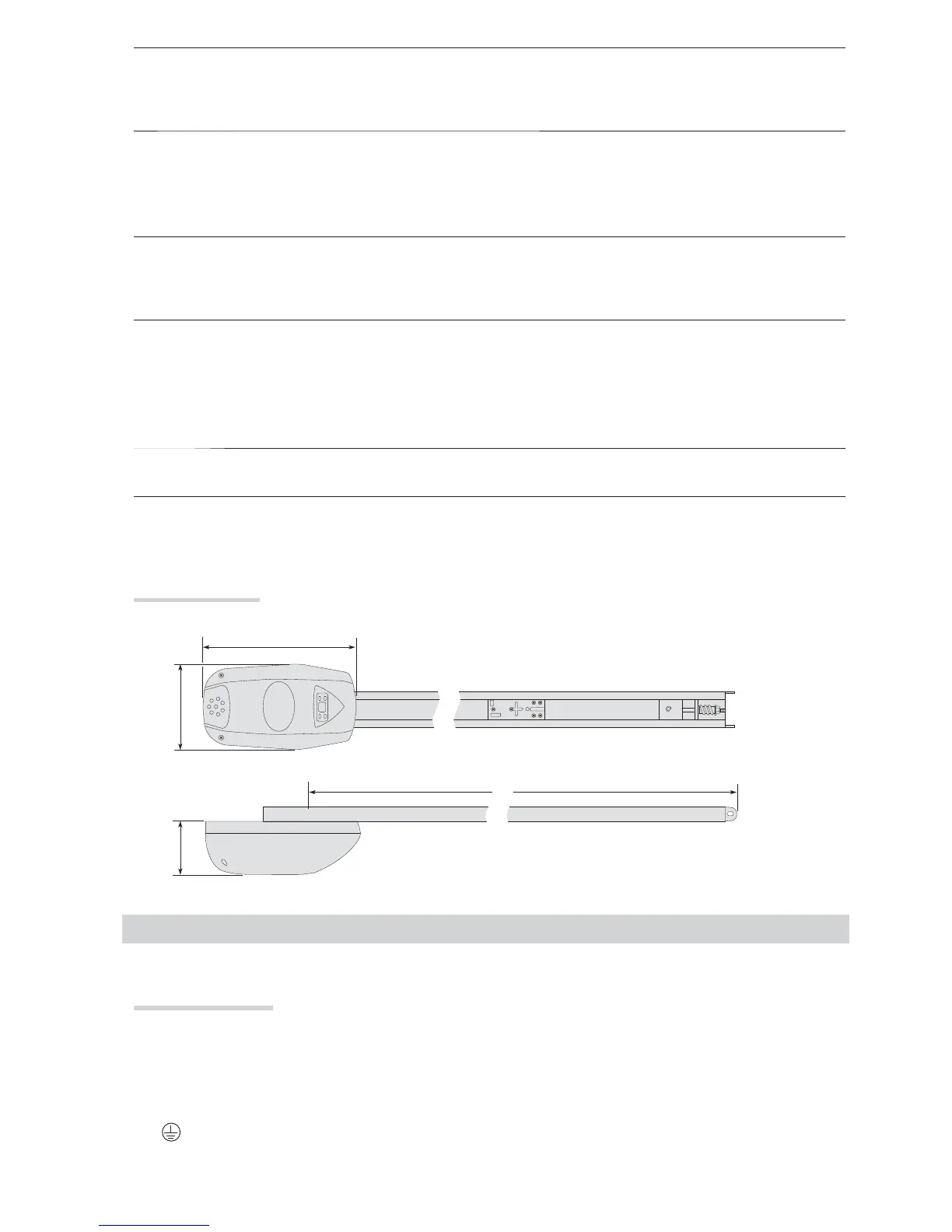

Dimensions (mm)
GENERAL INSTRUCTIONS FOR INSTALLING
⚠
Only skilled, qualified staff must install this product.
Preliminary checks
⚠
Before beginning, do the following:
• Have in place a suitable dual pole cut-off switch with minimum contact openings of 3 mm, and section the power
supply;
• Set up suitable tubes and conduits for the electric cables to pass through, making sure they are protected from any
mechanical damage;
•
Make sure that any connections inside the container (ones that ensure continuity to the protection circuit) are
fitted with additional insulation with respect to those of other electrical parts inside;
