RX
TX
6
1
5
7
6
2
3
4
8
p.
6
6 - Manual
FA00047-EN
FA00047-EN v.
1
1- 05/2015 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
Check that the door is properly balanced; when stopped at any interim point, it should maintain its balance and
position;
If the door is fitted with a pedestrian door, it is obligatory to add a safety switch, connected to the STOP INPUT, to
prevent the operator from moving when the pedestrian door is open.

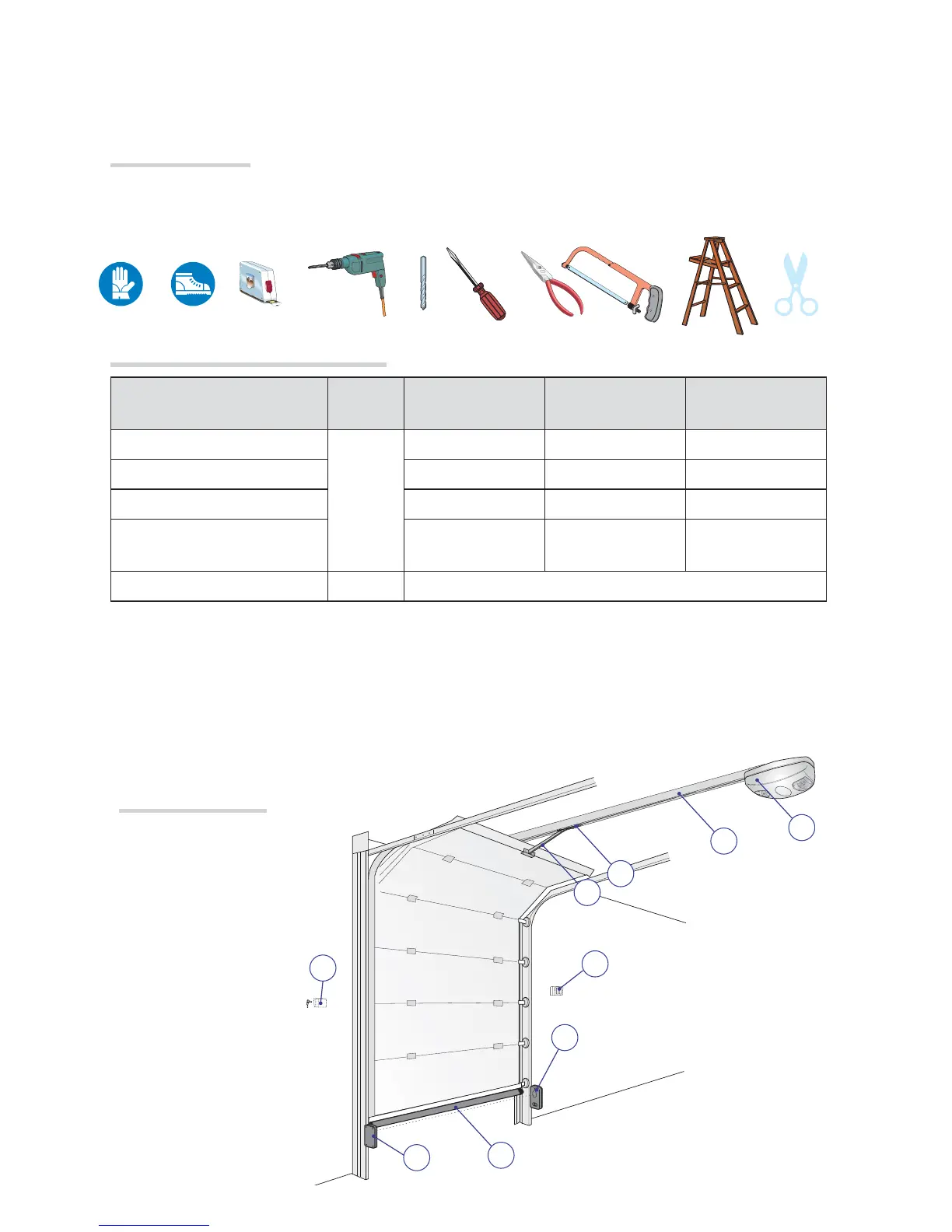

Tools and materials
Make sure you have all the tools and materials you will need for installing in total safety and in compliance
with applicable regulations. The figure shows some of the equipment installers will need.
Cable types and minimum thicknesses
Connection
Cable
type
Cable length
1 < 10 m
Cable length
10 < 20 m
Cable length
20 < 30 m
Power supply
FROR
CEI 20-
22
CEI EN
50267-
2-1
3G x 1.5 mm
2
3G x 2.5 mm
2
3G x 4 mm
2
Photocell transmitters 2 x 0.5 mm
2
2 x 0.5 mm
2
2 x 0.5 mm
2
Photocell receivers 4 x 0.5 mm
2
4 x 0.5 mm
2
4 x 0.5 mm
2
Command and control
devices
2 x 0.5 mm
2
2 x 0.5 mm
2
2 x 0.5 mm
2
Antenna connection RG58 max. 10 m
If cable lengths differ from those specified in the table, establish the cable sections depending on the actual
power draw of the connected devices and according to the provisions of regulation CEI EN 60204-1.
For multiple, sequential loads along the same line, the dimensions on the table need to be recalculated according
to the actual power draw and distances. For connecting products that are not contemplated in this manual, see
the literature accompanying said products
Standard installation
1. Operator with receiver
2. Slide guide
3. Release device
4. Transmission arm
5. Key-switch selector
6. Photocells
7. Keypad
8. Sensitive safety-edge
