H - 100 mm
H
H - 100 mm
H
(
(
M6x80
M6
󱤏
󱤎
10 ÷ 20
V201
20 ÷ 30
max 330
󱵤󱵢 󱵣
(mm) (mm) (mm)
p.
7
7 - Manual
FA00047-EN
FA00047-EN v.
1
1- 05/2015- © Came S.p.A. - The manual's contents may be edited at any time without notice.

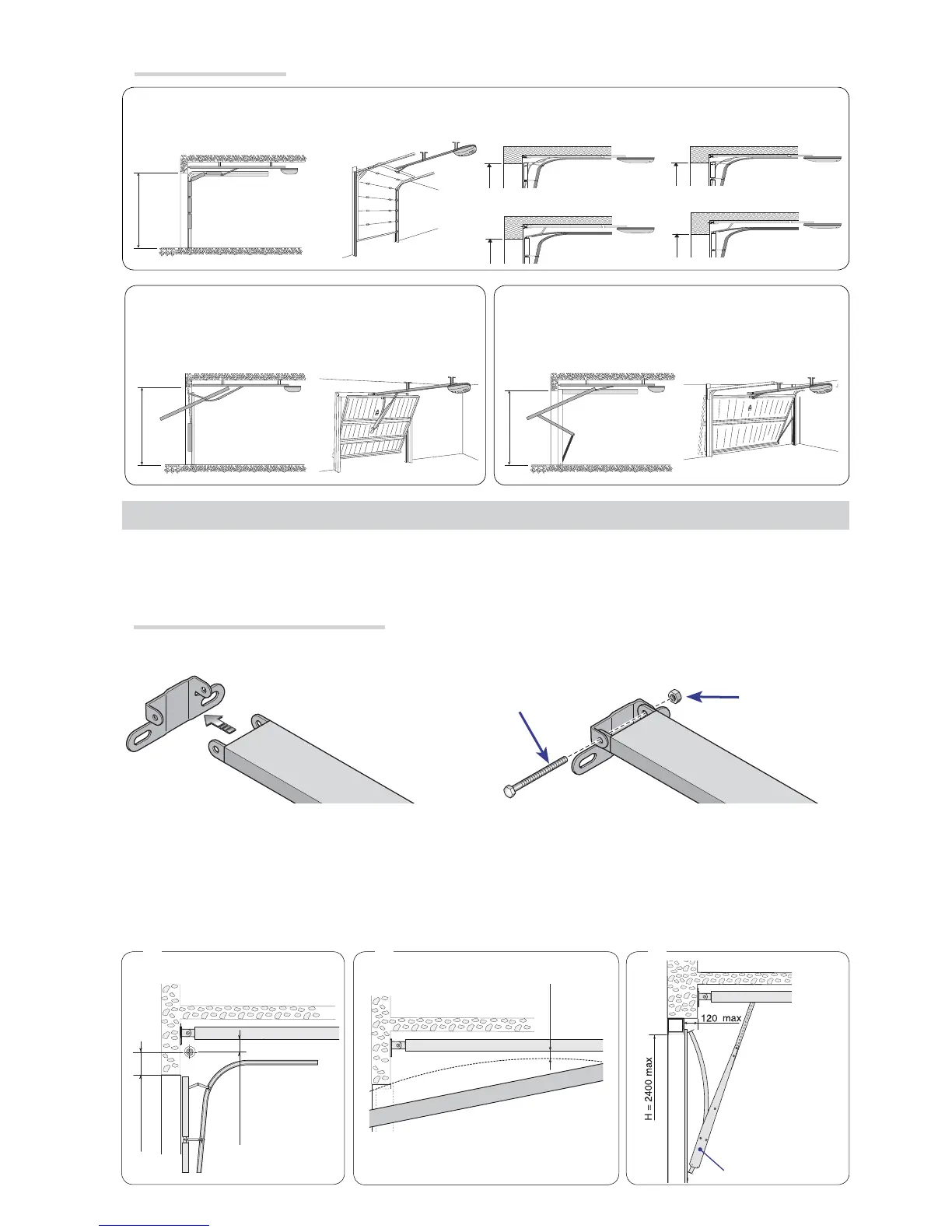

Applicative examples
* single-guide sectional
door
* double-guide sectional
door
SECTIONAL DOOR
COUNTERBALANCED OVERHEAD DOOR,
partially retracting and protruding
SPRING-BALANCED OVERHEAD DOOR,
fully retracting and protruding
INSTALLATION
⚠
The following illustrations are just examples, in that the space available for fitting the operator and accessories
varies depending on the overall dimensions. It is up to the installer to find the most suitable solution.
Assembling the transmission guide
Fitting the brace to the transmission guide 󱤎use the supplied nut and bolt 󱤏.
Position the slide guide in the following way:
Afor sectional doors exceeding the overall dimensions of the spring-pole brace.
Bfor overhead doors between 10 and 20 mm from the apex point of the leaf's slide arc.
Cfor partially retracting protruding counter-balanced overhead doors, use the V201 arm (see attached
technical documentation).
