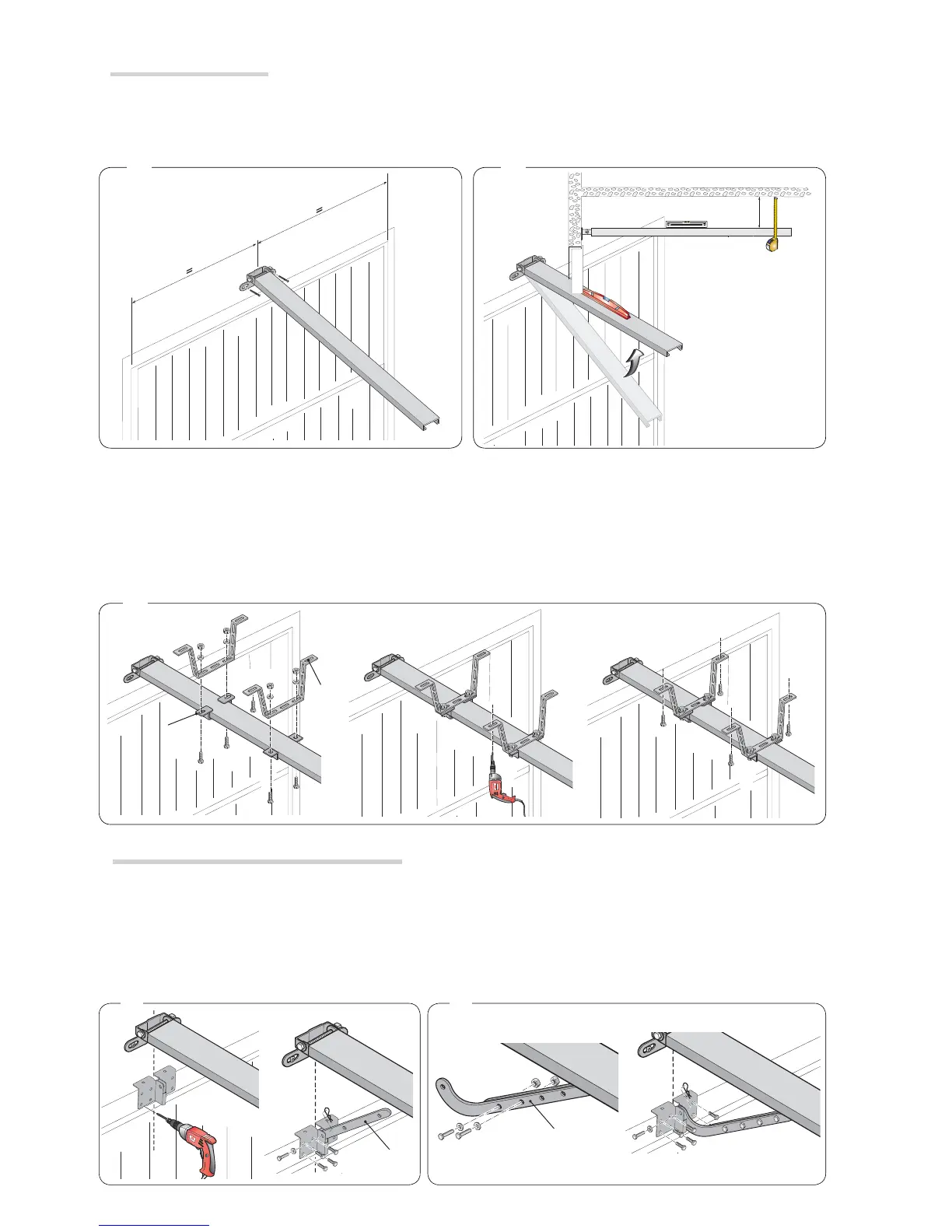

Fitting the slide guide
Fit the slide guide to the center of the door opening, using suitable screws.
ELift the guide and place it horizontally to measure the distance from the ceiling and then choose the type of
fastening to use.
Install the support braces and the U-shaped brace onto the guide.
Bend the perforated fl at tabs so they fi t snugly and so as to compensate for the distance between the guide
and ceiling.
Fasten the fl at tabs to the support braces and to the U-shaped brace using the supplied screws and washers.
Drill the ceiling so the holes match those on the fl at tabs.
Fasten the fl at tabs to the ceiling using suitable dowels and screws.
Fasten the door anchoring brace to the upper transom so that it is perpendicular to the guide. Either use the
supplied screws or other suitable ones.
Fasten the transmission arm to the door anchoring brace using supplied linchpin.
If mounting the curved lever fi t it to the transmission arm by using the supplied nuts and bolts
Fitting the transmission arm to the door
