CAME v6000 - Operator Mounting to Guide

󱵪
󱵭
p.
9
9 - Manual
FA00047-EN
FA00047-EN v.
1
1- 05/2015- © Came S.p.A. - The manual's contents may be edited at any time without notice.

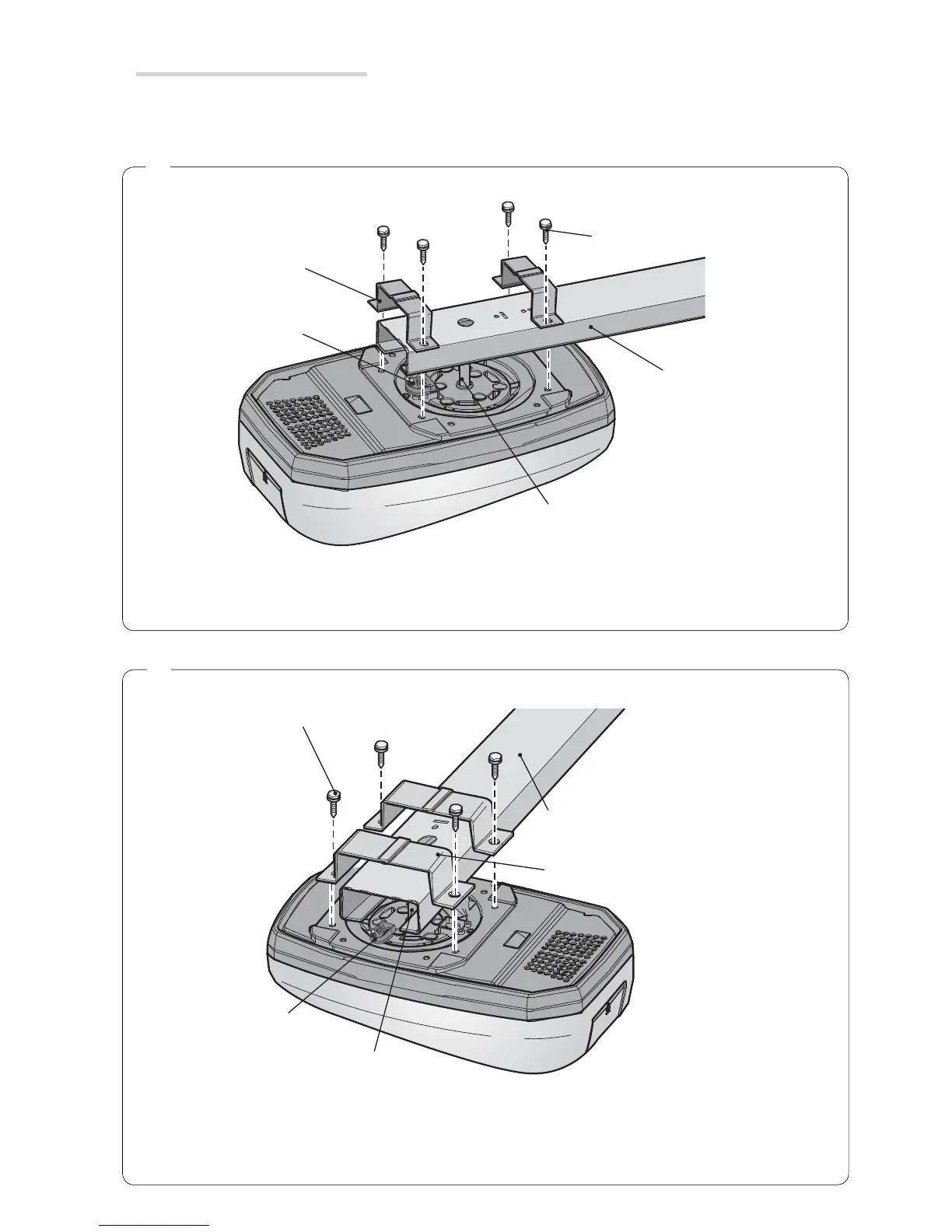

Fitting the operator to the guide
Fit the adapter to the drive shaft.
The operator can be fi tted onto the guide: either in standard position 󱵪 or at a right angle 󱵭.
⚠ If fi tting it at a right angle, before installing it, you will have to move the micro switch (see paragraph on
Moving the micro switch).
Guide
Drive shaft with adapter
Self-drilling 6 x 15 screw
U-shaped brace
Micro
Self-drilling 6 x 15 screw
U-shaped brace
Guide
Drive shaft with adapter
Micro switch
