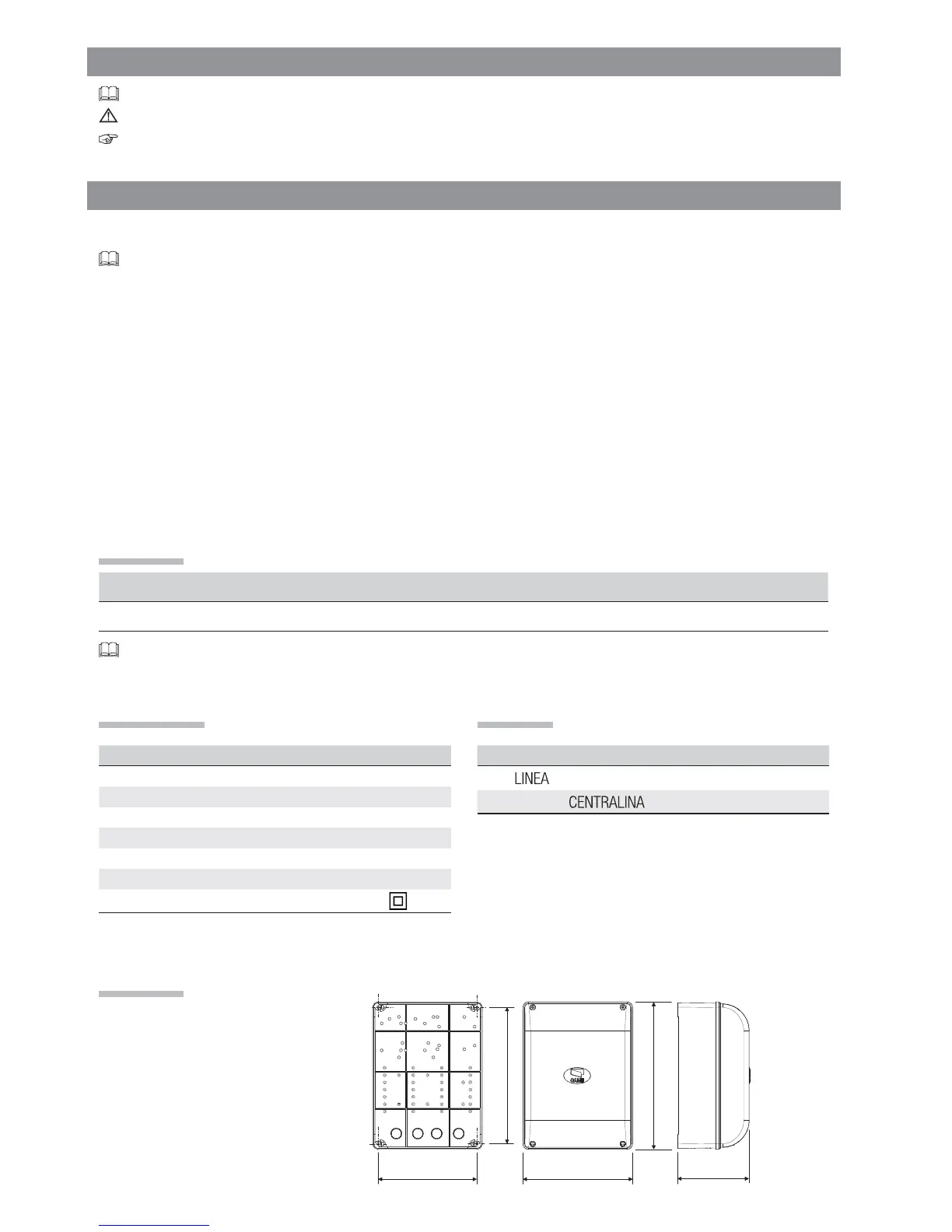

p. 4 - Manual FA01078 -E N - 02/2018 © CAME S.p.A. - Translation of the original instructions
Intended use
Model Operator
ZA3N ATI - FAST - FERNI - FROG - KRONO
Any installation and/or use other than that specified in this manual is forbidden.
Technical data
Type ZA3N
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Absorption when idle (mA) 60
Max. power* (W) 600
Casing material ABS
Operating temperature (°C) -20 to +55
Insulation class
* Overall power of the connected motors
Dimensions
Fuse table
To protect Fuse type
Line (
) 5 A-F
Control board (
)
3.15 A-F
DESCRIPTION
Multifunction control panel for swing gates.
The control devicesand accessories run on 24V.
The accessories must not exceed 20W overall.
Allthe connection are quick-fuse protected (see table).
The card providesand controls the following functions:
- automatic closing following an opening command;
- pre-flashingby the movement indicator-light;
- obstructiondetection when gate is not moving at any point;
- adjustmentof the connected operator's torque;
- opening jolt.
The settablecontrol modes are:
- opening/closing;
- opening/closingin maintained action;
- partial opening;
-total stop.
The photocells, afterdetecting an obstruction, may trigger:
- reopening ifthe gate is closing;
- reclosing or partial stop if gate is opening;
- partial stop if gate is opening.
Specific trimmersregulate:
- the automaticclosing's intervention time;
- gearmotor M2'sclosing delay;
- the operating time.
You can also connect:
-
gate open warning lights; - cycle lights;
- electric lock.
KEY
This symbol shows which parts to read carefully.
This symbol shows which parts describe safety issues
This symbol shows which parts to tell users about.
The measurements, unless otherwise stated, are in millimeters.
