CAME ZA3N User Manual

Delta Dir/DeltaS
<- C1 ->
<- CX ->
p. 9 - Manual FA01078 -E N - 02/2018 © CAME S.p.A. - Translation of the original instructions

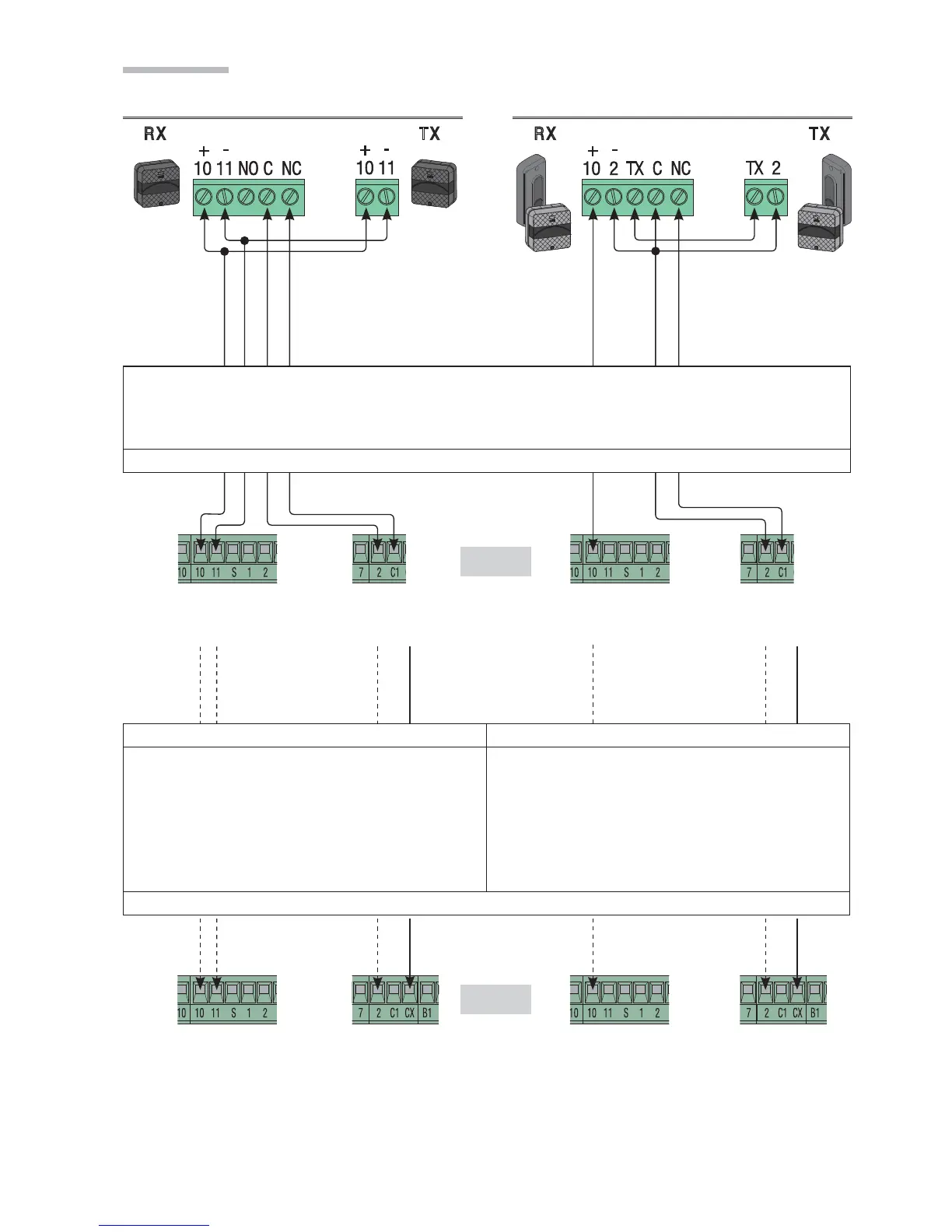

Connection for reopening during closing (N.C. contact). - With safety devices such as photocells, sensitive safety-
edges or other devices. During closing, the contact triggers an inversion of movement until the gate is completely open.
If unused, set DIP-switch 9 to ON.
Safety devices
with DIP-switch 8 OFF - DIP-switch 10 OFF with DIP-switch 8 OFF - DIP-switch 10 ON
Connection for reclosing during opening (N.C. contact).
- With safety devices such as photocells, sensitive safety-
edges or other devices. During the opening phases, the
contact triggers an inversion of movement until the gate is
completely closed.
Partial-stop connection (N.C. contact). - With safety
devices such as photocells, sensitive safety-edges or
other devices. Stops movement and sets up for automatic
closing.
If unused, disable input CX with DIP-switch 8 set to ON.
