10 11 S 1 2 3 3P 4 5 7 2
UVWXYEE3
p. 8 - Manual FA01078 -E N - 02/2018 © CAME S.p.A. - Translation of the original instructions

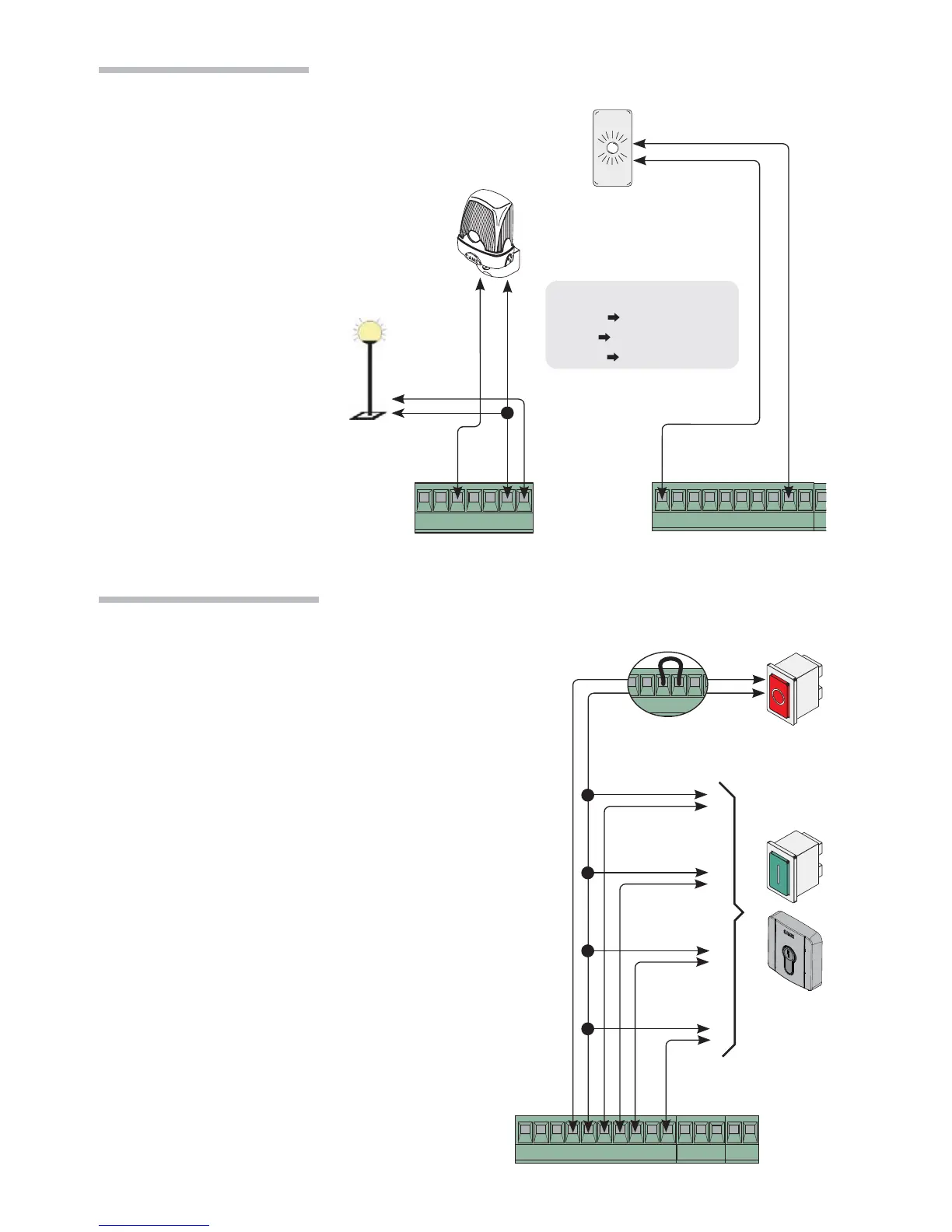

E_W CONTACTS
rated for 230V - 25W max.
E_E3 230V - 60W max.
10_5 24V - 3W max.
Key-switch selector and/or closing button (N.O. contact).
- For commanding the gate to stop.
Key-switch selector and/or partial opening button (N.O. contact).
- For commanding thepartial opening of a leaf (gearmotor M2) for pedestrian
passages.
Key-switch selector and/or command button (N.O. contact).
- Forcommanding the opening and closing of the gate. By pressing the
button or turning the selector key, the gate reverses its movement or stops,
depending on the selection made on the DIP-switches (see selecting functions,
DIP-switches 2 and 3).
Key-switch selector and/or opening button (N.O. contact).
- For commanding the gate to open.
Stop button (N.C. contact).
- For commandingthe gate to stop while excluding the automatic-closing time
cycle. To resume movement, press a button on the control or the transmitter
button.If unused, short-circuit terminals 1-2.
Command and control devices
Cycle light connection.
- This lightilluminates the driveway and
stays lit from the moment in which the
gate leaves begin opening and until the
gate is completely closed (including the
automatic closing time). In case the
automatic closing in not inserted, it stays
lit only during the movement.
Movement warning fl ashing-light
- Itfl ashes when the gate is opening and closing.
Gate open warning-light
- For warning that the gate is open. It stops fl ashing when the gate closes.
Warning and lighting devices
