p. 5 - Manual FA01078 -E N - 02/2018 © CAME S.p.A. - Translation of the original instructions
* Included in thepackage containing the 230 V FROG gearmotor. Connect them to the black cables (M1) and the
red cables (M2), as set up on the card. if pairing with Ati, Fast, Ferni and Krono gearmotors, these remain unused (the
condensers are connected internally).
Colour of thetransformer and condenser cables:
white; red; black; orange; purple; light blue.

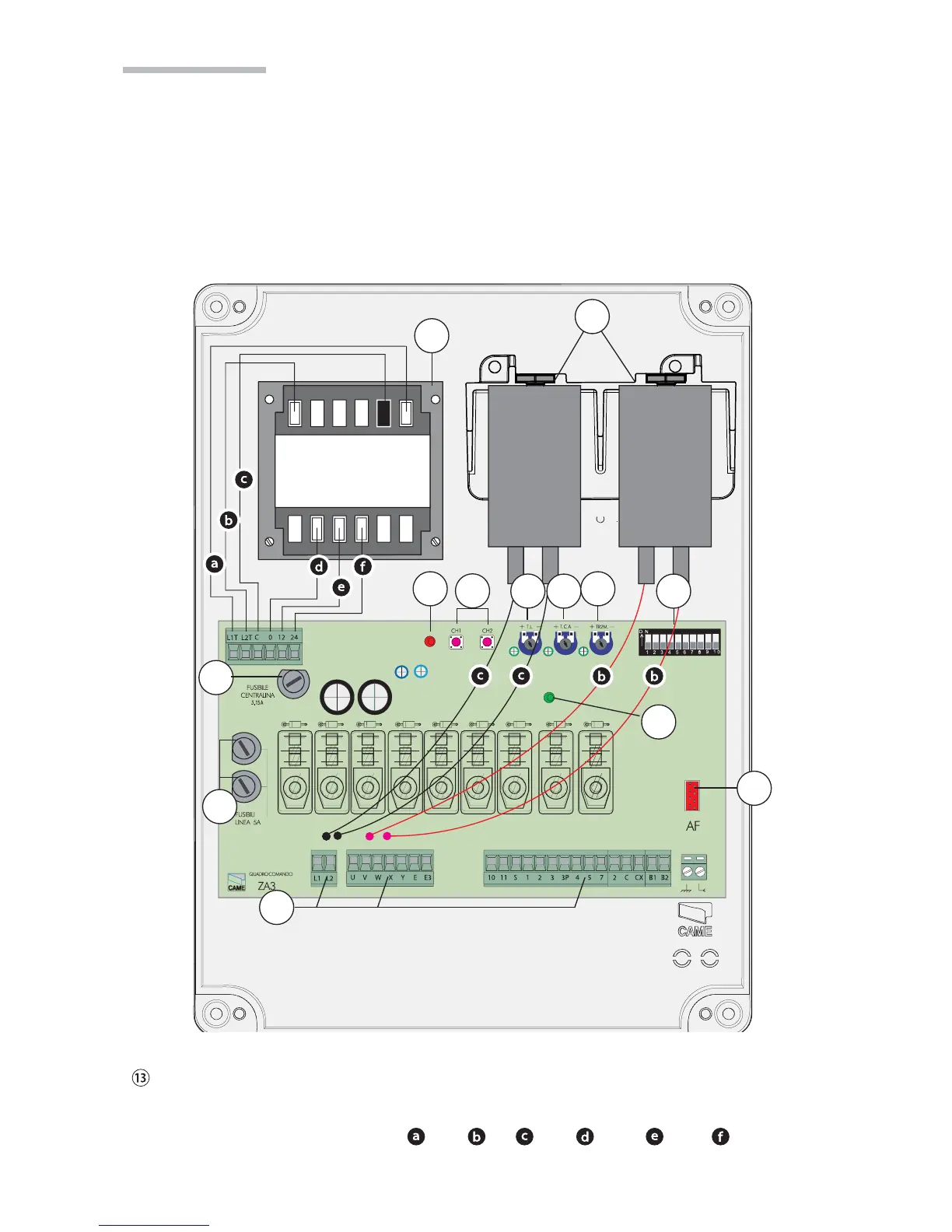

Description of parts
1. Connection terminals
2. Control board fuses
3. Fuse for control devices and accessories
4. LED warningthat 24 V are running
5. Radiocode memorizing buttons
6. Trimmerfor adjusting the operating time
7. Trimmer for adjusting the automatic closing time
8. Trimmer for adjustingthe closing delay on motor 2,
and, the partial opening
9. Functionsselector with ten DIP-switches
10. Radio-frequency card slot(see table)
11. Alert LED
12. Torque limiter
13. Condensers*
