Keep button CH1 pressed on the control board (the warning LED will fl ash),
with a transmitter button send the code , the LED will stay on to tell you that
memorization has been successful.
Perform the same procedure with button CH2, associating it to another button
on the transmitter.
CH1 = Channel for direct commands to a functions of the gearmotor's control board
("open only / " open-close-invert" command or "open-stop-close-stop",
depending on the selection made on DIP-switches 2 and 3).
CH2 = Channel for direct command to an accessory device connected to B1-B2.
Memorization (max. 25 different transmitters)
To vary the motor torque, move the show
faston to one of the four positions:
1 min., 4 max..
Adjusting the motor torque

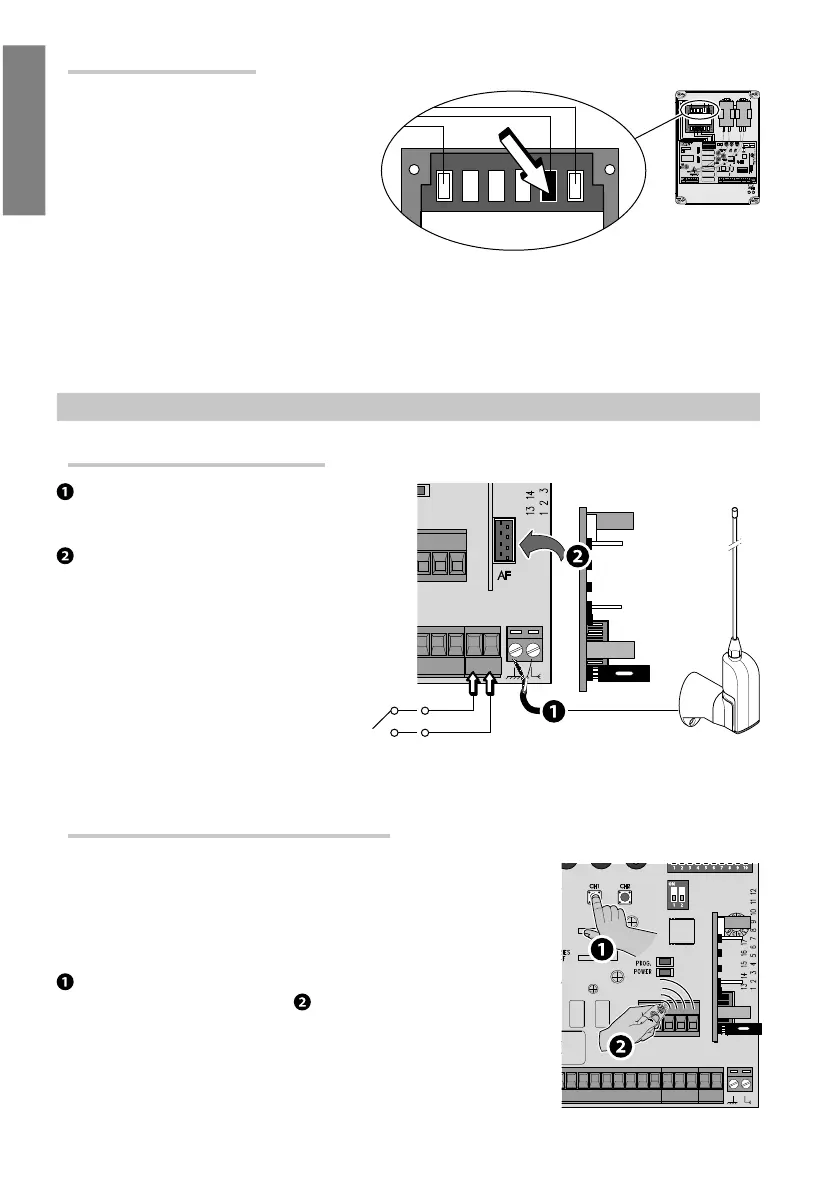

Fit the radio frequency card into the control board
AFTER CUTTING OFF THE MAIN POWER SUPPLY
N.B.: The control board recognizes the radiofrequency
card only when it is powered up.
Antenna and AF radiofrequency card
Connect the antenna's RG58 cable to the
corresponding terminals.
Possible connection of a second operator, that can
be activated by the second channel of
the radio circuit (contact NO). Contact rated for:
5A-24 V DC
ACTIVATING THE RADIO CONTROL

CAME ZA3P Specifications

General

Motor power supply	230 V AC
Maximum power	800 W
Protection rating	IP54
Operating temperature	-20°C to +55°C
Power supply	230V AC ±10%, 50/60Hz
Functions	Automatic closing
